Mimosa » 100-00111

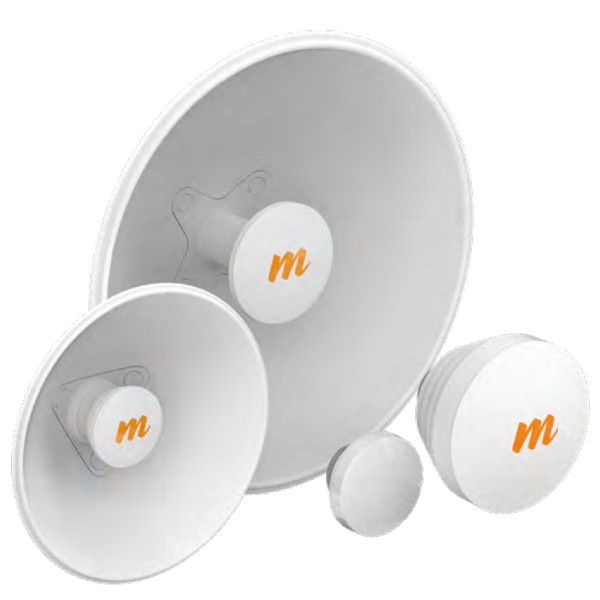

Mimosa C6x, Radio 4.9-6.4GHz for PTMP/PTP (uses with N5-X** antennas)
[2911][100-00111]
Price: 184,45€
 Order or Qty  Price
 > 500€  5+   182,61€
 > 1000€  10+   180,76€
 > 2000€  20+   178,92€
 > 5000€  40+   177,07€
 > 10000€  100+   175,23€
Prices exclude VAT

Mimosa C6x, Radio 4.9-6.4GHz for PTMP/PTP (uses with N5-X** antennas)

Ships in:
3-5 working days
Quantity: 99
Order Qty:
EAN:10000111

C6x - Wifi 6E client unit

Building on the popular X-series family of modular directional antenna options for flexible distance deployments, the new rugged C6x sets a new bar for affordable speed and interference reduction.

With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands1 , the C6x achieves extremely low latency speeds of up to 1.75 Gbps and high reliability with new noise fighting features.

Supporting the Wi-Fi 5/6/6E standards, the C6x can be deployed as a standard Wi-Fi interoperable client, and provide smooth transitioning in the field for legacy Mimosa and standard Wi-Fi deployments.

The C6x can be used as a PTMP (point-to-multipoint) client radio, or PTP (point-to-point) backhaul (Additional purchase of a PTP license key required for PTP operation)

Performance
Max Throughput: 1.75 Gbps IP aggregate UL/DL (2402 Mbps PHY)
Wireless Protocols: WiFi Interop; Auto-TDD (future release); PTMP TDMA (future release)
Modes: Default mode: PTMP client, 1.75 Gbps
License key purchase modes: PTP Backhaul
Radio
MIMO & Modulation: 2x2, PTMP MU-MIMO client support, OFDMA, BPSK-1024QAM
Bandwidth: 20/40/80/160 MHz channels, tunable to 5 MHz increments
Frequency Range: 5150–6425 MHz (restricted by country of operation)
Max Output Power: 27 dBm
Sensitivity -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption: 20 W
System Power Method: Passive PoE
PoE Power Supply: Passive POE compliant, 48–56 V (PoE injector not included)
Physical

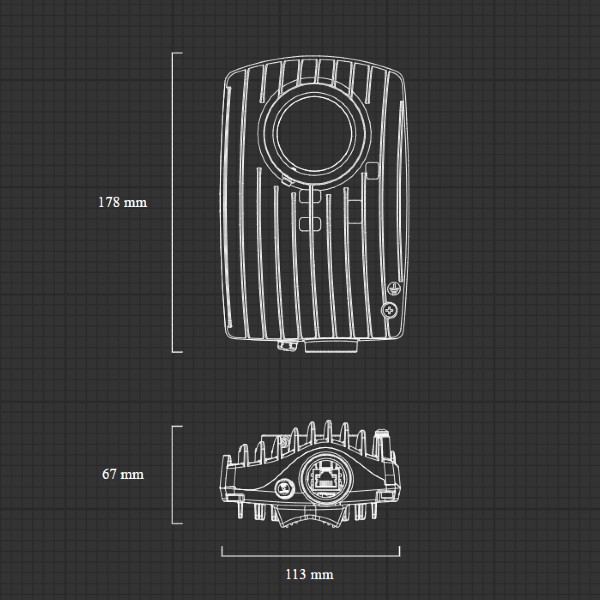

Dimensions: 178mm x 113mm x 67mm
Weight: 0.7Kg
RF Connector Type:  X-series twist-on
Enclosure Characteristics:  Die-cast aluminum, UV stabilized paint, with outdoor UV stable plastic radome lens
Mounting:  Dual attached pole mount straps
Grounding:  Ground lug
Environmental
Outdoor Ingress Protection Rating:  IP67
Operating Temperature:  -40°C to +55°C
Operating Humidity:  5 to 100% condensing
Operating Altitude:  4,420 m (14,500’) maximum
Shock and Vibration:  ETS 300-019-2-4 class 4M5
Regulatory and Compliance
Approvals:
FCC Part 15.407; IC RSS210; CE (RED, EMCD, LVD, RoHS);ETSI 301 893/302 502
RoHS Compliance:  Yes
Safety:  EN 62638-1
Features
Gigabit Ethernet:  10/100/1000-BASE-T
Management Services:
MMP support; Netconf (future support); SNMPv2c/v3; Syslog;
HTTPS; HTML 5 based Web GUI; IPv4 and IPv6
Smart Spectrum Management:
Active scan monitors/logs ongoing RF interference across all channels
Dynamic auto-optimization of channel and bandwidth use
Security: AES; RADIUS; 802.1x authorization
QoS:
WiFi Interop Mode WMM; SRS mode supports 4 user configurable QoS levels
supporting both CBWFQ and PQ
VLAN: Q-in-Q, double tagging, management VLAN, PTMP per client VLAN


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
