Teltonika » PR1KSG30

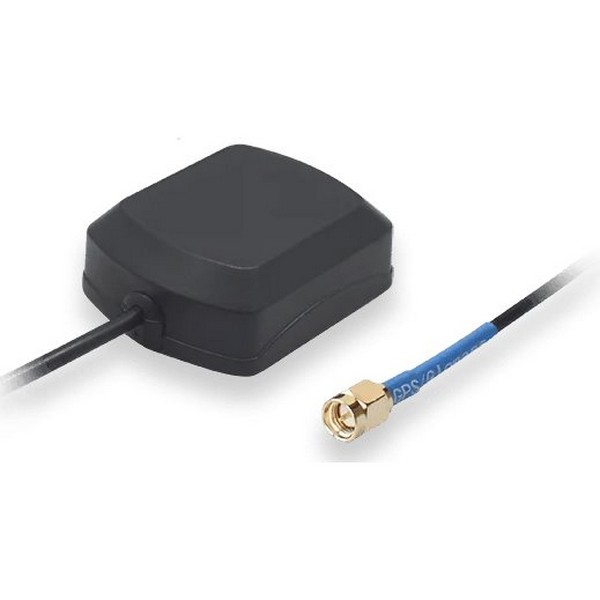

Teltonika GNSS Adhesive SMA Antenna
[2619][PR1KSG30]
Price: 7,24€
 Order or Qty  Price
 > 500€  5+   7,17€
 > 1000€  10+   7,09€
 > 2000€  20+   7,02€
 > 5000€  40+   6,95€
 > 10000€  100+   6,88€
Prices exclude VAT

Teltonika GNSS Adhesive SMA Antenna
Ships in:
3-5 working days
Order Qty:

Teltonika 003R-00250

GNSS ADHESIVE SMA ANTENNA for the band of 1575.42-1602 MHz and 2 dBi gain, 3m cable lenght, type of mounting - adhesive. Recommended for RUT955/RUTX09/RUTX11/TRB245

Product Links:
Product Page Product Page   Datasheet Datasheet

Specifications:
Frequency 1575.42-1602 MHz
Polarization RHCP
Gain 2 dBi
V.S.W.R < 1.5
Impedance 50 Ω
Max Axial Ratio 3 dB
LNA Gain 28±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 2.2 - 5 VDC
Current Consumption < 15 mA
LNA V.S.W.R < 2.0
Cable RG174, 3000 mm
Connector SMA Male
Mounting Method Adhesive
Operating Temperature -40 to +85
Operating Relative Humidity 95 % max
RoHS Compliant YES

Package Contents:
1 x 003R-00250

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
