Teltonika » 003R-00235
Teltonika GNSS Adhesive FAKRA Antenna
[003R-00235]
Price: 8,86€
 Order or Qty  Price
 > 500€  5+   8,77€
 > 1000€  10+   8,68€
 > 2000€  20+   8,59€
 > 5000€  40+   8,51€
 > 10000€  100+   8,42€
Prices exclude VAT

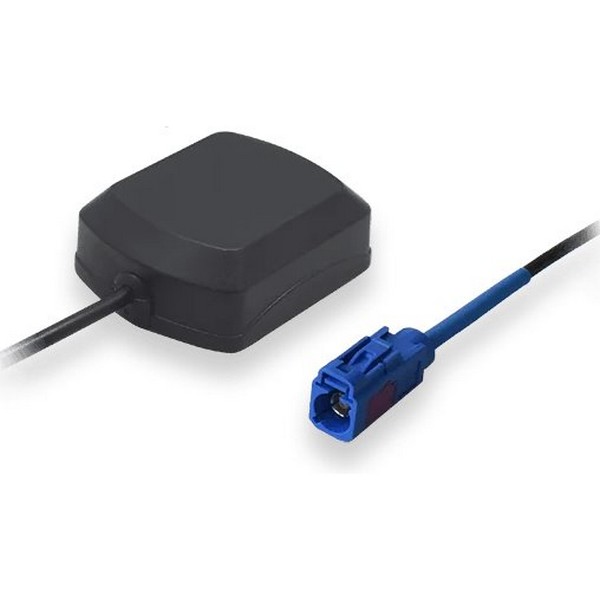

Teltonika GNSS Adhesive FAKRA Antenna

Ships in:
3-5 working days
Order Qty:

Teltonika 003R-00235

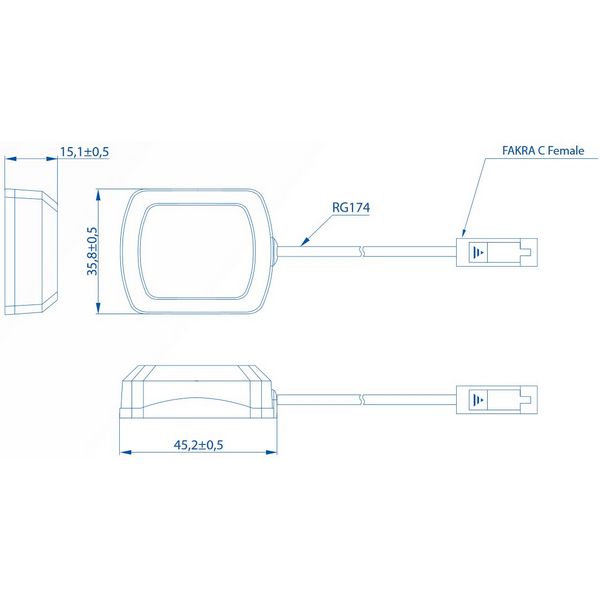

GNSS ADHESIVE SMA ANTENNA for the band of 1575.42-1602 MHz and 2 dBi gain, 3m cable lenght, FAKRA C Female straight, type of mounting - adhesive. Recommended for RUT850.

Specifications:
Frequency 1575.42-1602 MHz
Polarization RHCP
Antenna Gain 2 dBi
Antenna V.S.W.R < 1.5
Impedance 50 Ω
Max Axial Ratio 3 dB
LNA Gain 26±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 2.2-5.0 VDC
Current Consumption 5-15 mA
LNA V.S.W.R < 2.0
Cable RG174, 3000 mm
Connector FAKRA C Female straight
Mounting Method Adhesive
Operating Temperature -40 to +85
Operating Relative Humidity 95 % max
RoHS Compliant YES


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
