Teltonika 003R-00177

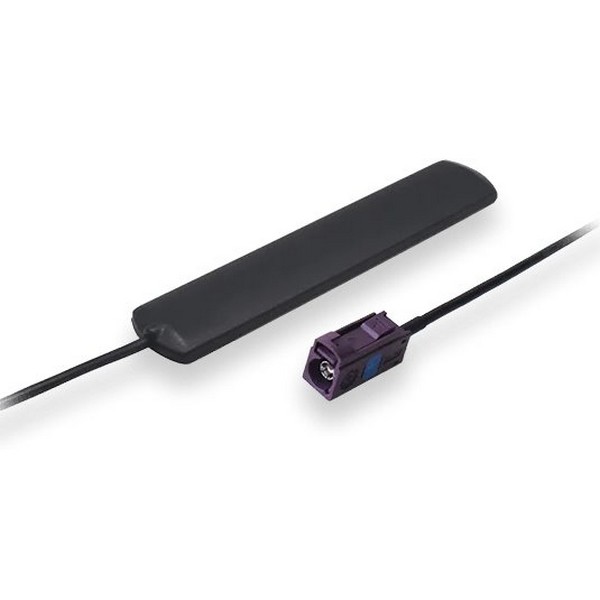

Adhesive LTE antenna with 3.5dBi gain and 2.5m cable terminated with FAKRA connector for 690/900/1800/1900/2100/2700 MHz bands.
Self-adhesive 3M tape is used for attachment.
The antenna is suitable for the Teltonika RUT850 router, or others that are equipped with a FAKRA connector for connecting an external antenna.
|
Specifications: |
|
Frequency |
690/900/1800/1900/2100/2700 MHz |
|
Polarization |
Vertical |
|
Gain |
3.5 dBi |
|
V.S.W.R |
< 2.0 |
|
Impedance |
50 Ω |
|
Cable |
RG174, 2500 mm |
|
Connector |
FAKRA D Female straight |
|
Mounting Method |
Adhesive (3M tape) |
|
Operating Temperature |
-40 to +85 |
|
Operating Relative Humidity |
100 % max |
|
RoHS Compliant |
YES |
