Teltonika TRB255 - INDUSTRIAL M2M GATEWAY
TRB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485 & Ethernet interfaces.
This industrial LTE Cat M1 & NB-IoT gateway is backward compatible to EGPRS (2G) networks. It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options.
TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more.
This product is compatible with the Teltonika Networks Remote Management System (RMS).
|
Specifications: |
|
Connectors and Interfaces |
|
Serial port: |
RS-232, RS-485 |
|
RF connectors: |
(2) SMA male |
|
LAN speed: |
(1) 10/100Mbps |
|
SIM slots quantity: |
2 |
|
Hardware |
|
RAM [MB]: |
64 |
|
CPU: |
QCA9531 |
|
CPU frequency [MHz]: |
650 |
|
Storage internal size [MB]: |
16 |
|
Physical characteristics |
|
Buttons: |
Reset |
|
Operating temperature [°C]: |
-40 up to 75 |
|
Weight [g]: |
165 |
|
Depth [mm]: |
74 |
|
Width [mm]: |
83 |
|
Height [mm]: |
25 |
|
Power |
|
Power type: |
DC terminal |
|
Max. power consumption [W]: |
5 |
|
Power via connector/terminal: |
9 .. 30V DC |
|
Software |
|
Operating system: |
RutOS (OpenWrt based Linux OS) |
|
Wireless features |
|
Wireless frequency: |
2G (GSM), 3G (GSM), LTE |

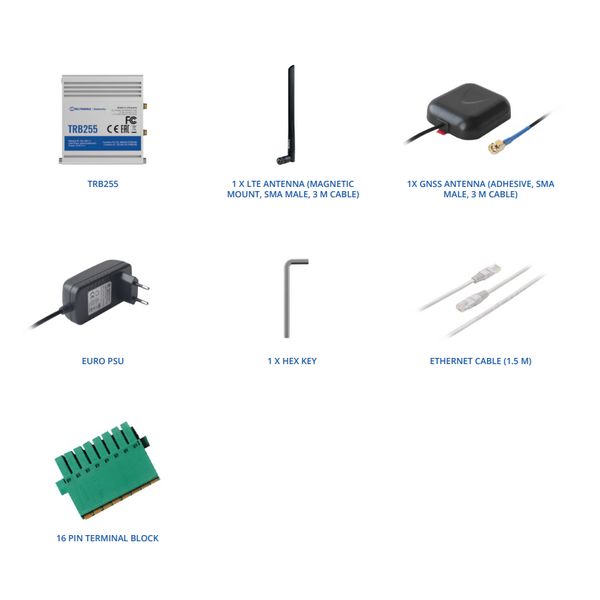

| Package Contents: |
|---|
| 1 x TRB255
|
| 1 x Euro PSU
|
| 1 x Mobile antenna (swivel, SMA male)
|
| 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
|
| 1 x 16 pin terminal block
|
| 1 x hex key
|
| 1 x Ethernet cable (1.5 m)
|
| 1 x QSG (Quick Start Guide)
|
| 1 x Packaging box |
|
