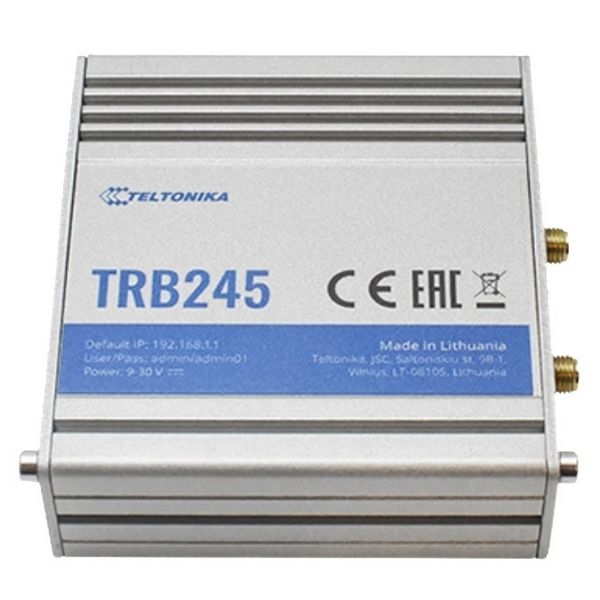

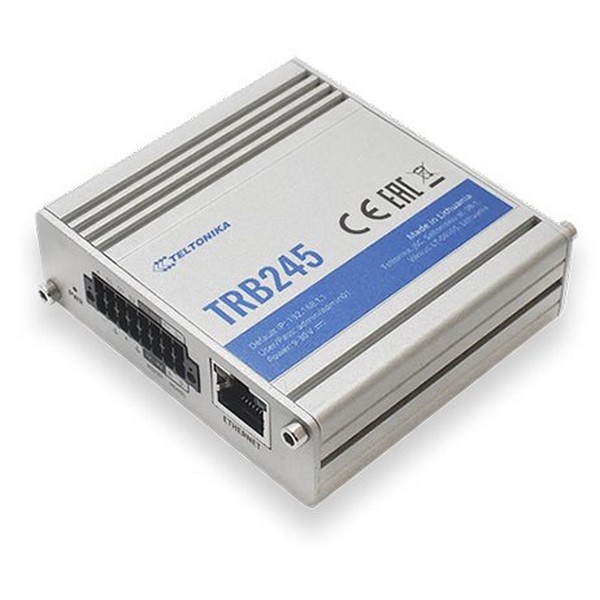

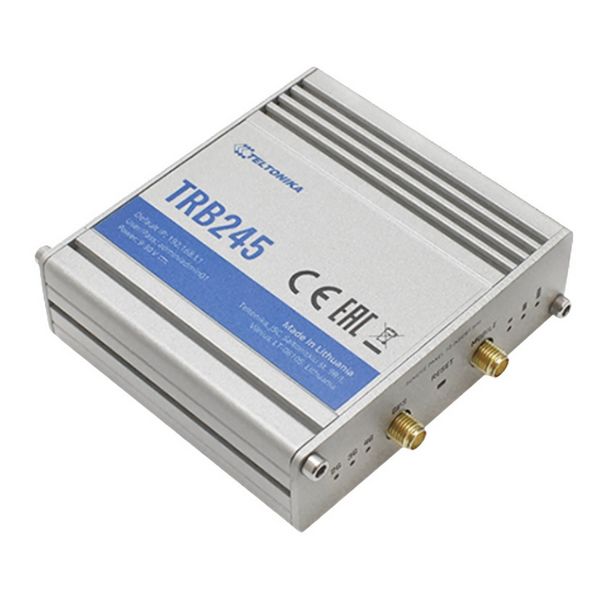

Teltonika TRB245 - INDUSTRIAL M2M LTE GATEWAY
Industrial LTE Cat 4 gateway packs all essential features for any industry: fast and reliable internet connection, combination of Ethernet and serial communication, secure power connector, I/O ports, and time synchronization services.
TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces.
A wide range of software features like SMS control, Firewall, OpenVPN, IPSec, RMS ensures that data can be reached securely.
Dual SIM functionality with auto-failover and a backup WAN ensure stable connectivity even if the primary connection is lost.
|
Specifications: |
|
Connectors and Interfaces |
|

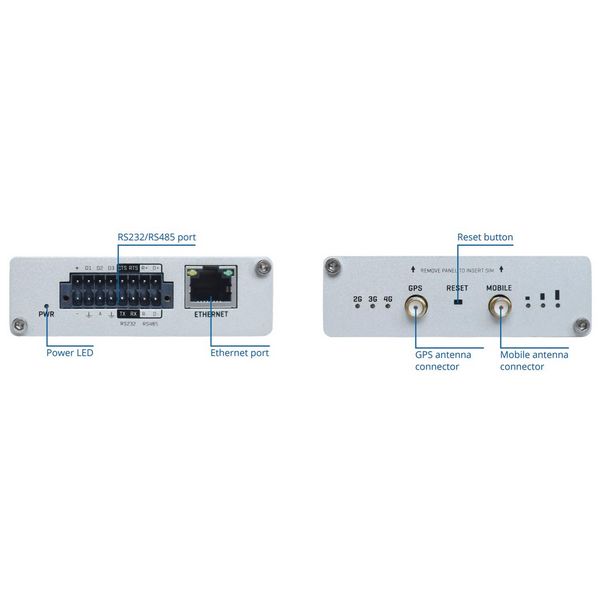

Serial port: |
RS-232, RS-485 |
|
RF connectors: |
(2) SMA male |
|
LAN speed: |
(1) 10/100Mbps |
|
SIM slots quantity: |
2 |
|
Hardware |
|
RAM [MB]: |
64 |
|
CPU: |
QCA9531 |
|
CPU frequency [MHz]: |
650 |
|
Storage internal size [MB]: |
16 |
|
Physical characteristics |
|
Buttons: |
Reset |
|
Operating temperature [°C]: |
-40 up to 75 |
|
Weight [g]: |
165 |
|
Depth [mm]: |
74 |
|
Width [mm]: |
83 |
|
Height [mm]: |
25 |
|
Power |
|
Power type: |
DC terminal |
|
Max. power consumption [W]: |
5 |
|
Power via connector/terminal: |
9 .. 30V DC |
|
Software |
|
Operating system: |
RutOS (OpenWrt based Linux OS) |
|
Wireless features |
|
Wireless frequency: |
2G (GSM), 3G (GSM), LTE |

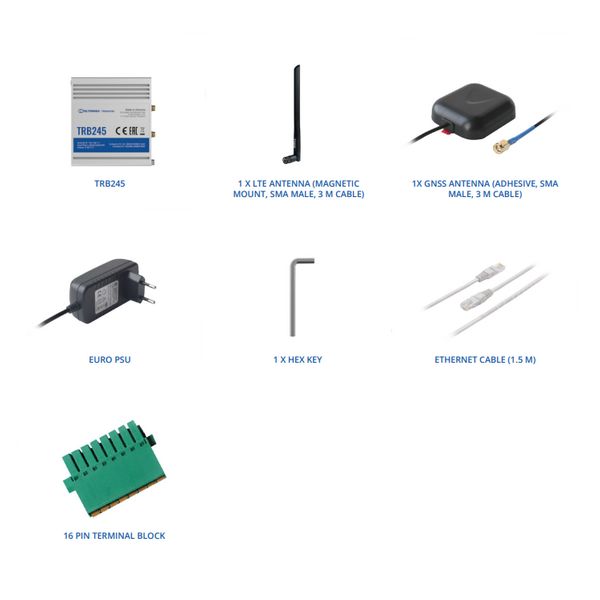

| Package Contents: |
|---|
| 1 x TRB245
|
| 1 x Euro PSU
|
| 1 x LTE antenna (swivel, SMA male)
|
| 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
|
| 1 x 16 pin terminal block
|
| 1 x hex key
|
| 1 x Ethernet cable (1.5 m)
|
| 1 x QSG (Quick Start Guide)
|
| 1 x Packaging box |
|
