Teltonika COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
[003R-00253]
Price: 48,50€
 Order or Qty  Price
 > 500€  5+   48,02€
 > 1000€  10+   47,53€
 > 2000€  20+   47,05€
 > 5000€  40+   46,56€
 > 10000€  100+   46,08€
Prices exclude VAT

Teltonika COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA

Ships in:
3-5 working days
Order Qty:

Teltonika 003R-00253

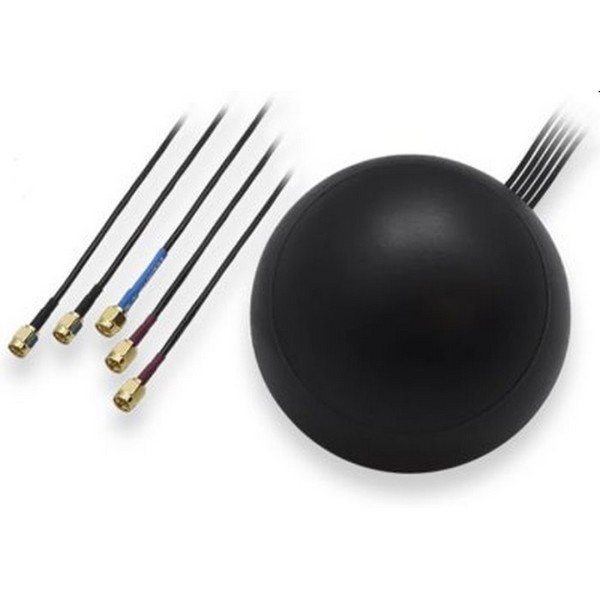

Combo antenna with a total of five 3m cables, terminated with 3x SMA Male and 2x RSMA Male connectors.

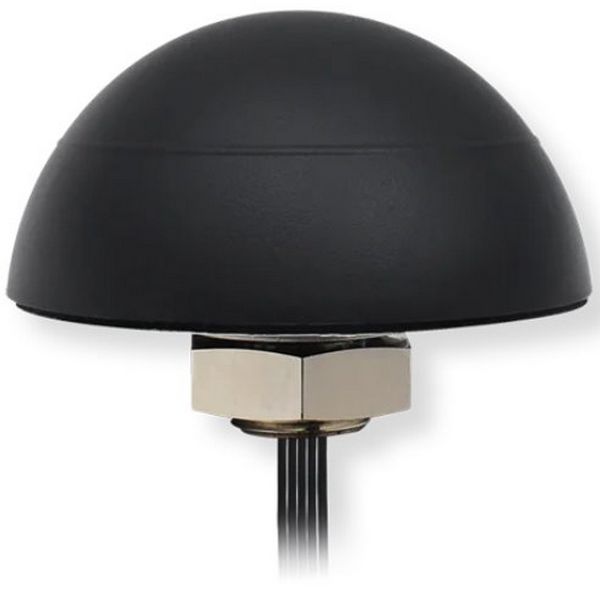

The unit consists of 3 antennas built in one housing. An antenna for GNSS with a gain of 28dB in the band 1575.42-1610 MHz is terminated with one SMA Male connector. The antenna for the LTE bands 698-960 MHz and 1710-2690 MHz is terminated by two SMA connectors and has a 3dBi gain. The last part is an antenna for common wireless bands 2400-2483.5 MHz and 4900-5825 MHz with 2dBi gain and is terminated by two RSMA connectors.

Specifications:
GNSS Antenna
Frequency Range 1575.42-1610 MHz
Polarization RHCP
Impedance 50 Ω
LNA Gain 28±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 3-5 VDC
Current Consumption < 15 mA
LNA V.S.W.R <2.0
Connector SMA Male
LTE MIMO Antenna
Frequency Range 698-960/1710-2690 MHz
Polarization Linear
Gain 3 dBi
V.S.W.R <3.0
Impedance 50 Ω
Connector 2x SMA Male
WiFi MIMO Antenna
Frequency Range 2400-2483.5/4900-5825 MHz
Polarization Linear
Gain 2 dBi
V.S.W.R <2.5
Impedance 50 Ω
Connector 2x RP SMA Male
Mechanical/Environmental

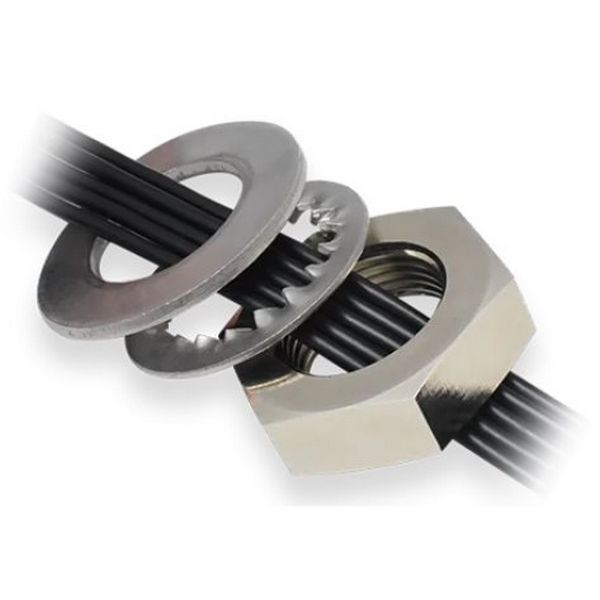

Mounting Method Screw
Radome Ingress Protection rating IP67
Radome Material ABS
Weight <550g

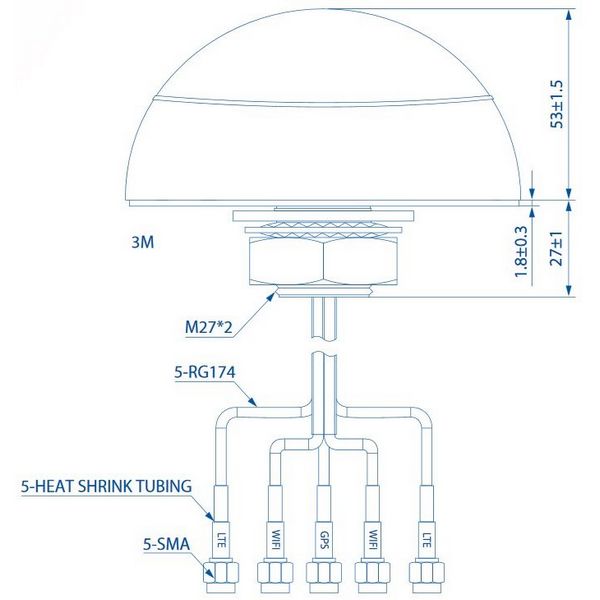

Housing Dimensions Ø 110x55 mm
Cable 5x RG174, 3000 mm
RoHS Compliant YES
