Teltonika » 003R-00254
Teltonika COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
[003R-00254]
Price: 25,42€
 Order or Qty  Price
 > 500€  5+   25,17€
 > 1000€  10+   24,91€
 > 2000€  20+   24,66€
 > 5000€  40+   24,40€
 > 10000€  100+   24,15€
Prices exclude VAT

Teltonika COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA

No Stock
Order Qty:

Teltonika 003R-00254

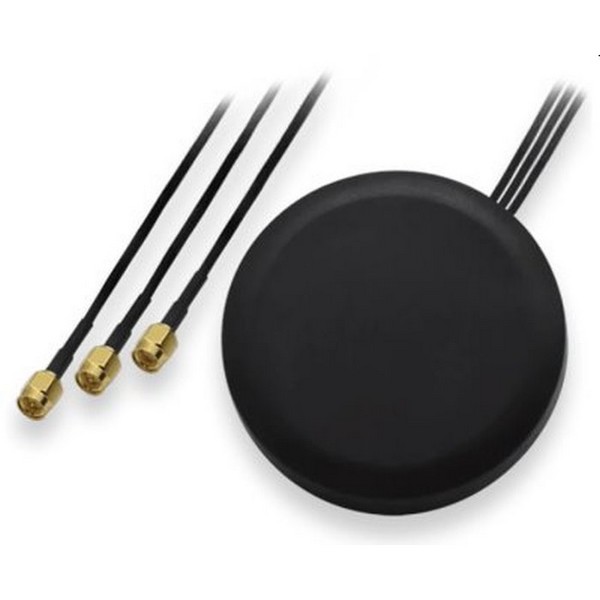

Combo antenna with a total of three 3m cables, terminated with 2x SMA Male and 1x RSMA Male connectors.

The unit consists of 3 antennas built in one housing. An antenna for GNSS with a gain of 28dB in the band 1575.42-1610 MHz is terminated with one SMA Male connector. Antenna for 850/900/1800/1900/2170 MHz LTE bands is terminated with SMA Male connector and has 3.5dBi gain. The last part is an antenna for conventional wireless band 2400-2483.5 MHz with 2.5dBi gain and terminates with one RSMA connector.

Specifications:
GNSS Antenna
Frequency Range 1575.42-1610 MHz
Polarization RHCP
Impedance 50 Ω
LNA Gain 28 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 2.7-5 ±0.5 VDC
Current Consumption < 15 mA
LNA V.S.W.R <1.65
Connector SMA Male
LTE Antenna
Frequency Range 850/900/1800/1900/2170 MHz
Bandwidth ±90/280 MHz
Polarization Vertical
Gain 3.5 dBi
V.S.W.R <1.51
Impedance 50 Ω
Connector SMA Male
WiFi Antenna
Frequency Range 2350-2500 MHz
Bandwidth ±100 MHz
Polarization Vertical
Gain 2.5 dBi
V.S.W.R <1.51
Impedance 50 Ω
Connector RP SMA Male
Mechanical/Environmental

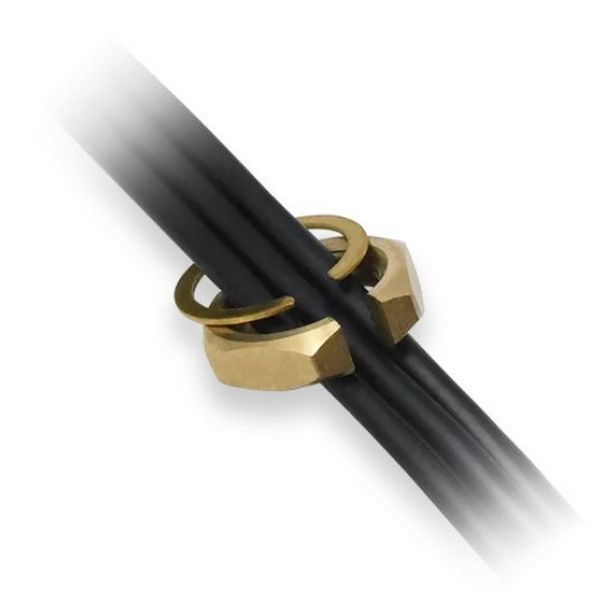

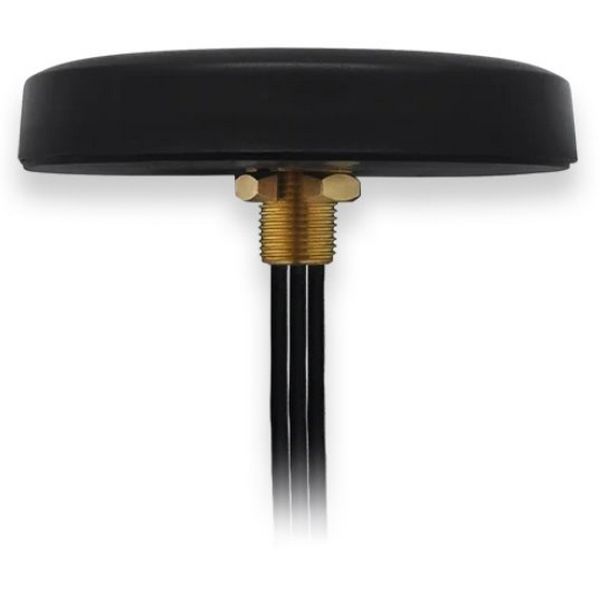

Mounting Method Screw
Radome Ingress Protection rating IP67
Radome Material ABS
Weight <250g

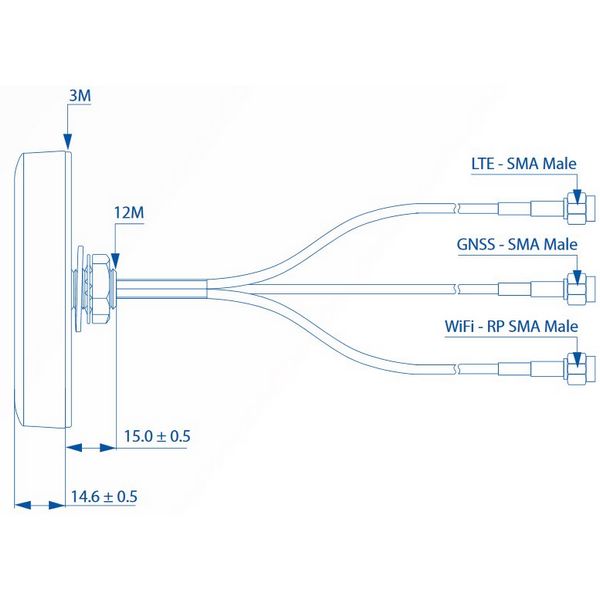

Housing Dimensions Ø 80x15 mm
Cable 3x RG174, 3000 mm
RoHS Compliant YES


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
