Teltonika » PR1KC640
Teltonika PR1KC640, 5G Combo MIMO Mobile/GNSS/WIFI Roof SMA Antenna
Price: 98,82€
Order or Qty Price
 > 500€  5+   97,83€
 > 1000€  10+   96,84€
 > 2000€  20+   95,85€
 > 5000€  40+   94,87€
 > 10000€  100+   93,88€
Prices exclude VAT
Ships in:
3-5 working days
Checking vendor inventory...
Order Qty:
Product Details
PID:3410
SKU:PR1KC640
EAN:4779051841394
Single unit:21×21×16cm, 1.16 Kgs
Return Policy
Refund:20 days
Store Credit:40 days
Repair / Warranty:24 months

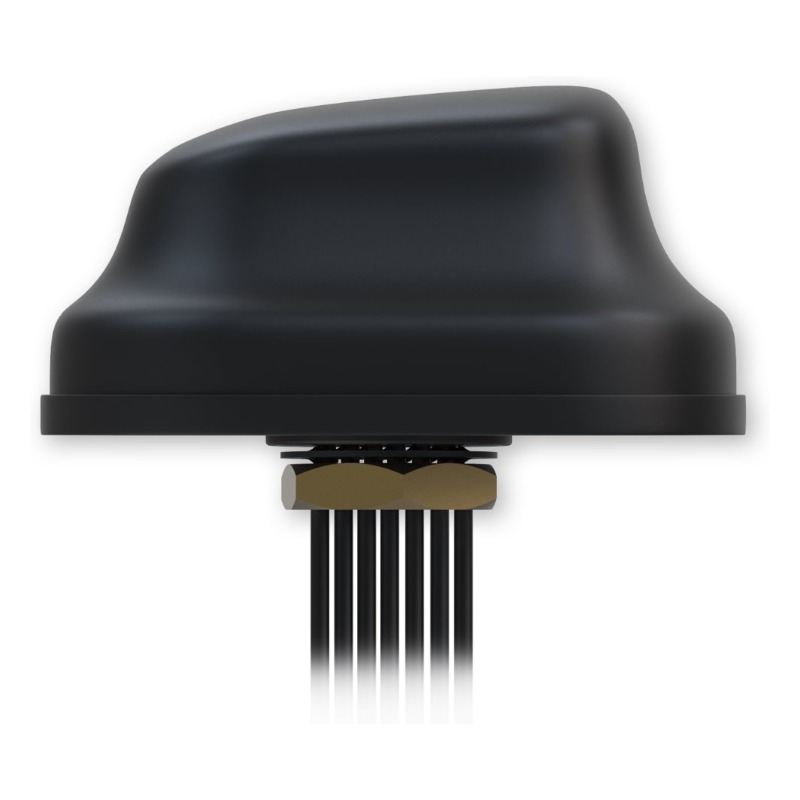

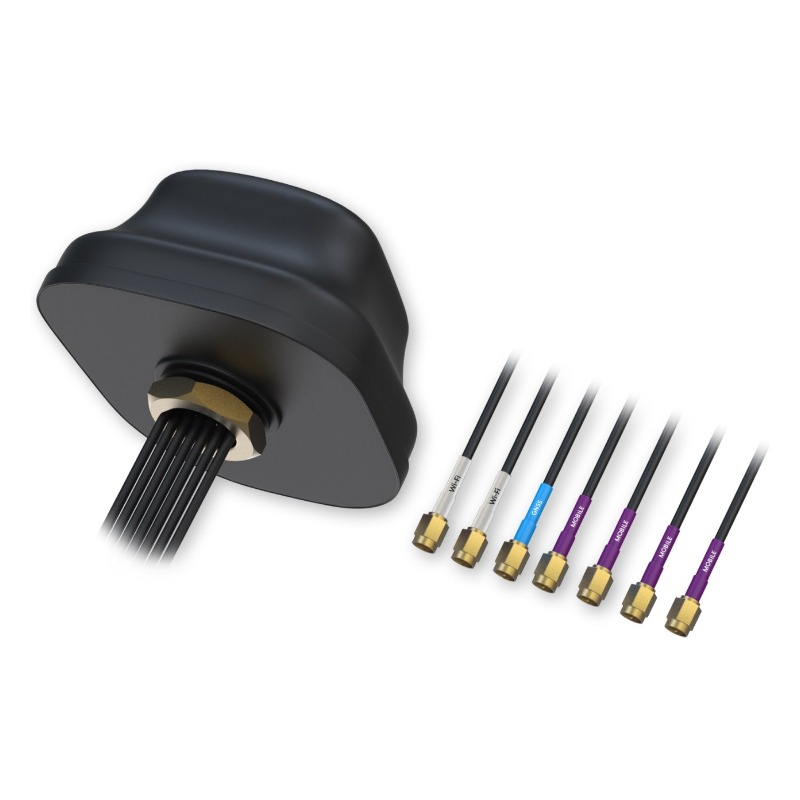

PR1KC640 - 5G Combo MIMO Mobile/GNSS/WIFI Roof SMA Antenna

The PR1KC640 is a high-performance, multi-functional antenna designed for modern wireless applications.

It combines 5G MIMO, GNSS, and dual-band WiFi in a single, rugged IP67-rated enclosure.

Ideal for IoT, automotive, industrial, and smart city deployments requiring reliable multi-band connectivity.

Features:

  • 5G MIMO: Covers 617-960/1710-2690/2900-4200 MHz with 4.0 dBi gain
  • GNSS Support: 1164-1300/1559-1610 MHz with 40dB LNA (RHCP)
  • WiFi 6/6E Ready: Dual-band 2.4GHz & 4.9-5.9GHz (4.0 dBi)
  • Robust Design: UV-resistant ABS/PC housing, IP67 protection
  • Easy Installation: Screw mounting, 28mm hole, includes 7x LMR100 cables
  • Wide Temp Range: Operates in -40°C to +85°C

Product Links:
Product page Product page   Datasheet Datasheet

5G MOBILE MIMO ANTENNA
Frequency Range 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Polarization Linear
Gain 4.0 dBi
V.S.W.R ≤3.0
Impedance 50 Ω
Connector type and count 4x SMA Male
GNSS ANTENNA
Frequency range 1164 - 1300 / 1559 - 1610 MHz
Polarization RHCP
Supply voltage 3 - 12 VDC
LNA Gain 40 ± 2 dB
V.S.W.R ≤2.0
Impedance 50 Ω
Current Consumption ≤60 mA
Connector type and count SMA Male
WIFI MIMO ANTENNA
Frequency range 2400 - 2483.5 / 4900 - 5925 MHz
Polarization Linear
Gain 4.0 dBi
V.S.W.R ≤2.5
Impedance 50 Ω
Connector type and count 2x RP SMA Male
MECHANICAL/ENVIRONMENTAL
Mounting method Screw
Radome ingress projection rating IP67 (exclude cable outlet)
Radome material UV-Resistant ABS/PC
Weight 960 ± 30 g

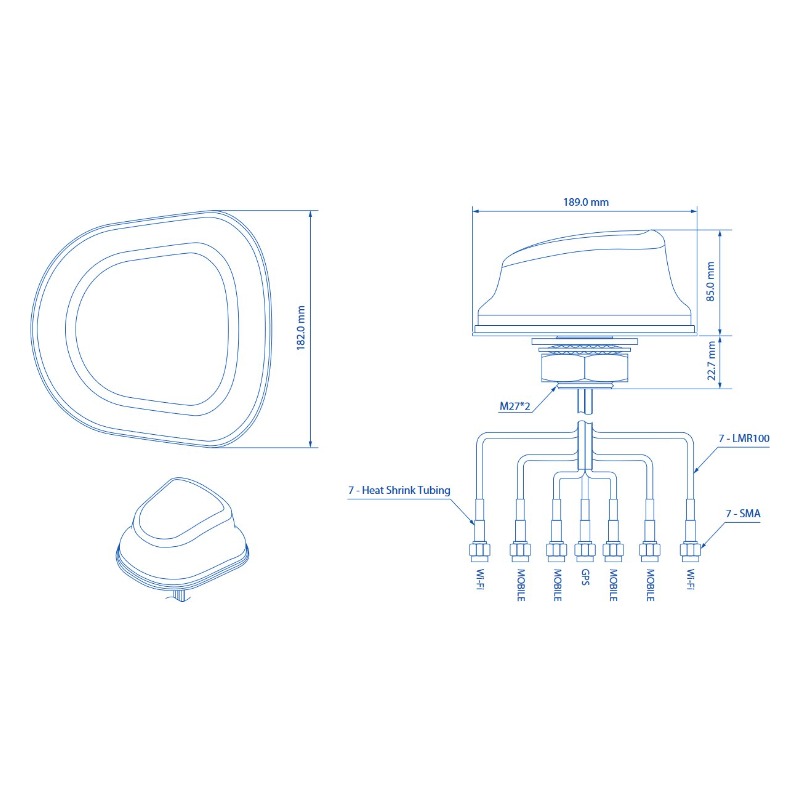

Housing dimensions 189 x 182 x 85 mm

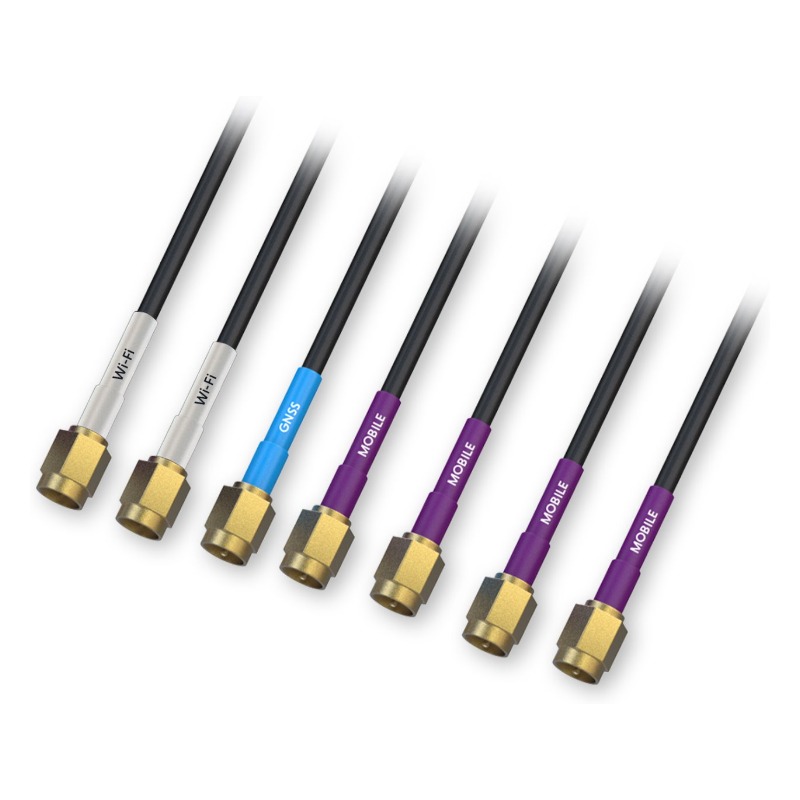

Cable 7 x LMR100, 3000 mm
Recomended mounting dimensions Hole ø28 mm, panel thickness MAX 8 mm
Operating temperature -40 °C - +85 °C
RoHS Compliant ✓

Package Contents:
1 x PR1KC640
