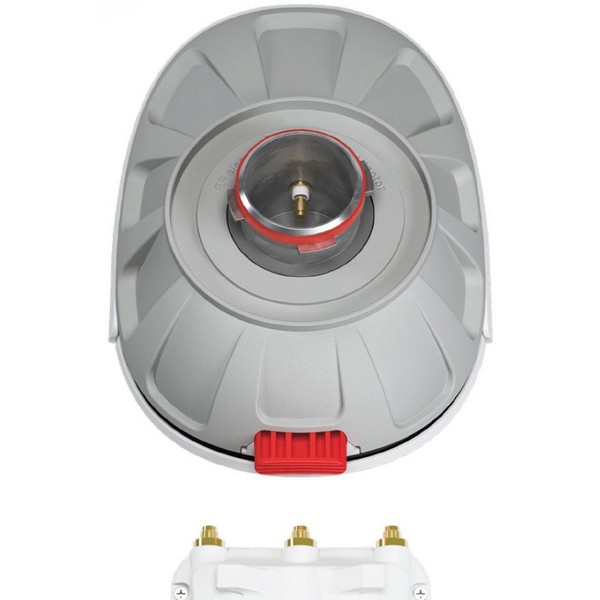

TPA-PAF-v2
The TwistPort TPA-PAF adapter is designed for connection between Ubiquiti products and antennas with TwistPort connector.
TwistPort adapters are equipped with a new fast-lock system from RF elements. Connecting and disconnecting a drive from / into the TwistPort adapter is very simple and does not require any tools.
There are no RF connectors or RF cables that cause significant signal loss.
Compared to commonly used coaxial cables and connectors, the loss on TwistPort is almost unmeasurable, so we can say that TwistPort is practically lossless.
Connection and disconnection is ingeniously simple and can be done with one hand.
TPA-PAF V2: Adds compatibility with the Wave MLO5 radio while maintaining support for the aforementioned models
|
Specifications: |
|
Product ID |
TPA-PAF |
|
Antenna Connection |
TwistPort™ - Quick Locking Waveguide Port |
|
Radio Connection |
2x Slide-On RP-SMA and 1x SMA for GPS |
|
Materials |
Insert - Aluminium Alloy
Adaptor - UV stabilized and weather resistant ABS plastic |
|
Flame Rating |
UL 94 HB |
|
Temperature |
-40°C to +60°C |
|
Wind Survival |
160 km/h |
|
Frequency Range |
5180 - 6400 MHz |
|
Polarization |
Dual Linear H + V |
|
Antenna Compatibility |
Any TwistPort™ Compatible Antenna |
|
Ubiquiti™ Compatibility |
Wave-MLO5, LTU™ Rocket, Rocket® Prism 5AC, Rocket® Prism 5AC Gen2, airFiber® 5X, airFiber® 5X-HD |
