Aerial.net :: RF Elements STD-24-UM ,StarterDish 24 UM - Directional Parabolic Dish Antenna, 5GHz, 24dBi

RF Elements » STD-24-UM

RF Elements STD-24-UM ,StarterDish 24 UM - Directional Parabolic Dish Antenna, 5GHz, 24dBi

Price: 38,45€

Order or Qty		Price
> 500€	5+	38,06€
> 1000€	10+	37,68€
> 2000€	20+	37,29€
> 5000€	40+	36,91€
> 10000€	100+	36,53€

Prices exclude VAT

In Stock: 5

Order Qty:

Product Details
PID:	2743
SKU:	STD-24-UM
UPC:	708747440003
Weight:	2.0009999999999998899 Kgs

STD-24-UM

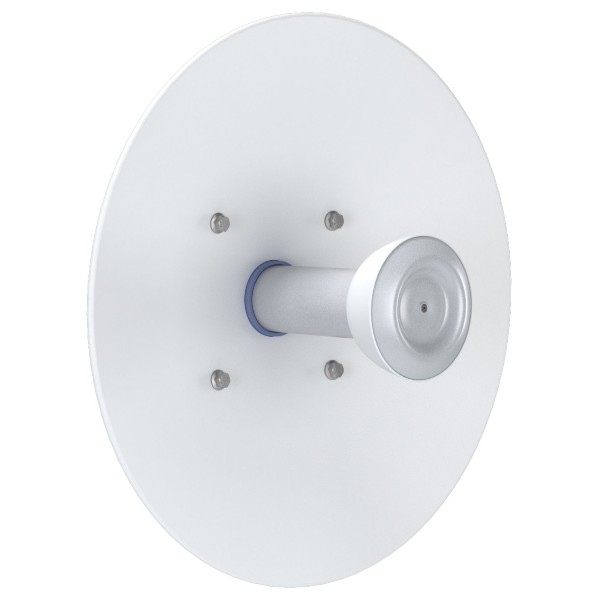

The StarterDish antenna from RF Elements is a directional parabolic antenna with a gain of 27 dBi primarily intended for client installations.

The antenna consists of a very light parabolic antenna, a simple holder for a mast with a diameter from 20 to 55 mm, a radiator is made of aluminum terminated on the back with a so-called IsoStation connector for direct connection to IsoStation or PrismStation units from Ubiquiti Networks.

The antenna package also includes TPA-C5x for connection to a C5x unit from Mimosa.

Product Links:
Product Page	Datasheet	User Quide	Presentation

Specifications:
Product ID	STD-24-UM
Gain	24 dBi
Antenna Connection	Waveguide Port
Antenna Type	Parabolic Dish
Enviromental	IP65
Pole Mounting Diameter	20-55mm
Temperature	-35°C to +55°C
Wind Survival	160 Km/h
Antenna Compatibility:
RF elements	StarterAdapter SMA
Mimosa by Airspan	C5x
Ubiquiti Networks	PrismStation 5AC IsoStation 5AC IsoStation M5

Package Contents:
1 x STD-24-UM
1 x Bracket
1 x TPA-C5x
