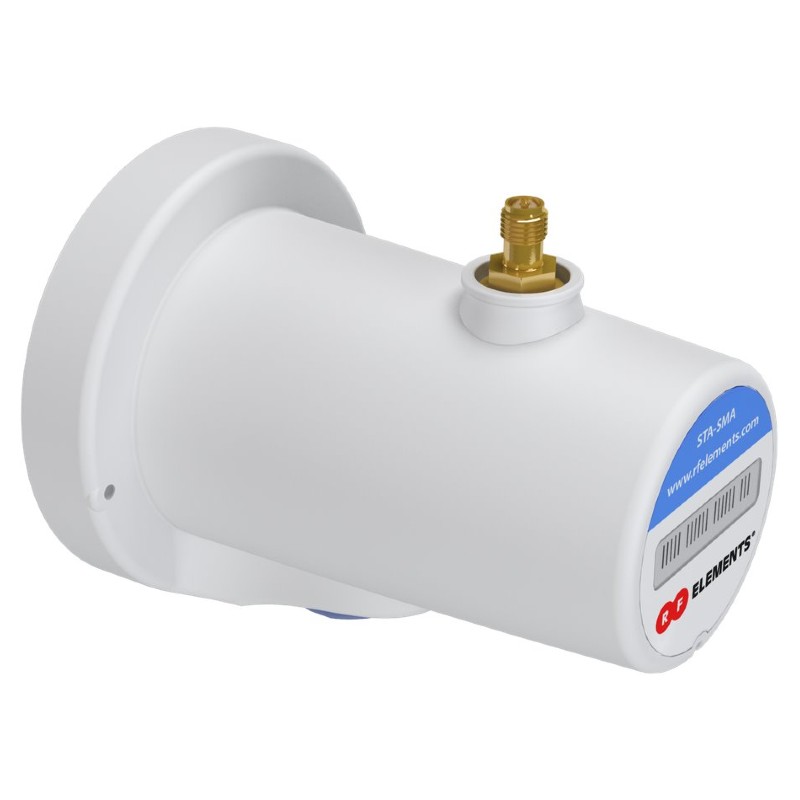

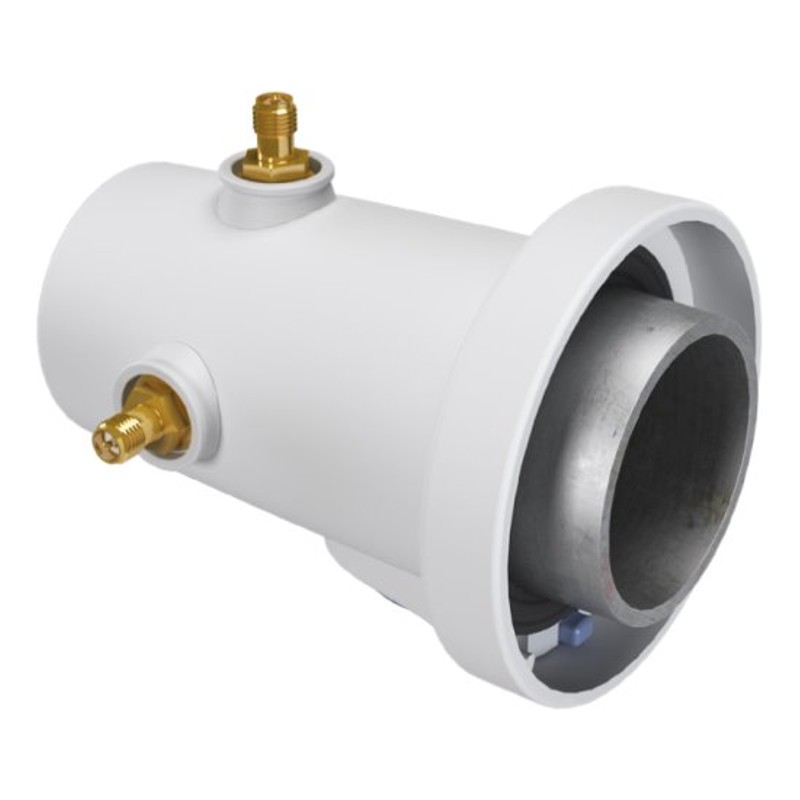

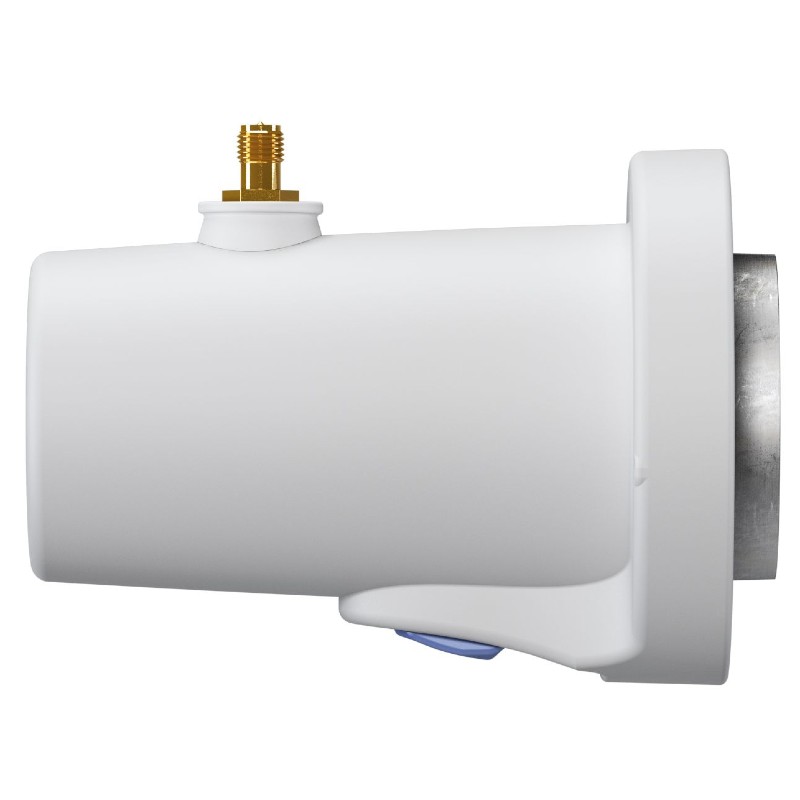

RF elements STA-SMA StarterAdapter SMA, 2x RSMA female connector
[3034][STA-SMA]

Price: 8,84€

Order or Qty		Price
> 500€	5+	8,75€
> 1000€	10+	8,66€
> 2000€	20+	8,57€
> 5000€	40+	8,48€
> 10000€	100+	8,40€

Prices exclude VAT

In Stock: 5

Order Qty:

UPC:	708747439939

RP-SMA Coaxial Interface For StarterDish™ Antennas

The StarterAdapter™ SMA converts waveguide interface into coaxial RP-SMA for dual linear Horizontal and Vertical polarization. Adapter enables using radios with coaxial interface with any StarterDish™ antennas. STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8 throughout the whole bandwidth.

Minimized Loss

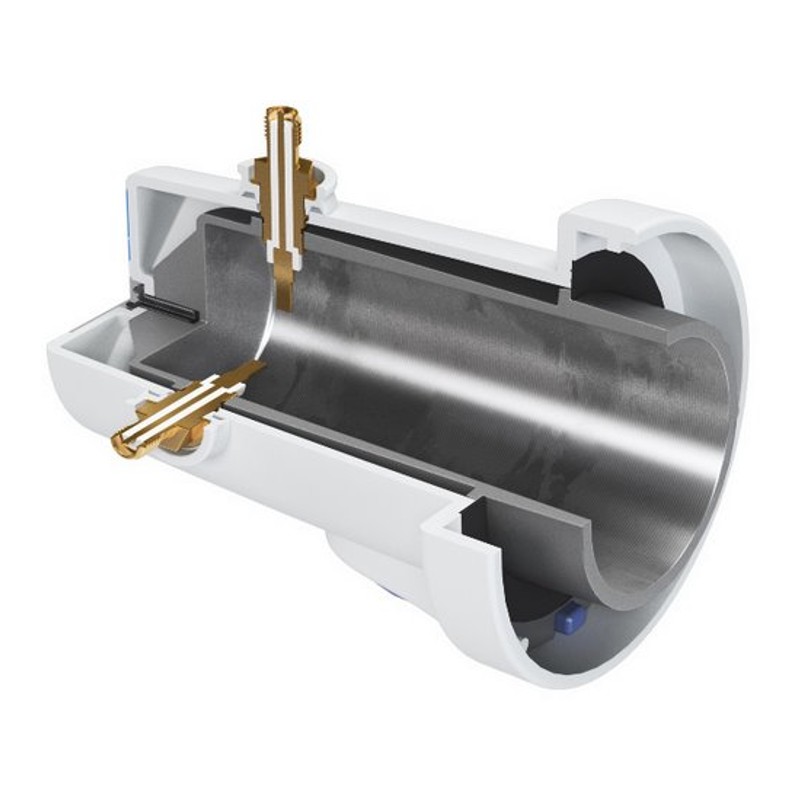

STA-SMA is a waveguide-based adapter. Since waveguide has near-zero loss, the adapter introduces practically zero attenuation in the waveguide part. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.

Product Links:
Product Page	Datasheet

Specifications:
Product ID	STA-SMA
Antenna Connection	Waveguide Port
Radio Connection	2x RP-SMA female
Insert material	Aluminium Alloy
Adapter material	UV stabilized and weather resistant ABS plastic
Flame Rating	UL 94 HB
Operating Temperature	-40°C to +60 °C
Wind Survival	160 km/h
Frequency Range	5150 - 5950 MHz
Polarization	Dual Linear H + V
Antenna Compatibility	Any StarterDishTM Antennas
