Mimosa » C5x
Mimosa C5x, modular radio for PtP and PtMP (uses with N5-X** antennas)
Price: 74,68€
 Order or Qty  Price
 > 500€  5+   73,93€
 > 1000€  10+   73,19€
 > 2000€  20+   72,44€
 > 5000€  40+   71,69€
 > 10000€  100+   70,95€
Prices exclude VAT

Mimosa C5x, modular radio for PtP and PtMP (uses with N5-X** antennas)

In Stock: 2
Order Qty:

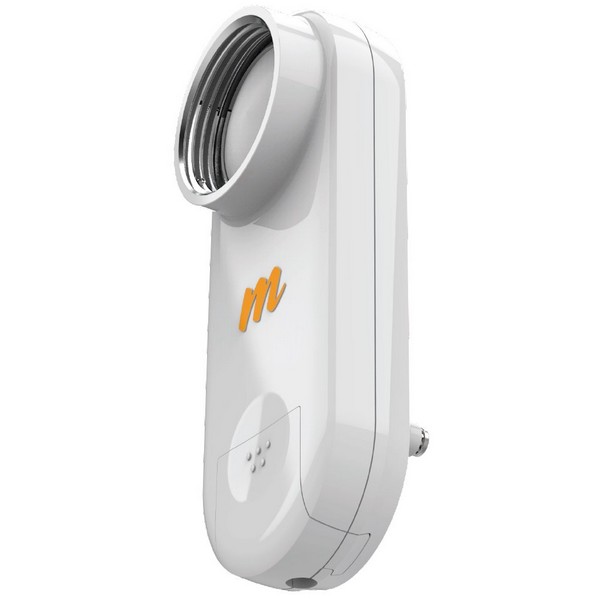

C5x - Client/PTP Backhaul

The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

Integrated Radio with Modular Antenna Options

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

Ultimate Flexibility

Out of the box, the entry level C5x can be used in PTMP or PTP mode with speeds of up to 700 Mbps.

Incredible RF Performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Extended Frequency

To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

Ultra Rugged

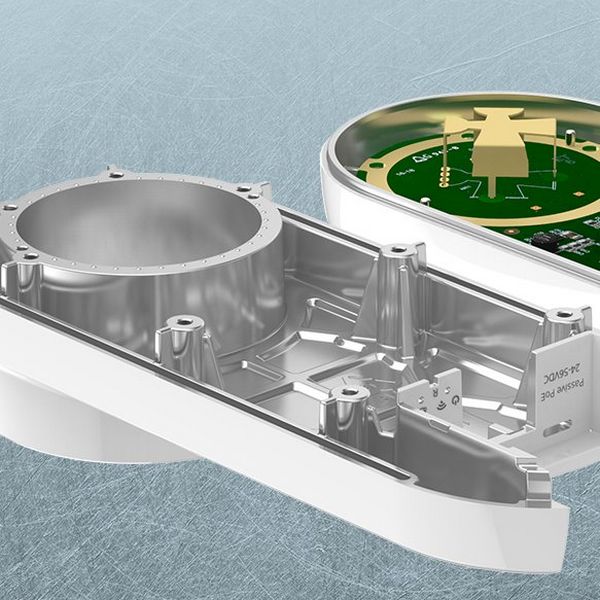

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.

Connectors and Interfaces
RF connectors: Twist-on port (Mimosa)
LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes
Physical characteristics
Purpose: Outdoor
Operating temperature [°C]: -40 up to 55
Weight [g]: 370
Depth [mm]: 61
Width [mm]: 70
Height [mm]: 175
Power over Ethernet: 24 .. 56V DC
PoE type: PoE-In (only)
Max. power consumption [W]: 12,9
Operating mode: Bridge, Client
Wireless features
Sensitivity [dBm]: -93
Wireless frequency: 5 GHz
WiFi standards: Mimosa SRS, WiFi Interop
Transmission speed - WiFi 5GHz [Mb/s]: 866
Tx power 5GHz [dBm]: 27
Security: WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO: 2 x 2
Azimuth beam width (-6dB) [°]: 58, 58
Type of antenna: Built-in
Internal antennas: 1

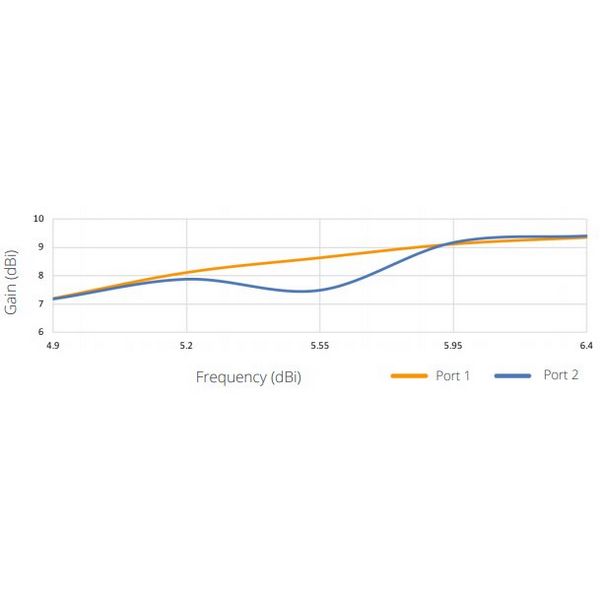

Antenna gain [dBi]: 8

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
