Mimosa » 100-00001
Mimosa B5, 1Gbps PtP backhaul, 25dBi
[100-00001]
Price: 551,66€
 Order or Qty  Price
 > 500€  5+   546,14€
 > 1000€  10+   540,63€
 > 2000€  20+   535,11€
 > 5000€  40+   529,59€
 > 10000€  100+   524,08€
Prices exclude VAT

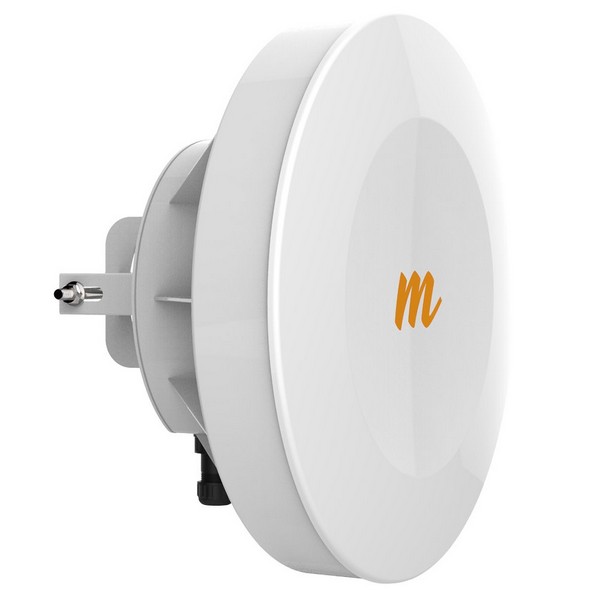

Mimosa B5, 1Gbps PtP backhaul, 25dBi

Ships in:
3-5 working days
Order Qty:

The Mimosa B5 backhaul radio is, hands down, the easiest to use and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications. It’s iIdeal for collocation applications, relay sites, and building-to-building settings.

Easily Add New Links

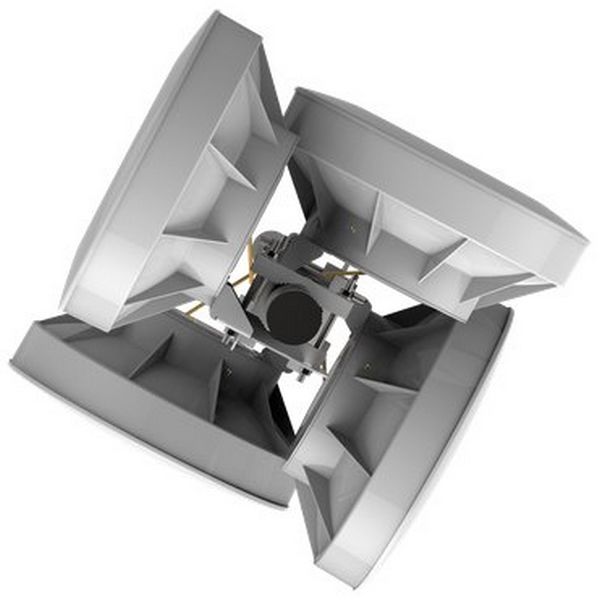

Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.

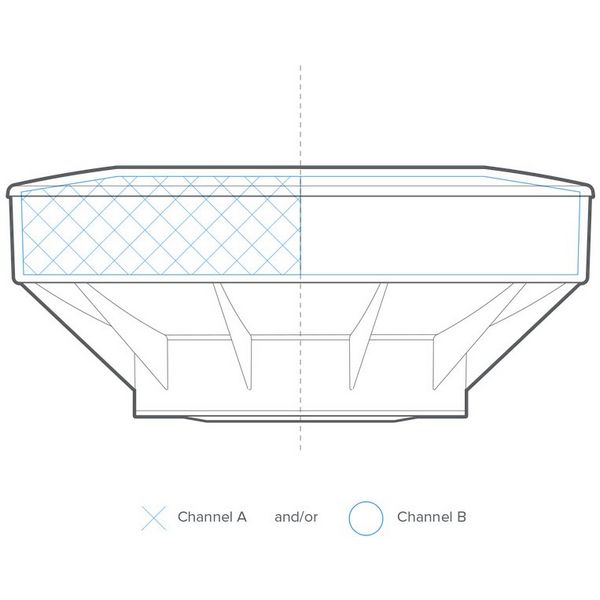

Double Reliability

Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!

Incredibly Fast. Incredibly Flexible

Awarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75/25 traffic direction reservation.

Monitor with Ease, and So Much More

Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.

Specifications:
Connectors and Interfaces
LAN speed (1) 10/100/1000Mbps
Gigabit LAN Yes
Physical characteristics
Designed for mast diameter [mm] 30 up to 90
Purpose Outdoor
Collar Yes
Operating temperature [°C] -40 up to 55
Weight [g] 4900
Depth [mm] 362
Width [mm] 442
Height [mm] 442
Power
Power over Ethernet 802.3at, 48V DC
PoE type PoE-In (only)
Max. power consumption [W] 20
Software
Operating mode Client, Access Point
Default IP address 192.168.1.20
Default login and password Is set by the user at the first startup
Wireless features
Sensitivity [dBm] -93
Cross-Pol Isolation [dB] 20
Maximum modulation 256 QAM
F/B ratio [dB] 30
Wireless frequency 5 GHz
WiFi standards Mimosa TDMA, TDMA-FD
Transmission speed - WiFi 5GHz [Mb/s] 1733
Tx power 5GHz [dBm] 30
Security 128bit AES, 256bit AES
5GHz MIMO 4 x 4
Azimuth beam width (-6dB) [°] 8, 8
Type of antenna Built-in
Internal antennas 4
Antenna gain [dBi] 25


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
