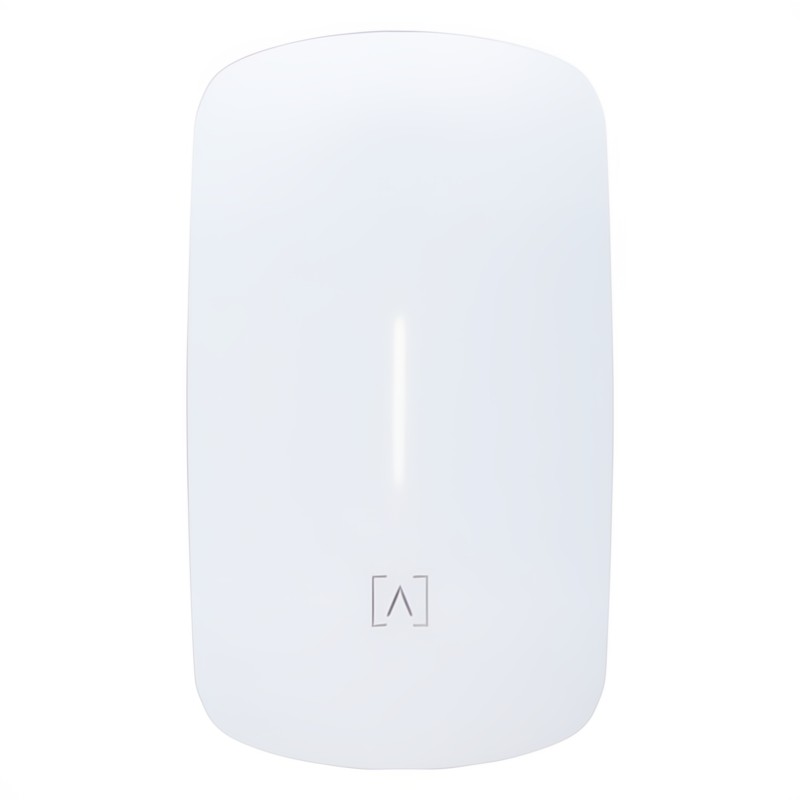

AP6W - Wi-Fi 6, Wall mount enterprise Access Point
The Alta Labs AP6W 4-Stream Wall Mount Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into hospitality environments such as hotels, restaurants, resorts, entertainment venues, MDU (Multi-Dwelling Units), corporate, commercial, and residential spaces.
Combined with our patented AltaPass™ technology, allowing you to use multiple passwords with a single wireless network SSID, you'll find the AP6W truly is the ideal access point for these types of deployments.

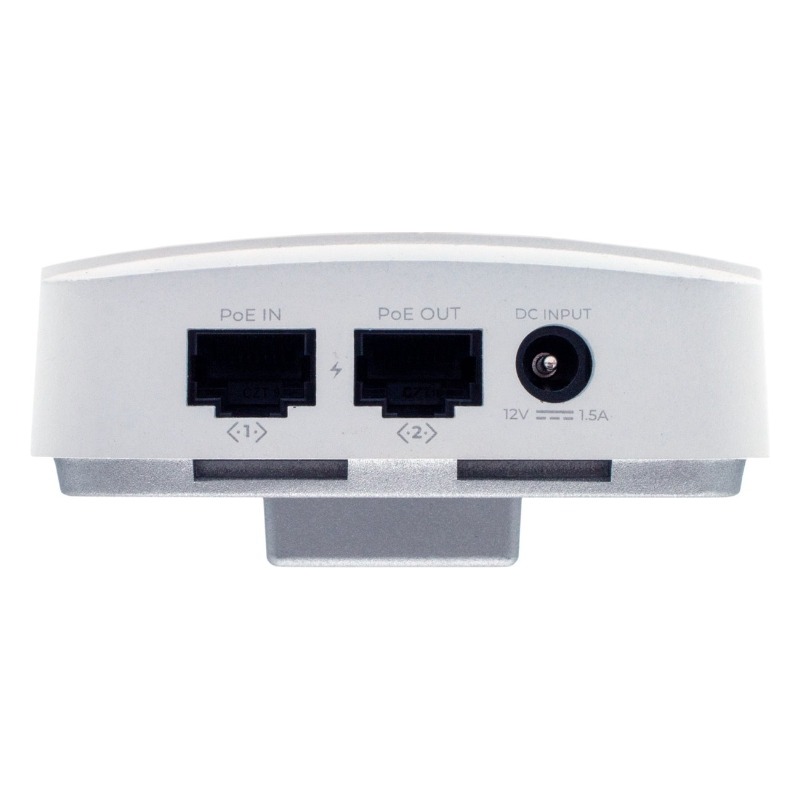

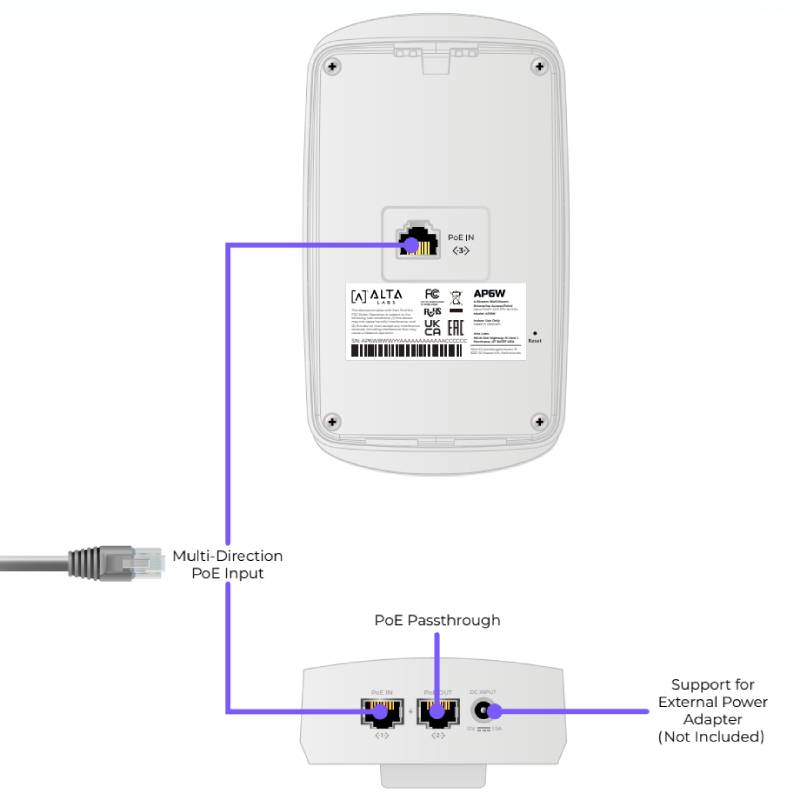

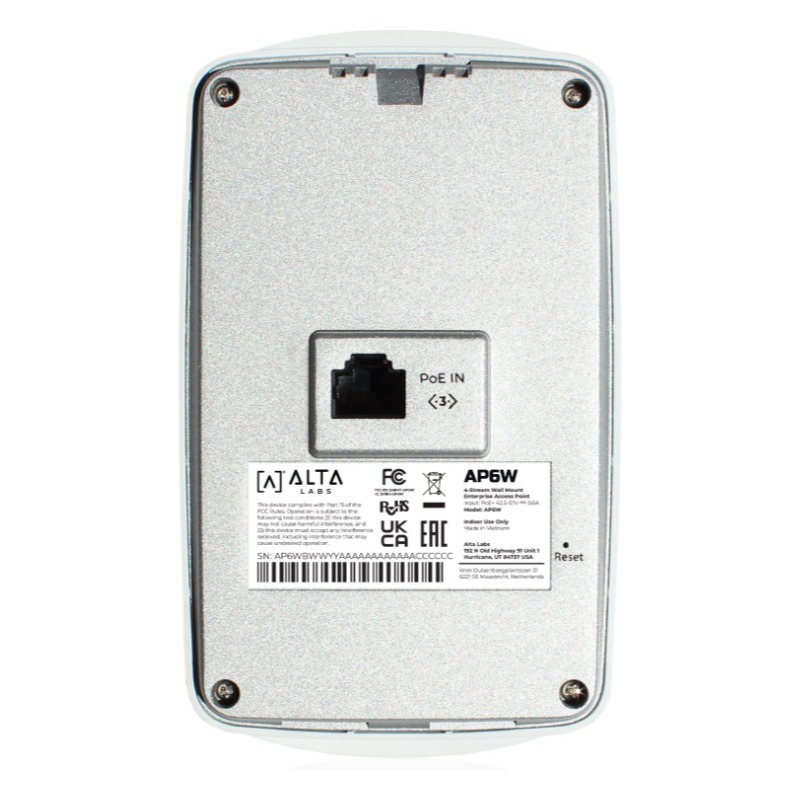

The AP6W can be powered over Ethernet via the PoE In Ethernet port on the back or the one on the bottom. Alternatively, it can be powered using a 12VDC, 1.5A power supply (Not Included).
|
Specifications: |
|
Part # |
AP6W |
|
Network Interface |
Ethernet, WiFi, Bluetooth |
|
Management Interface |
(1) GbE RJ45 Port |
|
Button(s) |
Reset/Factory Reset |
|
LED |
Blue, White |
|
Power Method |
PoE+ |
|
Power Supply |
PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
|
Supported Voltage Range |
42.5-57V DC |
|
Max. Power Consumption |
20W |
|
Max. Transmit Power |
2.4 GHz: 23 dBm @2NSS, 5 GHz: 23 dBm @2NSS |
|
MIMO |
2.4 GHz: 2 x 2, 5 GHz: 2 x 2 |
|
Throughput Rate |
2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 2.4 Gbps |
|
Antenna Gain |
2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi |
|
Mounting |
Wall, ceiling, drop-ceiling, table top |
|
Operating Temperature |
-30°C to +60°C |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
|
Dimensions |
156.1 x 90 x 43.9 mm |
|
Weight |
0.312 kg |
|
Enclosure Material |
Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
|
Mount Material |
Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel |

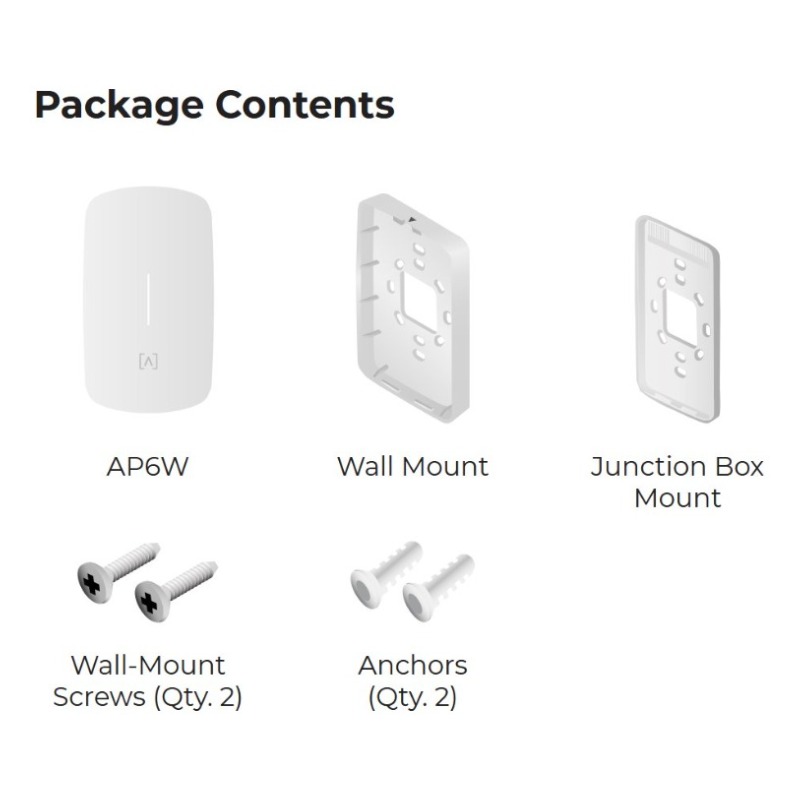

| Package Contents: |
|---|
| 1 x AP6W
|
| 1 x Wall mount Kit
|
| 0 x Without PoE |
|
