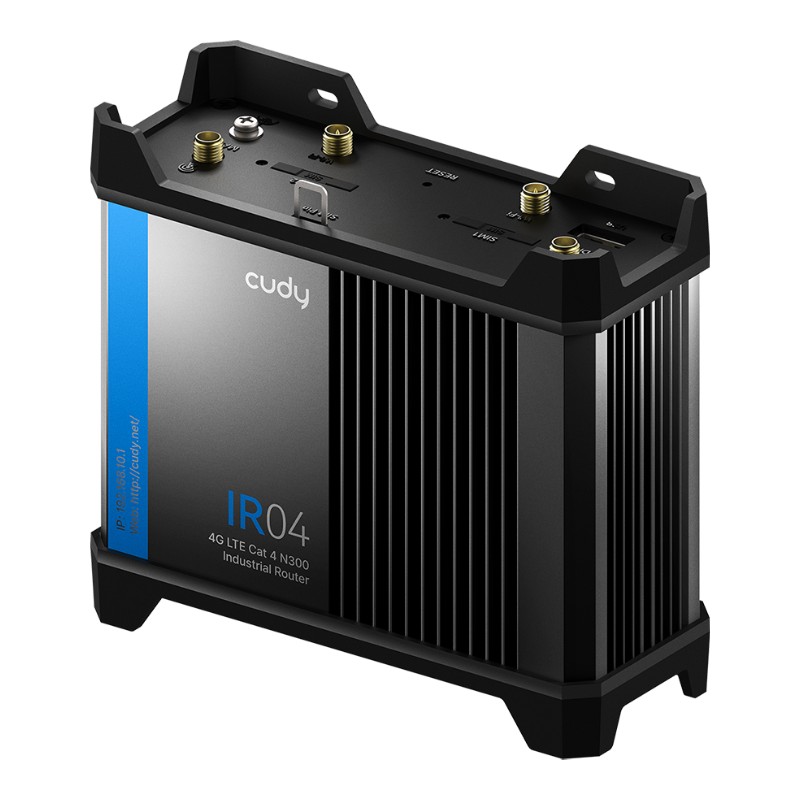

IR04 - 4G LTE Cat 4 N300 Industrial Wi-Fi Router v1
A cellular Wi-Fi router with mobile connectivity for networking in harsh conditions such as moving vehicles, manufacturing, maritime, oil & gas, and mining.
 |
4G Cat. 4 with Max 150 Mbps DL |
 |
2× SIM Slots |
 |
300 Mbps Wi-Fi |
 |
Serial (RS232/422/485), IO |
 |
4-PIN DC with Ignition Sensing |
|
|
802.3at/af, 24~57V Passive PoE |
 |
IP30, -40~75°C, EN61373 |
 |
Level 4 EMC Protection |
 |
DIN-Rail, Wall-Mount |
|
Specifications: |
|
CPU |
580 MHz Single-Core MIPS |
|
RAM / Storage |
128 MB DDR2 / 16 MB NOR Flash |
|
Cellular Standard |
4G LTE Cat. 4 (150 Mbps DL / 50 Mbps UL) |
|

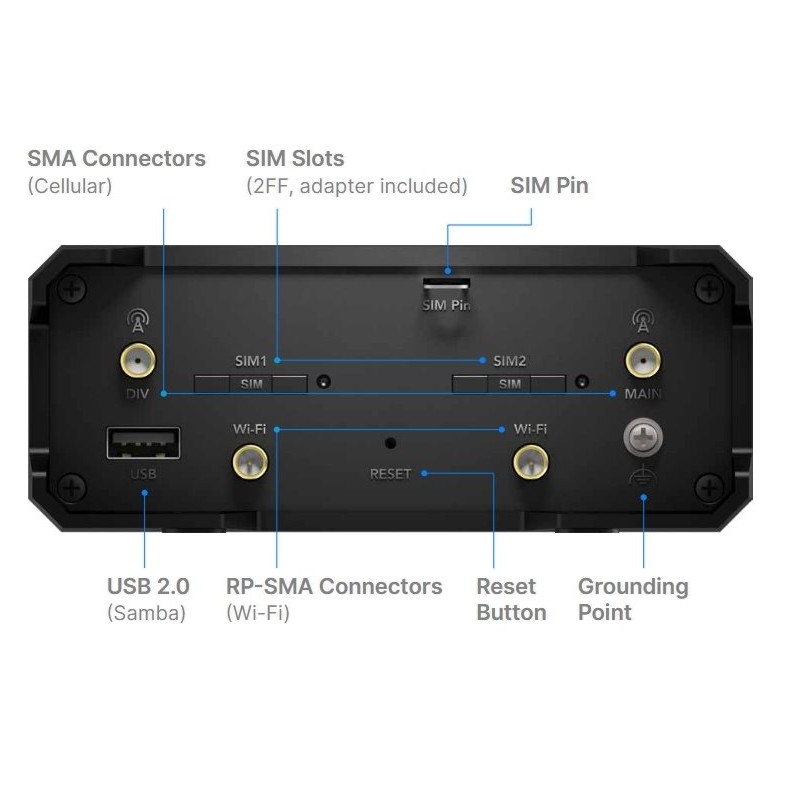

SIM Slots |
2x Mini SIM (2FF) |
|
Antennas |
2x Detachable LTE (SMA), 2x Detachable WiFi (RP-SMA) |
|

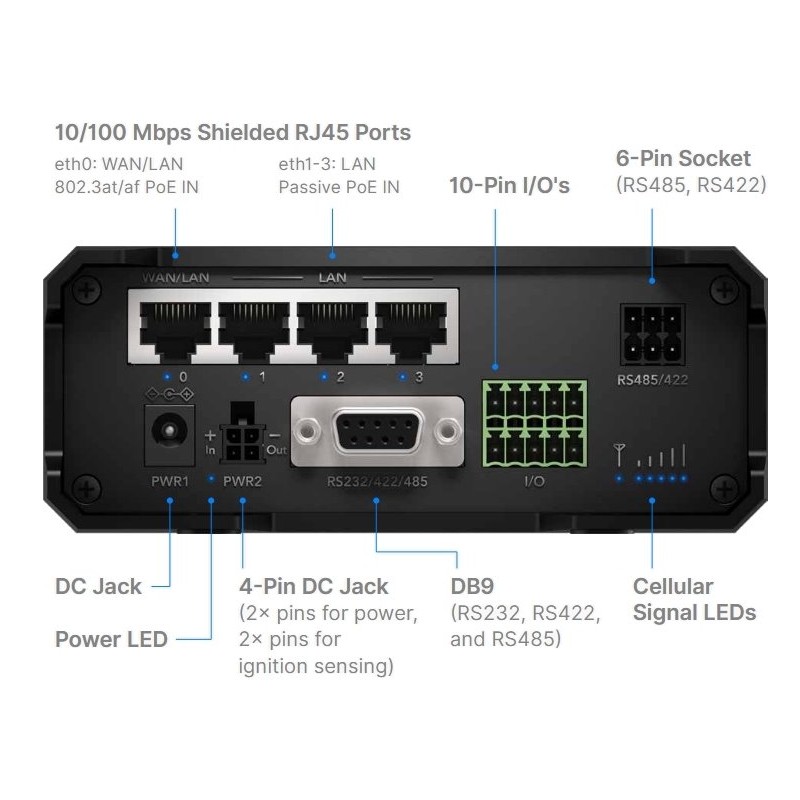

Networking & Interfaces |
|
Ethernet Ports |
4x 10/100 Mbps (1x WAN/LAN, 3x LAN) |
|
WiFi |
2.4 GHz (300 Mbps, 2x2 MIMO) |
|
Serial Ports |
DB9 (RS232/422/485), 6-PIN Socket (RS485/422) |
|
USB / I/O |
1x USB 2.0, Digital Input/Output, Relay, ADC (0-24V) |
|
Power & Reliability |
|
Power Input |
DC 11-57V, PoE (802.3at/af or Passive) |
|
Special Features |
Ignition Sensing, Hardware Watchdog |
|
Protection |
IP30, ESD, Surge, Polarity, Overvoltage |
|
Mechanical & Environmental |
|
Dimensions |
129 x 114 x 50.6 mm |
|
Weight |
462 g |
|
Operating Temperature |
-40 °C to 75 °C |
|
Installation |
DIN-Rail, Wall-mount |

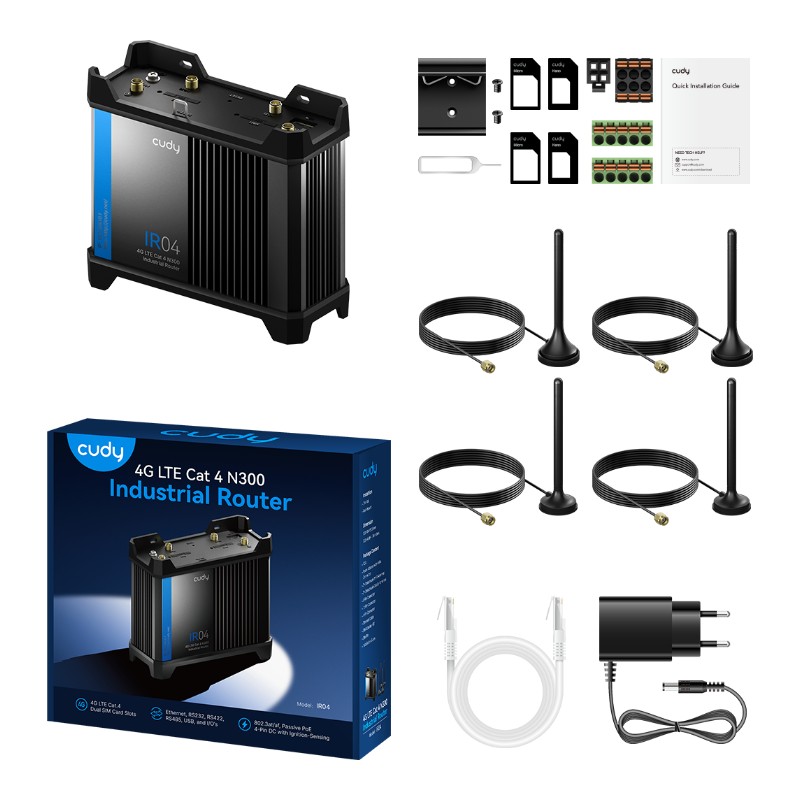

| Package Contents: |
|---|
| 1 x IR04
|
| 1 x Power Adapter 12V, 1A
|
| 2 x Detachable Wi-Fi Antennas
|
| 2 x Detachable Cellular Antennas
|
| 1 x 6-PIN Connector
|
| 1 x 10-PIN Connector
|
| 1 x 4-PIN Connector
|
| 1 x Ethernet Cable
|
| 2 x SIM Adapter KIT
|
| 1 x Mounting Kit
|
| 1 x Installation Guide |
|
