Aerial.net :: Cudy AP1200, AC1200 Gigabit AP/Repeater/Router/WISP

Cudy » AP / MESH » AP1200

Cudy AP1200, AC1200 Gigabit AP/Repeater/Router/WISP
[3405][AP1200]

Price: 27,02€

Prices exclude VAT

In Stock: 7

Available quantity within
3-5 working days: 50

Order Qty:

EAN:	6971690792015

AP1200- Indoor AC1200 Wi-Fi Access Point 1.0

A wall-mounted WiFi AP with PoE.

	4-stream dual-band Wi-Fi 5
	867 Mbps @ 5 GHz and 300 Mbps @ 2.4 GHz.
	1× Fast Ethernet Port
	24V Passive PoE
	30 Connected Devices
	Router/AP/RE/WISP/Client Modes

Product Links:
Product Page	Datasheet	Quick Start Guide

Specifications:
Model Version	AP1200 1.0
CPU CPU Details	580 MHZ Single-Core CPU
Memory/Storage Flash/ROM	8 MB (64 Mbit ) NOR
DDR/RAM	64 MB (512 Mbit) DDR2
Wireless 5 GHz Wi-Fi Speed	867Mbps
2.4 GHz Wi-Fi Speed	300Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
5 GHz Antenna Gain Max	4.64dBi
2.4 GHz Antenna Gain Max	5.31 dBi
FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
Beamforming	True
Range Performance	Max: 170 m
Interfaces 10/100 Mbps RJ45 Ports	1
Ethernet Notes	Accepts PoE powering
LED	5 GHz Wi-Fi 2.4 GHz Wi-Fi LAN Internet System
Physical Buttons	WPS Button Reset Button
Power Input	PoE via Ethernet Port
Power Power Methods	Passive PoE
Passive PoE	24V
Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 24V Passive PoE
Max Power Consumption (W)	12 W
Idle Power Consumption (W)	2.5 W
Reliability EMS	ESD: Contact: 4kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature	-20 ℃ ~ 60 ℃
Certifications	FCC, CE
Mechanical Installation	Wall-mount
Dimension	231.9×57.1 mm
Product Weight	415 g
Ordering Information Retail Package Weight	EU: 370.5 g
Retail Package Dimension	283×238×68 mm

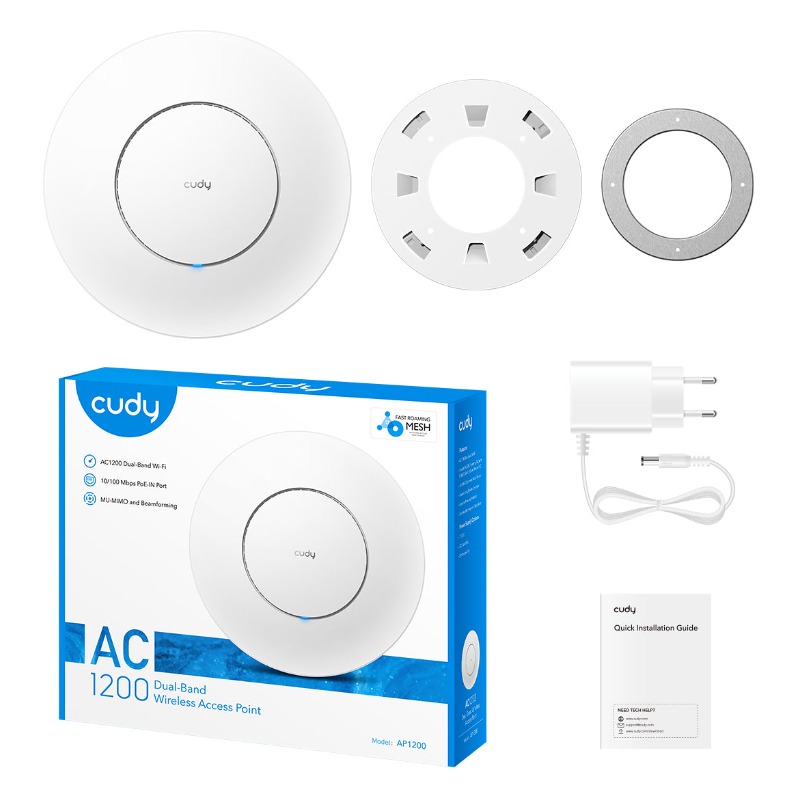

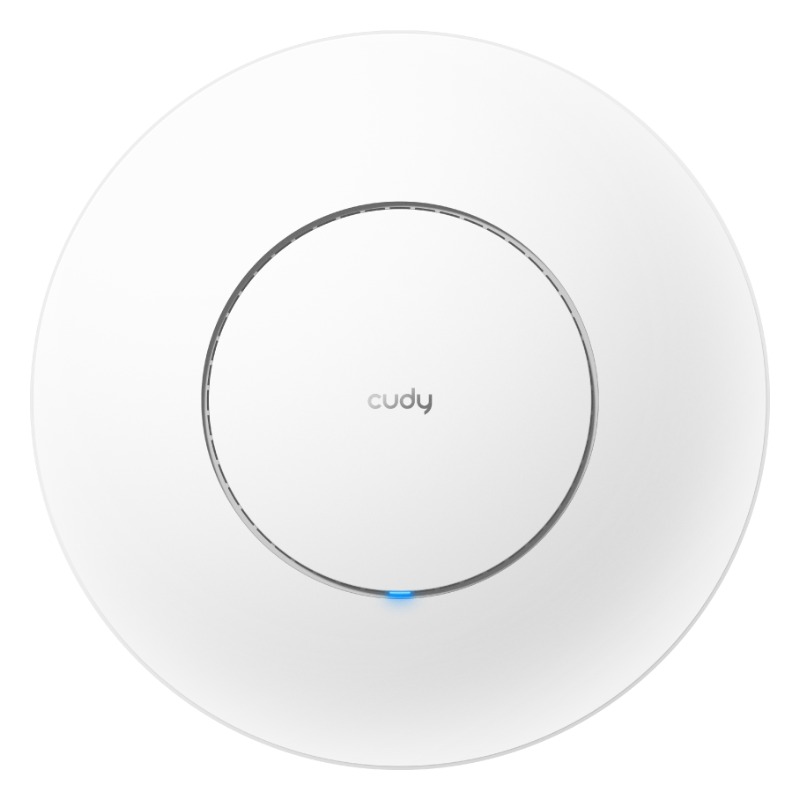

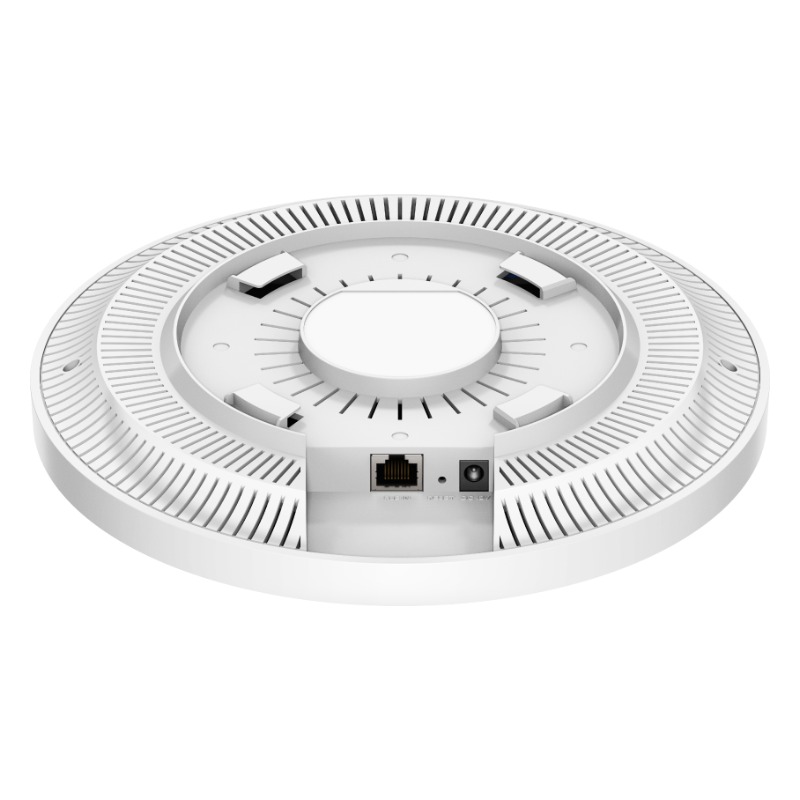

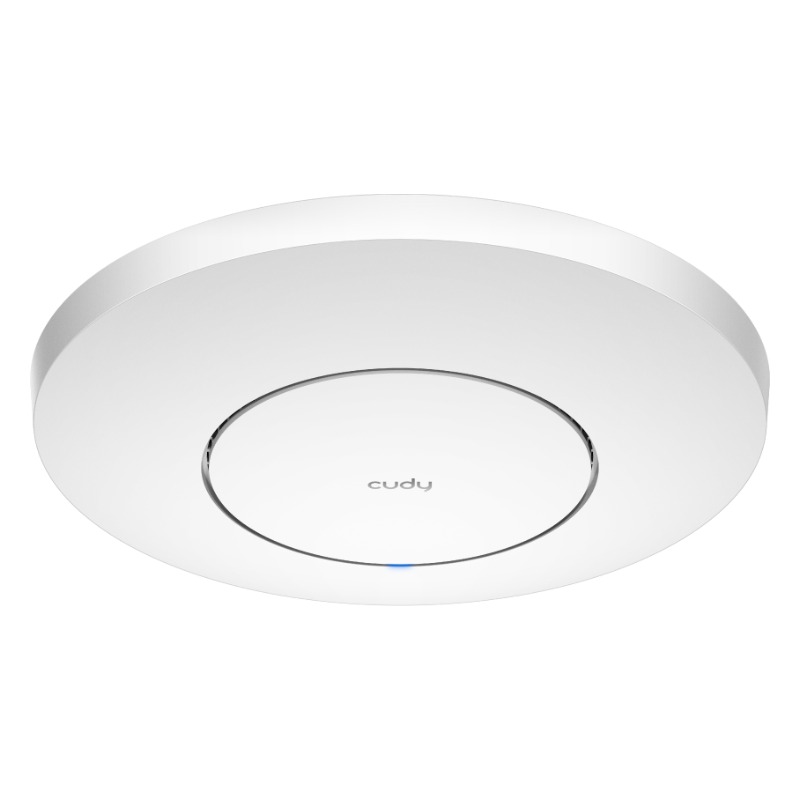

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
