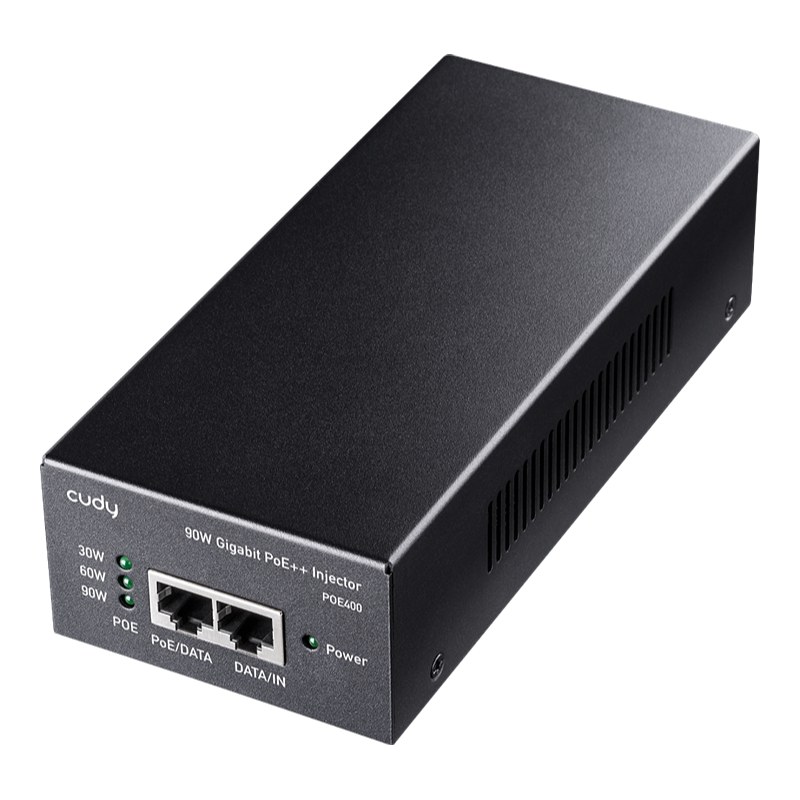

POE400 - Gigabit PoE Injector, 90W
This Gigabit PoE Injector provides 1x GbE uplink and 1x GbE downlink, supporting 802.3bt/at/af standards with a maximum output of 90W.
It extends data and power transmission up to 100 meters over Cat. 5e or higher cable.
|
|
GbE In, GbE Out |
|
|
100 m Transmission Distance |
|
|
802.3bt/at/af, Max 90W, 4-Pair |
|
|
4-Pair 1/2- 3/6+ 4/5+ 7/8- |
|
|

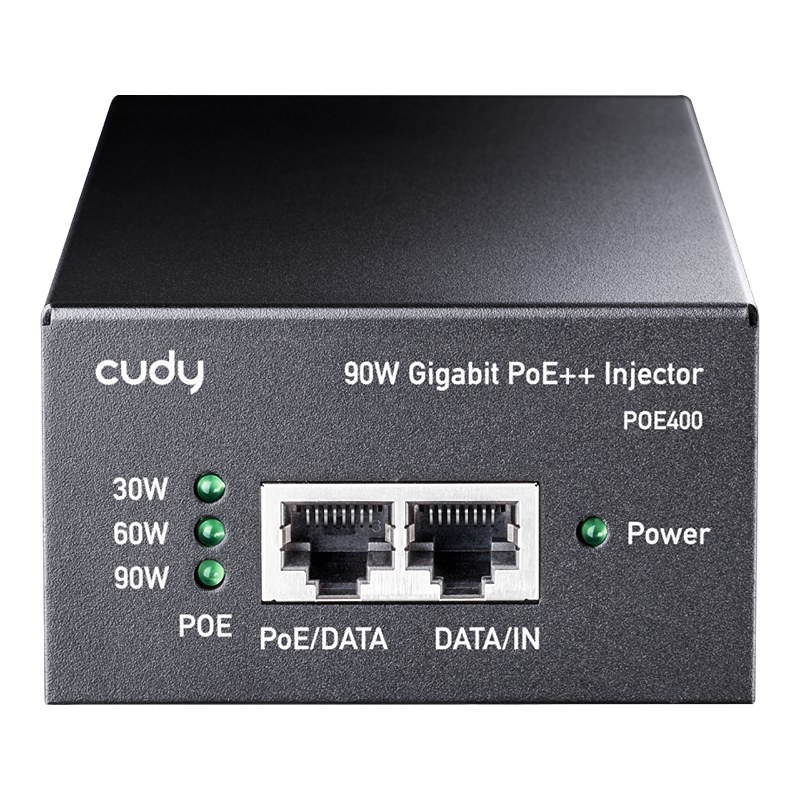

Power, PoE Wattage LED |
|
|
Surge/ESD Protection |
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
4-Pair |
A+B |
1,2,4,5 |
3,6,7,8 |
|
Specifications |
|
Protocols |
802.3i 10 Mbps over Twisted Pair, 802.3u 100 Mbps over Twisted Pair, 802.3ab 1 Gbps over Twisted Pair, 802.3af PoE, 802.3at PoE, 802.3bt PoE |
|
PoE Uplink Stream |
1× GbE |
|
PoE Downlink Stream |
1× GbE, 802.3bt/at/af |
|
PoE Downlink Pin Assignment |
Four-Pair |
|
Transmission Distance |
Cat. 5e or higher cable: 100 meters at Gigabit |
|
LED |
Power, PoE Wattage |
|

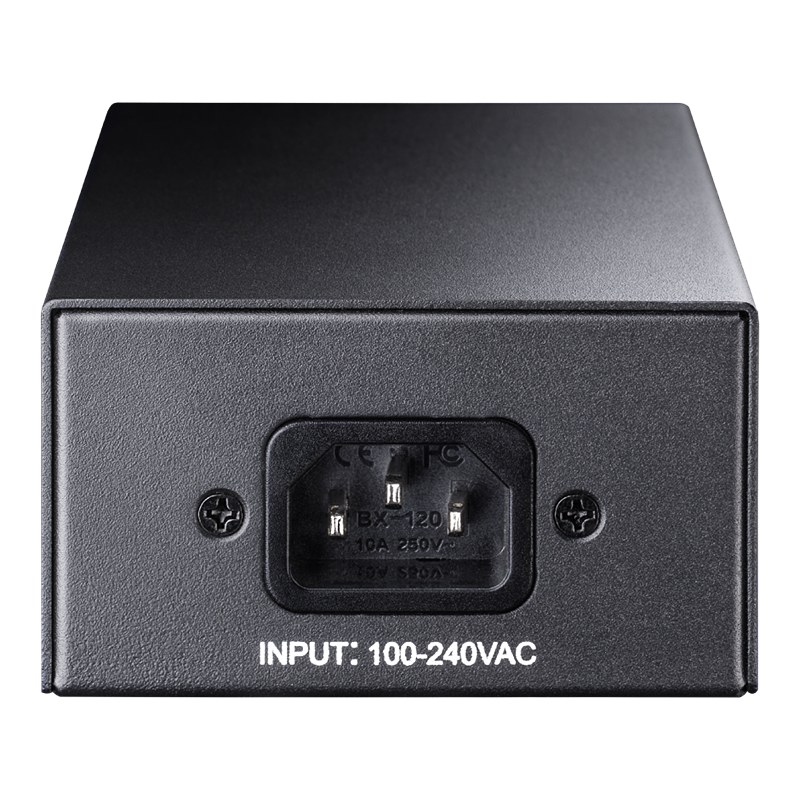

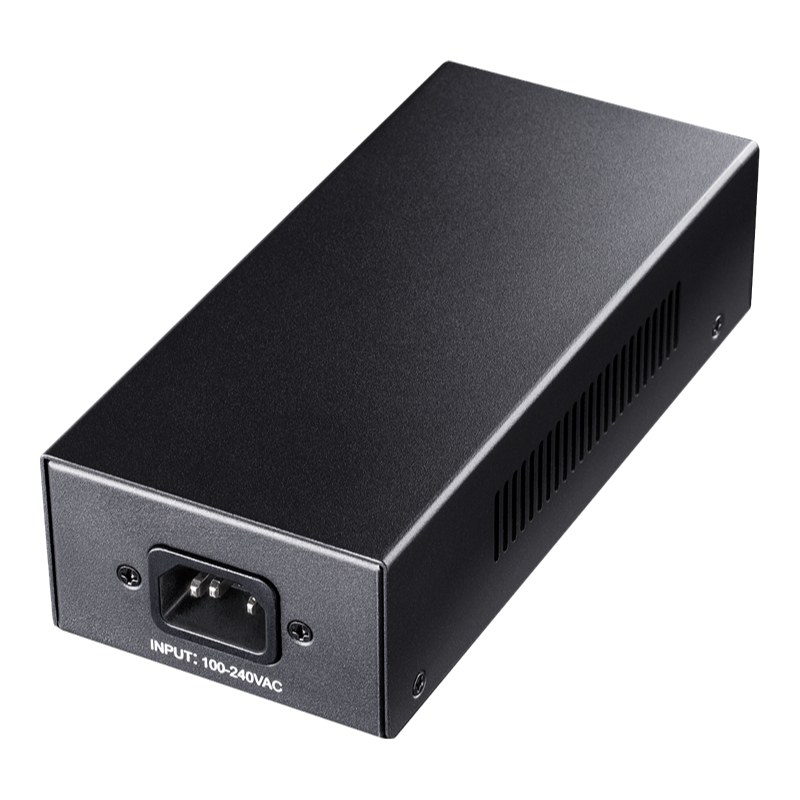

Power Input Type |
AC Inlet |
|
Power Methods |
AC |
|
Power Input |
100-240V~ 50/60Hz |
|
Max Power Output (W) |
90W |
|
Power Protection |
Surge Protection, ESD Protection, Overvoltage Protection, Short-Circuit Protection |
|
EMC |
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV |
|
Grounding Methods |
Three-Prong Plug |
|
Ambient Operating Temperature |
-10~45 ℃ |
|
Storage Temperature |
-20~70 ℃ |
|
Operating Humidity |
10%~80% non-condensing |
|
Storage Humidity |
5%~80% non-condensing |
|
Certifications |
FCC, CE |
|
Mechanical |
|
Installation |

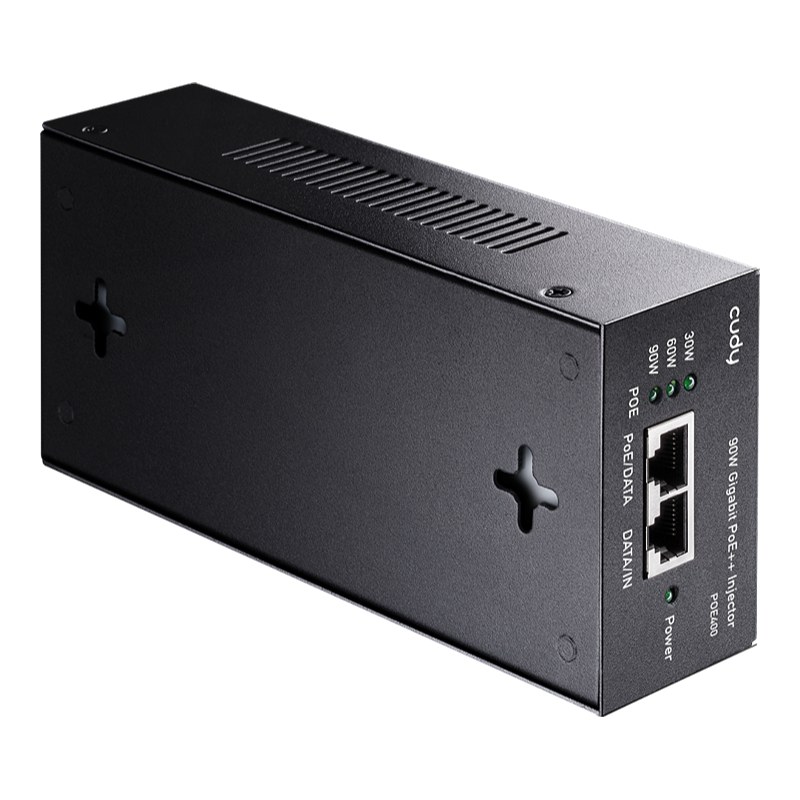

Desktop, Wall-mount |
|
Dimension |
178.5×80×46 mm |
|
Casing Material |
Metal |
