UX7 - UniFi Express 7
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
|
Specifications |
|
Dimensions |

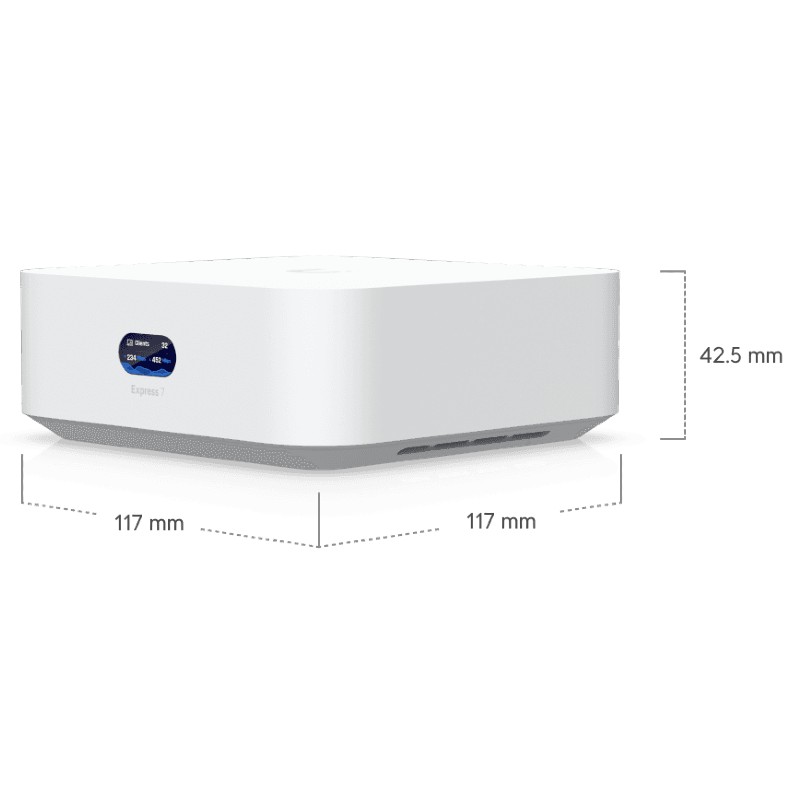

117 x 117 x 42.5 mm |
|
Form Factor |
Compact desktop |
|
UniFi Application Suite |
Network: Yes |
|
Managed UniFi Devices |
30 |
|
Simultaneous Users Connected |
300 |
|
Default WAN Ports |

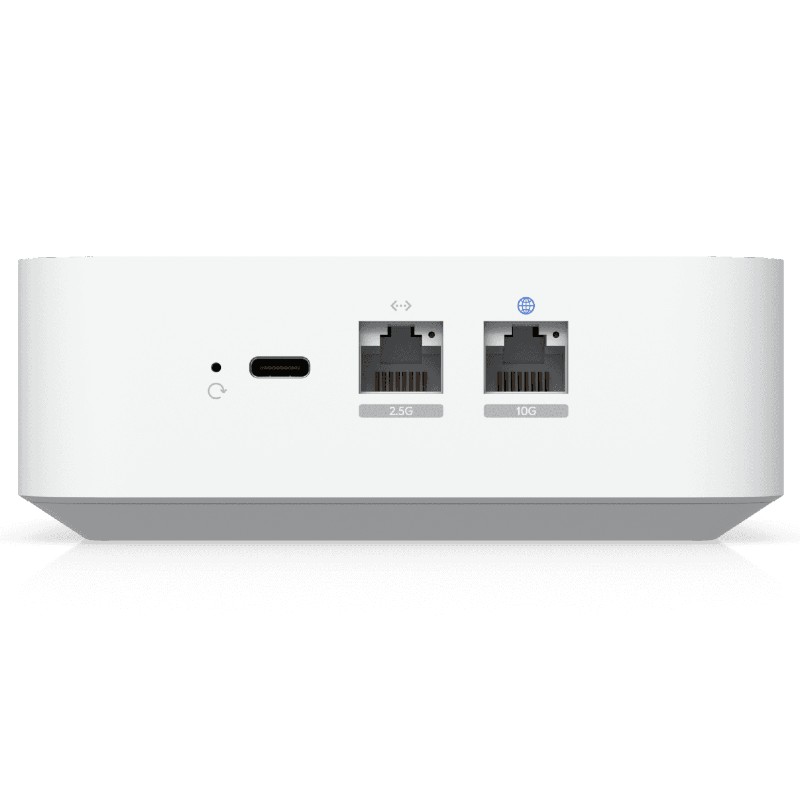

(1) 10 GbE RJ45 |
|
LAN Ports |
(1) 2.5 GbE RJ45 |
|
IDS/IPS Throughput |
2.3 Gbps |
|
Security |
|
Stateful Firewall |
Yes |
|
Application-Aware Layer 7 Firewall |
Yes |
|
DPI & Traffic Identification |
Yes |
|
Zone-Based Firewall (Regions, Domains, Apps) |
Yes |
|
Content Filtering |
Yes |
|
Intrusion Prevention (IPS/IDS) |
Yes |
|
Ad Blocking |
Yes |
|
IDS/IPS Signatures |
20,000+ with CyberSecure |
|
VLAN/Subnet-based Traffic Segmentation |
Yes |
|
VPN & SD-WAN |
|
License-Free SD-WAN |
Yes |
|
Site-to-Site VPN (Site Magic) |
Yes |
|
IPsec |
Yes |
|
OpenVPN |
Yes |
|
VPN Client |
OpenVPN, WireGuard |
|
Networking |
|
Dynamic Routing (OSPF) |
Yes |
|
Advanced QoS |
Yes |
|
Multicast DNS (mDNS) |
Yes |
|
Advanced NAT |
Yes |
|
Integrated RADIUS Server |
Yes |
|
RADIUS over TLS (RadSec) |
Yes |
|
Additional Internet Failover (LTE Backup) |
Yes |
|
Internet Quality and Outage Reporting |
Yes |
|
Policy-based WAN and VPN Routing |
Yes |
|
Customizable DHCP Server |
Yes |
|
IPv6 ISP Support |
Yes |
|
IGMP Proxy |
Yes |
|
Integrated WiFi |
|
WiFi Standard |
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
|
Throughput |
6 GHz: 5.7 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps |
|
MIMO |
6 GHz: 2x2, 5 GHz: 2x2, 2.4 GHz: 2x2 (DL/UL MU-MIMO) |
|
Antenna Gain |
6 GHz: 6 dBi, 5 GHz: 7 dBi, 2.4 GHz: 4 dBi |
|
Hardware |
|
Max. Power Consumption |
22W |
|
Power Method |
USB Type-C (5V DC/5A) |
|
Power Supply |
USB Type-C (5V DC/5A) (Adapter included) |
|
Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
|
System Memory |
3 GB |
|
Weight |
422 g (14.9 oz) |
|
Enclosure Material |
Polycarbonate |
|

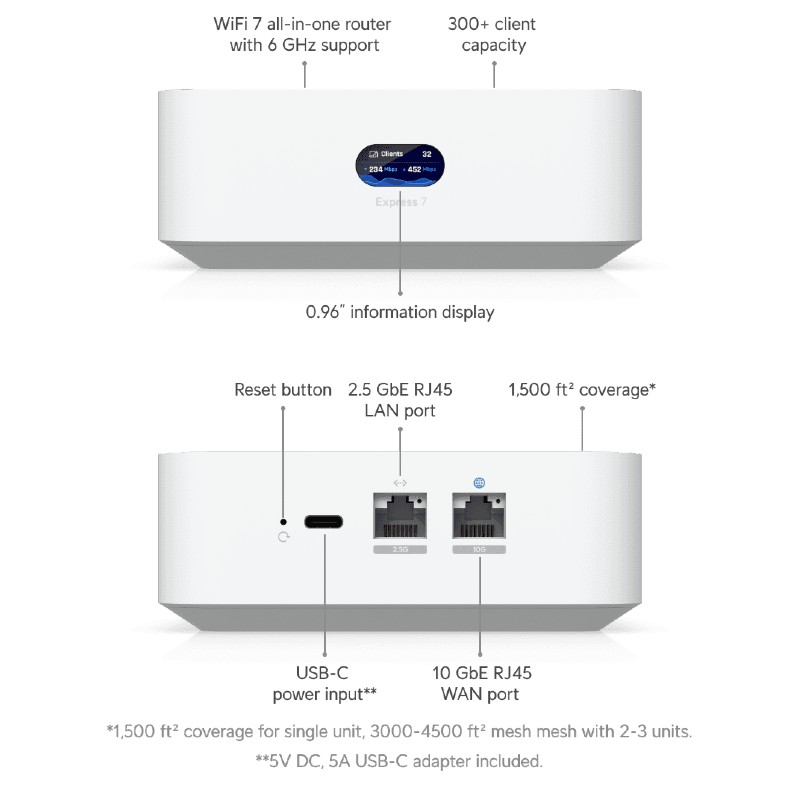

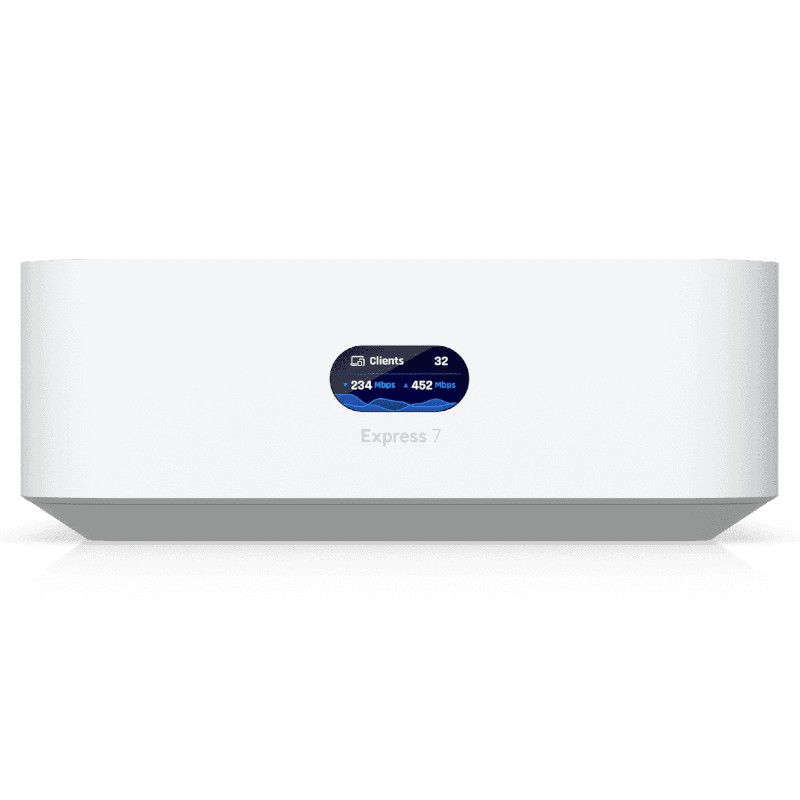

LCM Display |
0.96" status display |
|
Management |
|
Ethernet |
Yes |
|
Bluetooth |
Yes |
|
LEDs (Ethernet) |
Yes |
|
ESD/EMP Protection |
Air: ±8kV, Contact: ±4kV |
|
Ambient Operating Temperature |
-10 to 40°C (14 to 104°F) |
|
Ambient Operating Humidity |
5 to 95% non-condensing |
|
Certifications |
CE, FCC, IC |
|
Button |
(1) Factory-reset |
|
Software |
|
VLAN |
802.1Q |
|
Guest Traffic Isolation |
Yes |
|
Application Requirements |
UniFi Network Version 9.0.108 and later |

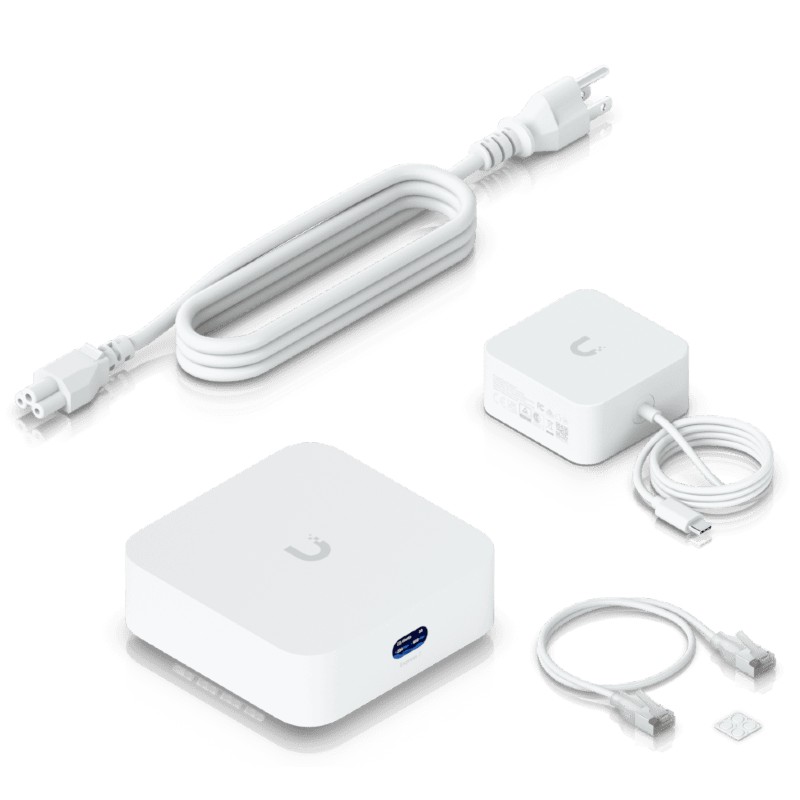

| Package Contents: |
|---|
| 1 x UX7
|
| 1 x Power Supply USB type C (5V DC/5A)
|
| 1 x AC Cable
|
| 1 x Ethernet cable |
|
