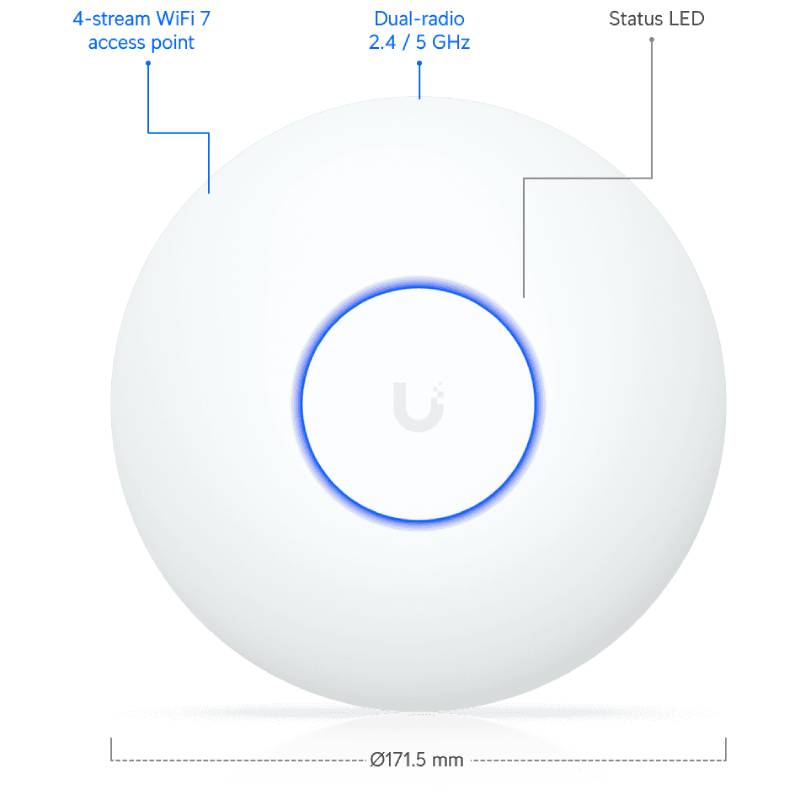

U7-Lite - Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
The U7-Lite is a next-generation Wi-Fi 7 access point designed to deliver ultra-fast, reliable wireless performance for homes and small businesses.
Featuring cutting-edge 802.11be technology, it offers lightning-fast speeds, lower latency, and seamless connectivity for the most demanding modern devices.
With a sleek, compact design and easy integration into the UniFi ecosystem, the U7-Lite brings enterprise-grade Wi-Fi to your fingertips.
|
Specifications: |
|

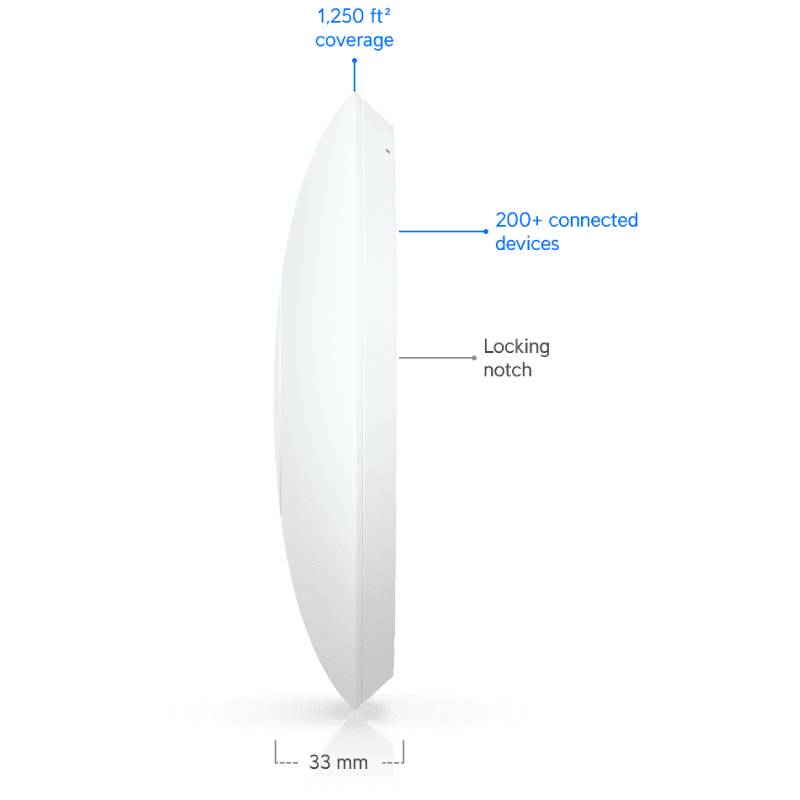

Dimensions |
Ø171.5 x 33 mm |
|
WiFi Standard |
WiFi 7 |
|
Spatial Streams |
4 |
|
Coverage Area |
115 m² (1,250 ft²) |
|
Max. Client Count |
200+ |
|
Uplink |
2.5 GbE |
|
Mounting Locations |
Ceiling, wall |
|

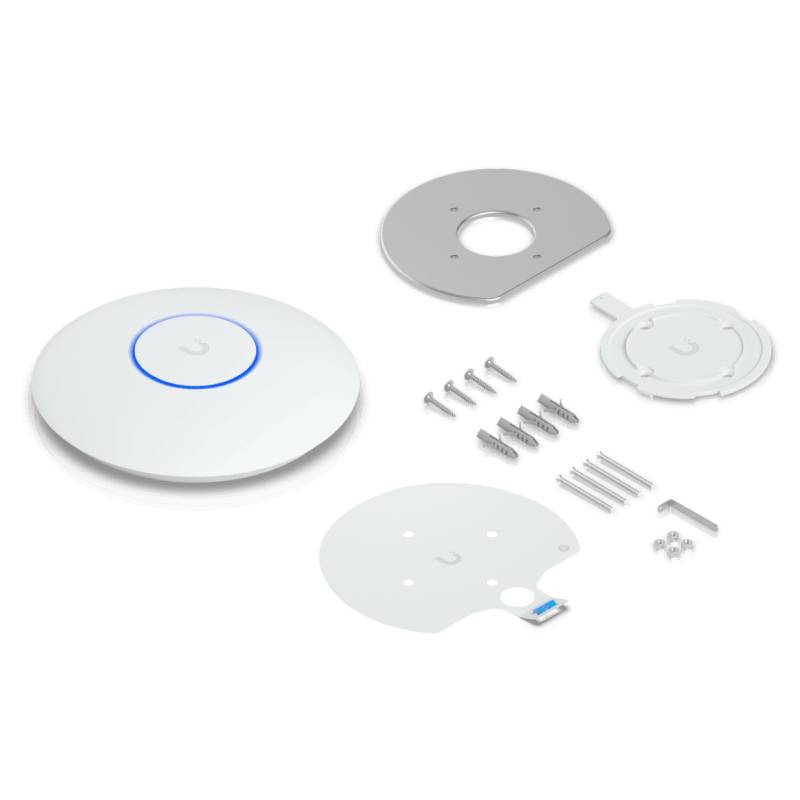

Mounting Plate |
Plastic mounting plate (Included) |
|
Power Method |
PoE |
|
Performance |
|
MIMO |
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
|
Max. Data Rate |
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40) |
|
Antenna Gain |
5 GHz: 5 dBi
2.4 GHz: 4 dBi |
|
Max. TX Power |
5 GHz: 24 dBm
2.4 GHz: 23 dBm |
|
Max. BSSIDs |
8 per Radio |
|
Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
Hardware |
|
Max. Power Consumption |
13W |
|
Supported Voltage Range |
42.5—57V DC |
|

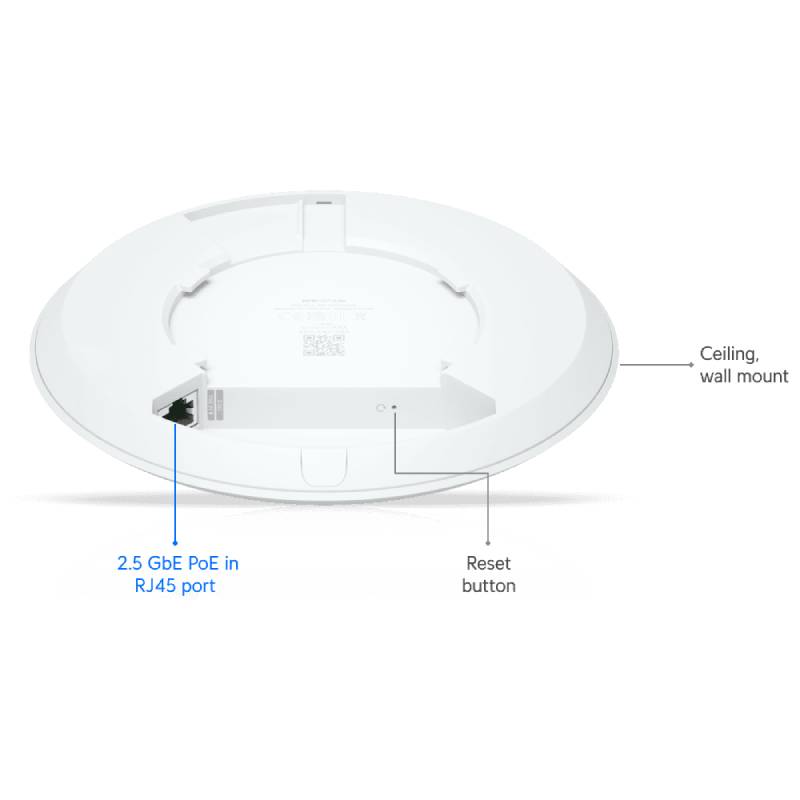

Networking Interface |
(1) 2.5 GbE RJ45 port |
|
Weight |
313 g |
|
Ethernet |
Enclosure Material: UV-stabilized polycarbonate |
|
Mount Material |
UV-stabilized polycarbonate, galvanized steel (SGCC) |
|
LEDs |
System: White/Blue |
|
Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
|
Certifications |
CE, FCC, IC |
|
Ambient Operating Temperature |
-30°C to 40°C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
Software |
|
Application Requirements |
UniFi Network Version 9.0.114 and later |
|
UniFi OS |
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later |
|
