EZ-OM24S05ISM

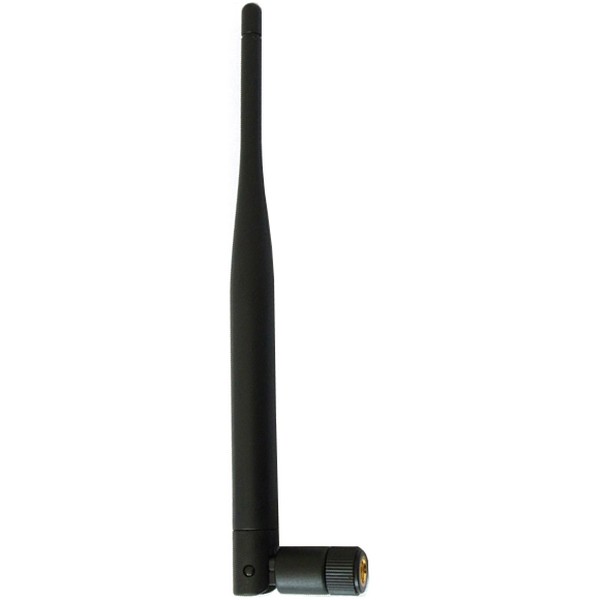

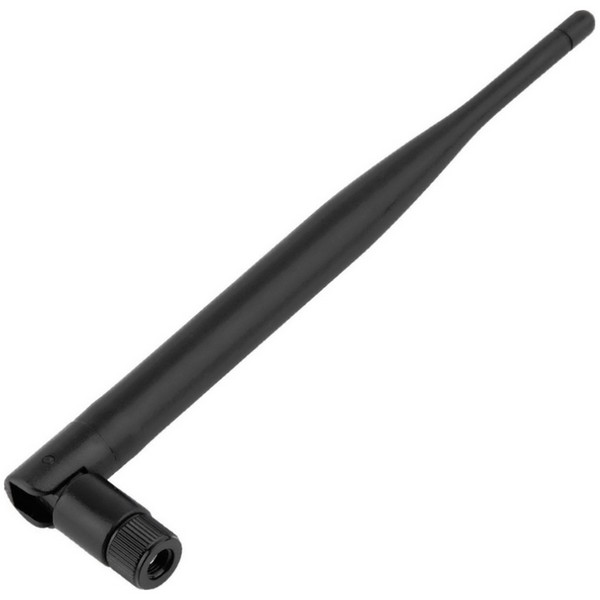

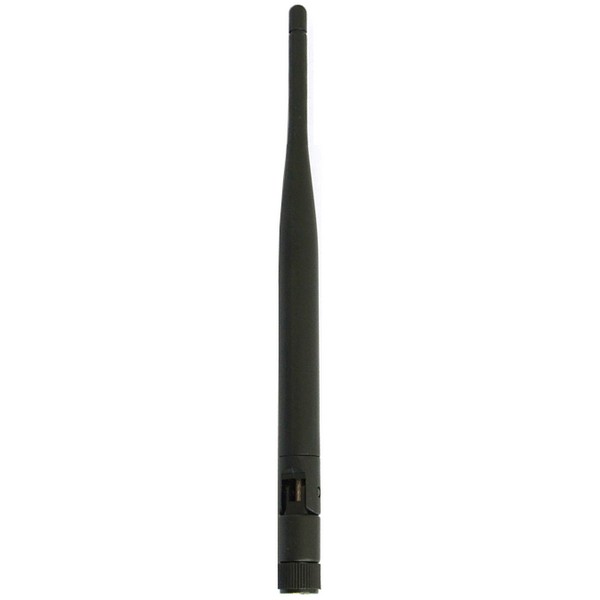

The new OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated SMA Male Connector.
The gain of this antenna is 5dBi and comes with 50° of Vertical BeamWidth.
The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.
The antenna is targeted for MESH applications and is manufactured to mount directly on the indoor or outdoor case of the electronics.
It is only 19cm in length and is available with SMA Connector (Female thread / Male center pin.)
|
Specs: |
Min |
Typ |
Max |
Units |
|
Frequency |
2400 |
- |
2483 |
MHz |
|
Gain |
5.0 |
5.5 |
6.0 |
dBi |
|
Ver Beamwidth |
|
50° |
|
Deg |
|
Hor Beamwidth |
|
360° |
|
Deg |
|
VSWR |
|
1.5:1 |
|
|
|
Impedance |
|
50 |
|
Ohm |
|
Power |
|
|
10 |
Watt |
|
Temp |
-10 |
|
+70 |
Deg C |
|
Connector |
|
SMA |
|
|
|
Weight |
|
27 |
|
gr |
|
Dims |
|
190 x 14D |
|
mm |
|
Connector |
|
SMA Male |
 |
Female thread
Male center pin |
