Connector / Adapter » MMCX Connector » EZ-MMCX100

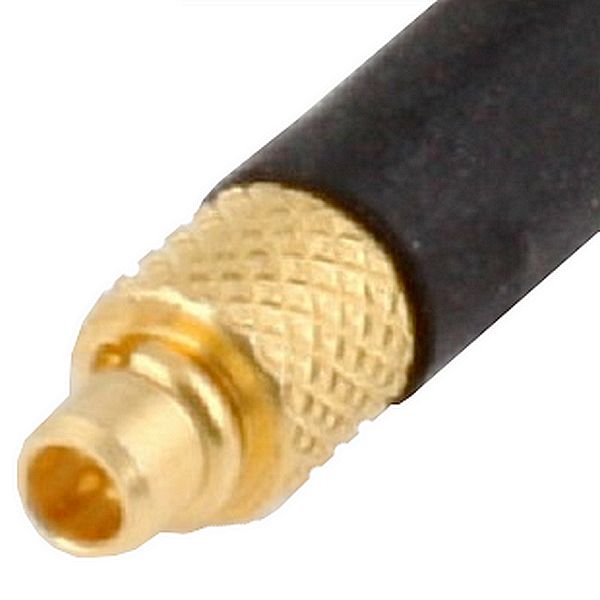

EZ-MMCX100, MMCX Straight Male Crimp for 100, RG-174 series cable
Price: 0,76€
Prices exclude VAT
In Stock: 5
Checking vendor inventory...
Order Qty:
Product Details
PID:1805
SKU:EZ-MMCX100
UPC:728615668629
Weight:1 g
Return Policy
Refund:20 days
Store Credit:40 days
Repair / Warranty:12 months

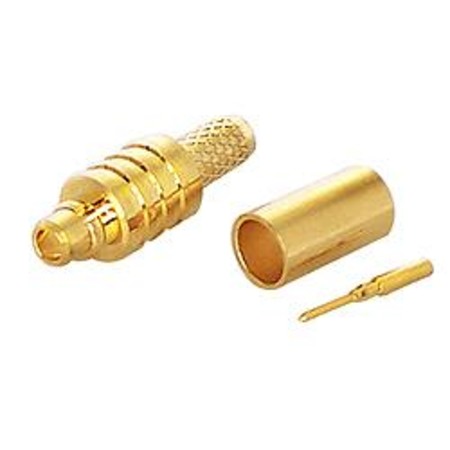

EZ-MMCX100 - MMCX straight Crimp connector for 100, RG-174 series cable.

Part Material Finish
Body Brass Gold
Center Pin Bronze Gold
Crimp Tube Annealed Copper Gold
Dielectric Teflon n/a
Specifications :
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Connector
MMCX
Male body
Male center pin
