Antenna 5.xGHz » PA58-19
19dB 5GHz Tri-Band Flat Panel
[PA58-19]
The product is
no longer available
Prices exclude VAT

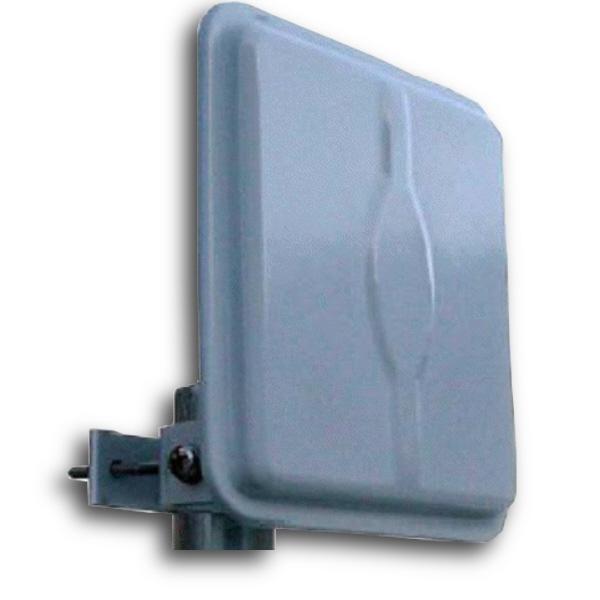

19dB 5GHz Tri-Band Flat Panel

The 5GHz Tri-Band Flat Panel Directional antennas by Pacific Wireless offer high gain in a thin low profile package.
The antenna frequency range is from 5150 to 5850 MHz and are available in 19dBi and 24dBi models.
The antennas can be used in Horizontal or Vertical Polarization with beamwidths of 16 degrees for the 19dBi model and 8 degrees for the 24dBi model.

The PA58 Flat Panel Antennas come equipped with die cast aluminum brackets which afford +/- 45 deg up or down tilt adjustment and stainless steel hardware which assure a long service life. The antennas can be surface mounted or pole mounted. The antenna comes with an integral N Female connector standard and are constructed of a gray color UV Resistant ABS plastic radome with an aluminum backplate.

Features

  • High Gain / Low Profile / Tri Band
  • Pole Mount or Surface Mount
  • Rugged and Weatherproof
  • Vertical or Horizontal Polarization
  • Type N Female Connector

Applications

  • 5GHz Wireless LAN Applications
  • Client Antennas
  • 802.11a Applications
  • OEM wireless data
