Aerial.net :: EZ-CG2015, RJ-45 Cable Gland M20x1.5

RJ45 / Ethernet » EZ-CG2015

EZ-CG2015, RJ-45 Cable Gland M20x1.5 - 1 pc
[1890][EZ-CG2015]

Price: 0,39€

Prices exclude VAT

In Stock: 100

Order Qty:

UPC:	728615667493

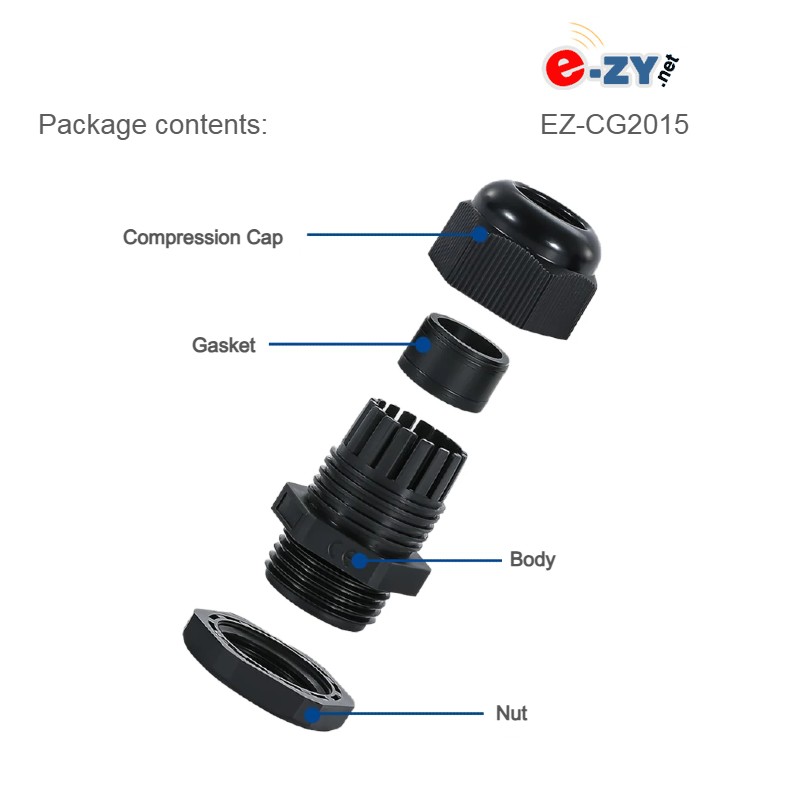

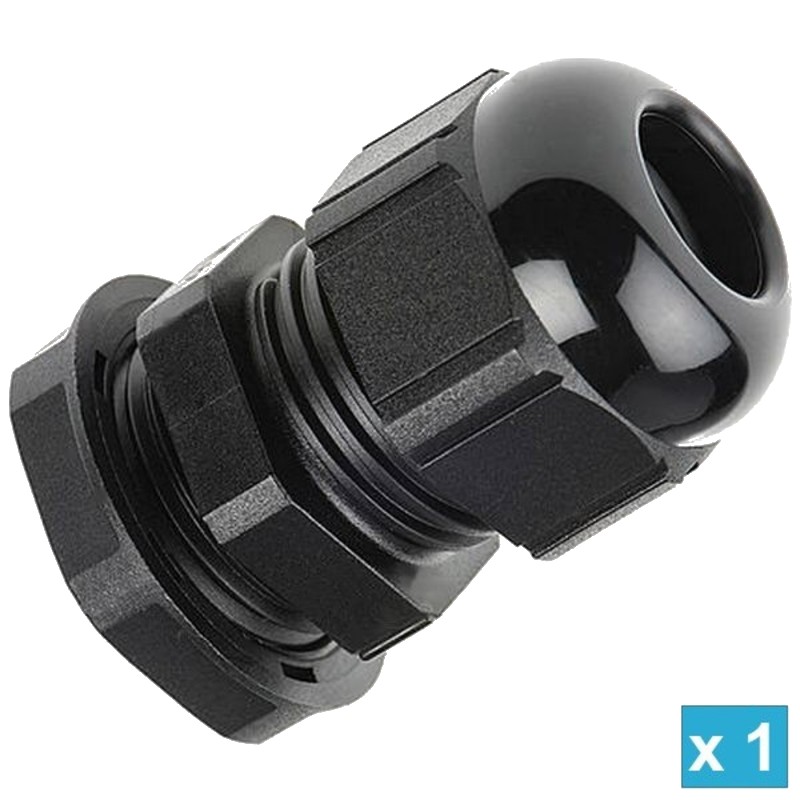

EZ-CG2015 - M20x1.5 Cable Gland

The RJ45 Field Installable Feedthru system is used to waterproof cable entries into outdoor enclosures to IP68 waterproofing standards.

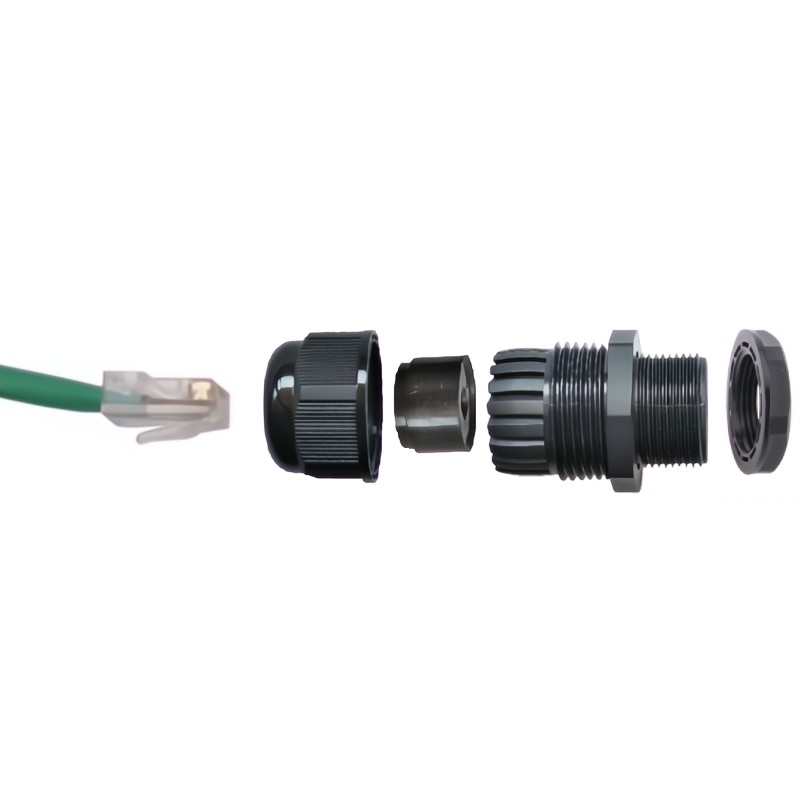

The unique design is "Field Installable" because it accepts a fully pre-assembled ethernet cable connector.

There is no need to terminate the cable during installation.

This gives the installer flexibility to use standard pre-assembled ethernet cables.

Note: Installation on lan cables without boots / strain relief RJ45 connectors

Product Links:
Datasheet

Specifications:
Part #	EZ-CG2015
Thread Designation	M20 x 1.5
Nominal Thread Diameter	20 mm
Thread Pitch	1.5 mm
Compression Cap Thread Length	11 mm
Hex Nut Thread length	8 mm
Material	Polyamide (Nylon)
Color	Black
Weight	9 g
Installation & Clamping
Panel Cut-out / Clearance Hole	Approx. 20.2 mm to 20.5 mm
Cable Clamping Range	8 mm - 13 mm Outer Diameter
Wrench Size (Across Flats)	23 mm Compression Cap 27 mm Hex Nut

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
