CAT5/6 - RJ45 » Connectors » LY-US005

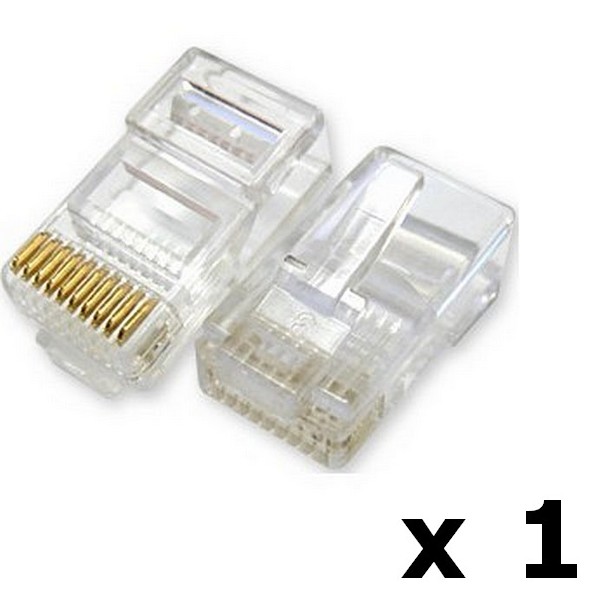

EuroLan conector UTP RJ45, Cat.5e - 1 pc
[LY-US005]
The product is
no longer available
Prices exclude VAT

EuroLan conector UTP RJ45, Cat.5e - 1 pc

Description :

• The 8P8C RJ45 plug is suitable for Modular applications and features Gold Flash on contacts for optimum data transmission.

Specifications:
Device:
Type: RJ45 Cat5 Plug
Style:  Solid UTP Plug
Materials:
Contactl: Phosphor Bronze
Contacts: Gold Flash over Nickel underplate.
Housing: Polycarbonate
Electrical:
Contact Current Rating: 1.5 Amps
Dielectric Voltage:  1000V AC
Insulation Resistance: 500MOhms Min

Pin T568A
pair
T568B
pair
10BASE-T
100BASE-TX
1000BASE-T
signal ID
Wire T568A
color
T568B
color
Pins on plug face
1 3 2 TX+ DA+ tip Pair 3 Tip
white/green stripe
Pair 2 Tip
white/orange stripe
2 3 2 TX− DA− ring Pair 3 Ring
green solid
Pair 2 Ring
orange solid
3 2 3 RX+ DB+ tip Pair 2 Tip
white/orange stripe
Pair 3 Tip
white/green stripe
4 1 1 DC+ ring Pair 1 Ring
blue solid
Pair 1 Ring
blue solid
5 1 1 DC− tip Pair 1 Tip
white/blue stripe
Pair 1 Tip
white/blue stripe
6 2 3 RX− DB− ring Pair 2 Ring
orange solid
Pair 3 Ring
green solid
7 4 4 DD+ tip Pair 4 Tip
white/brown stripe
Pair 4 Tip
white/brown stripe
8 4 4 DD− ring Pair 4 Ring
brown solid
Pair 4 Ring
brown solid


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
