CAT5/6 - RJ45 » Connectors » AC-RJ45DS50

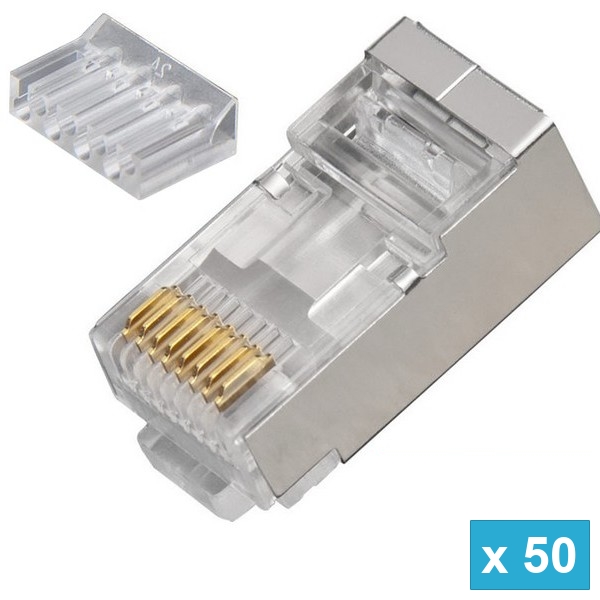

RJ45 Shielded Cat.6 2-Piece Connector - 50 pcs
[AC-RJ45DS50]
Price: 11,12€
 Order or Qty  Price
 > 500€  5+   10,90€
 > 1000€  10+   10,68€
 > 2000€  20+   10,45€
 > 5000€  40+   10,23€
 > 10000€  100+   10,01€
Prices exclude VAT

RJ45 Shielded Cat.6 2-Piece Connector - 50 pcs

No Stock
Order Qty:

Description:

50 Pcs pack

The AC-RJ45DS is a 2 piece shielded system makes terminating CAT6 quick & easy.

The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration.

Simply flush cut the conductors and slide assembly into the connector and terminate.

  • Eight conductor mod plug with loading bar
  • For conductors with an O.D. Range of up to 1.3mm
  • For solid conductors only
  • Max cable jacket O.D. 7.3mm
  • RoHS & UL Compliant
Electrical
1  Contact Resistance ≤20m Ohm
2 Insulation resistance ≥1000MΩ
3 Dielectric Strength 1000V/DC 60s can't spark over
Mechanical
1 Operating temperature -40°C to +70 °C
2 Relative Humidity <95% (at 25°C)
3 Durability 750 mating cycles min
Material
1 Housing Polycarbonate (PC); Flammability Class: UL 94V-0 or UL 94V-2
2 Contacts Phosphor bronze, Nickel plating followed with gold plating: 1u to 50u micro-inch
3 Shielding Housing Brass with nickel plating or steel with nickel plating


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
