Description:

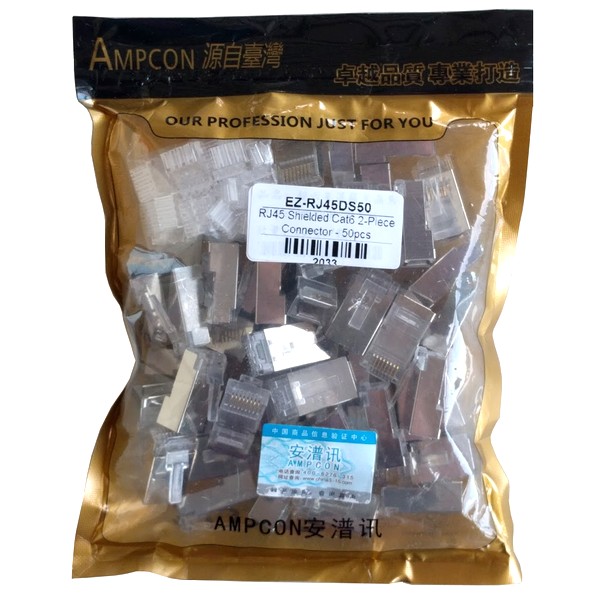

50 Pcs pack

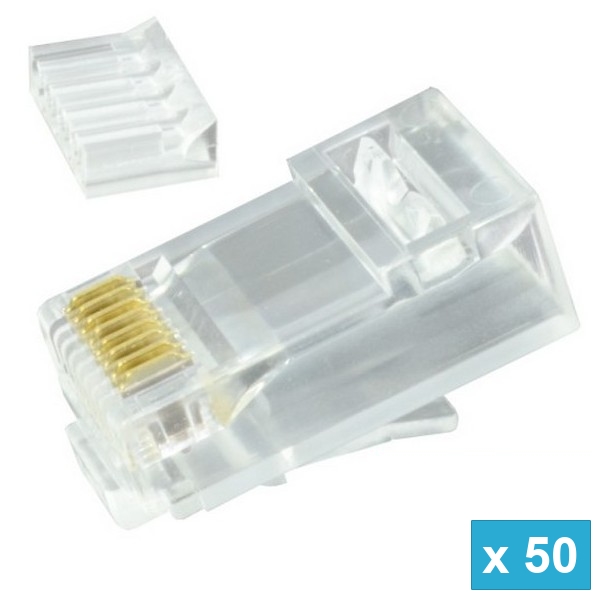

The AC-RJ45D is a 2 piece system makes terminating CAT6 quick & easy.
The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration.

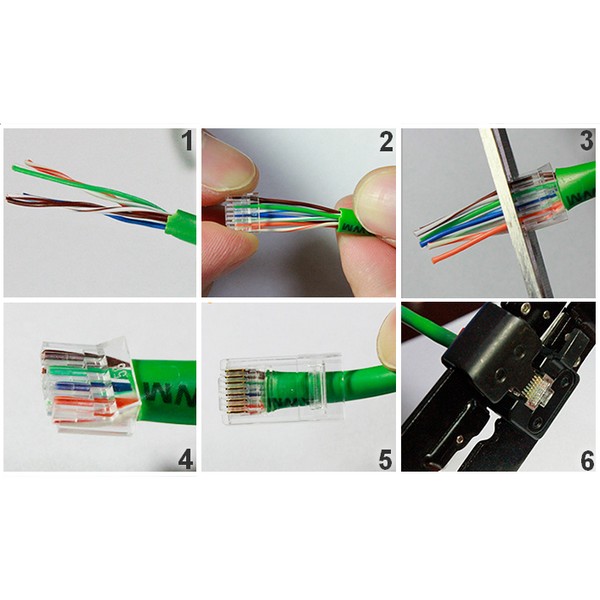

Simply flush cut the conductors and slide assembly into the connector and terminate.
-
Eight conductor mod plug with loading bar
-
For conductors with an O.D. Range of up to 1.3mm
-
For solid conductors only
-
Max cable jacket O.D. 7.3mm
-
RoHS & UL Compliant
|
Electrical |
|
1 |
Contact Resistance |
≤20m Ohm |
|
2 |
Insulation resistance |
≥1000MΩ |
|
3 |
Dielectric Strength |
1000V/DC 60s can't spark over |
|
Mechanical |
|
1 |
Operating temperature |
-40°C to +70 °C |
|
2 |
Relative Humidity |
<95% (at 25°C) |
|
3 |
Durability |
750 mating cycles min |
|
Material |
|
1 |
Housing |
Polycarbonate (PC); Flammability Class: UL 94V-0 or UL 94V-2 |
|
2 |
Contacts |
Phosphor bronze, Nickel plating followed with gold plating: 1u to 50u micro-inch |
