Power Supply » Industrial » AD-55A

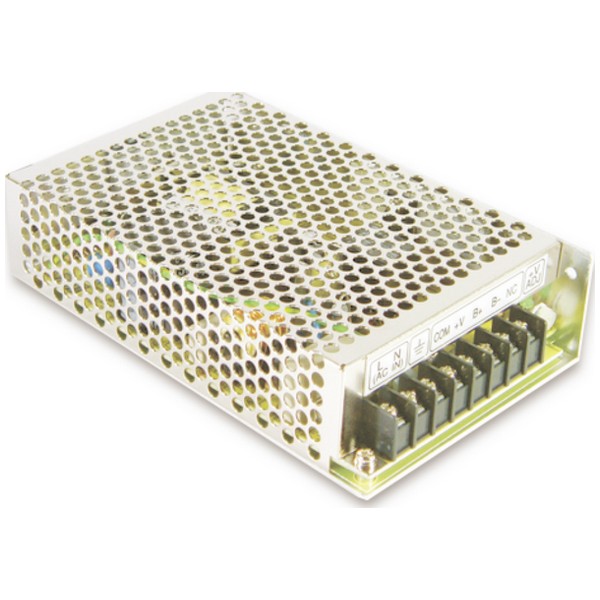

55W 13.8V/3.5A PS with Battery Charger (UPS Function)
[AD-55A]
Price: 20,63€
 Order or Qty  Price
 > 500€  5+   20,22€
 > 1000€  10+   19,80€
 > 2000€  20+   19,39€
 > 5000€  40+   18,98€
 > 10000€  100+   18,57€
Prices exclude VAT

55W 13.8V/3.5A PS with Battery Charger (UPS Function)

In Stock: 1
Order Qty:

The new AD-55A power supply is a specific purpose security series product with battery charger and UPS function.

Features:
 * Universal AC input / Full range
 * Protections: Short circuit / Overload / Over voltage
 * Battery low protections
 * Cooling by free air convection
 * 100% full load burn-in test
 * Fixed switching frequency at 45KHz

Note: Requires 12V battery for UPS function.

Specifications
Output Number CH1 CH2
DC Voltage 13.8V 13.4V
Rated Current 3.5A 0.23A
Current Range 0-4A ---
Rated Power 51.38W 51.38W
Input No Load Ripple&Noise 100mVp-p 100mVp-p
Voltage Adj. Range 12-14.5V ---
Voltage Tollerance +-1.0% ---
Line Regulation +-0.5% ---
Load Regulation +-0.5% ---



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
