Tools » POE-DCTR
POE-DCTR - PoE Detector - 802.af/at, 24v/48-56v Passive PoE
[2705][POE-DCTR]
Price: 12,00€
 Order or Qty  Price
 > 500€  5+   11,76€
 > 1000€  10+   11,52€
 > 2000€  20+   11,28€
 > 5000€  50+   11,04€
 > 10000€  100+   10,80€
Prices exclude VAT

POE-DCTR - PoE Detector - 802.af/at, 24v/48-56v Passive PoE

In Stock: 25
Order Qty:
UPC:728615666700

POE-DCTR - POE-Detector 802.3af/at/bt, 24v/48-56v Passive

Quickly identifies Power over Ethernet method and voltage; 802.3af/at/bt, passive, 24v, 48v-56v

Mode A or Mode B for all PoE switches and injectors

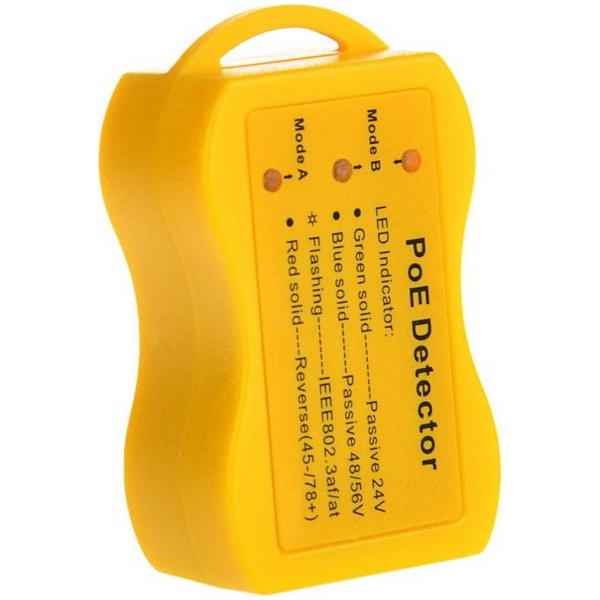

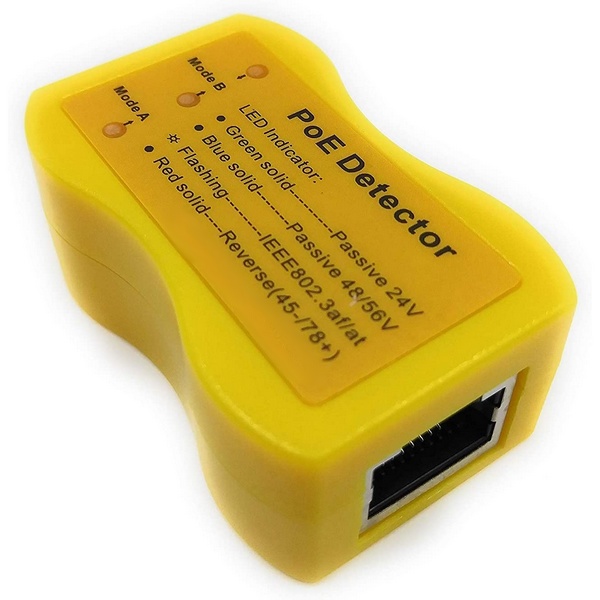

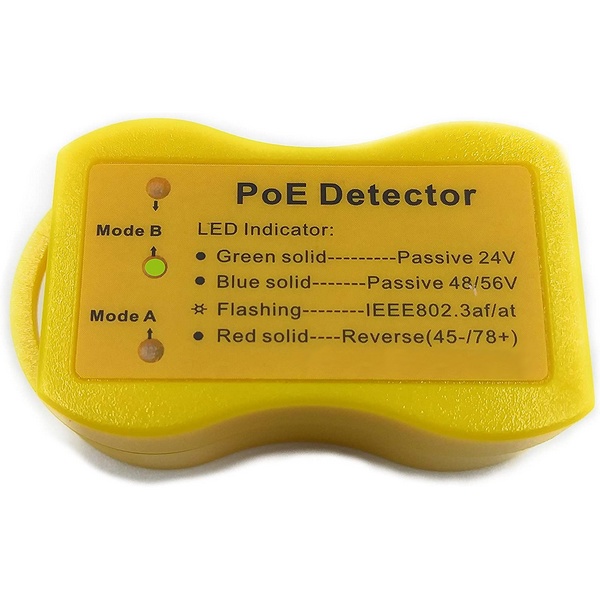

Find out what PoE method is available, the approximate voltage, and pinout and polarity via LED lights.

If you are far from a PoE switch or injector - this device will show if a port has power. The PoE switch will show a pulse indicating that the detector is plugged into a port - up to 100 meters away.

Safely install cameras, wifi access points, IP phones and more without damaging your device. Test your line prior to installing to instantly detect power.

The ergonomic design fits snug between two fingers so that you can hold it while on a ladder or in a tight space.

It's powered by POE so no need to worry about replacing batteries or charging.

Features:

  • Use with any PoE injector or PoE switch - 802.3af/at/bt or Passive PoE
  • Supports both Mode A and Mode B
  • Bright LED displays - see data sheet for specifics
  • Displays Power only, not data speed
  • Maximum input voltage - 56 volts

Specifications:
Part Number POE-DCTR
Power Source Self powered from PoE
PoE Standard 802.3 af/at
24v/48-46v Passive
Connector 1 x RJ45
Max Power 10mw
Operating Temp -10°C ~ +60°C
Dimensions 50 x 20 x 10mm
Weight 50gr


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
