Bulk Cable » EN-240-1
EN-240 Low Loss Cable - By the meter
[1163][EN-240-1]
Price: 1,30€
 Order or Qty  Price
 > 500€  5+   1,27€
 > 1000€  10+   1,25€
 > 2000€  20+   1,22€
 > 5000€  40+   1,20€
 > 10000€  100+   1,17€
Prices exclude VAT

EN-240 Low Loss Cable - By the meter

In Stock: 56
Order Qty:

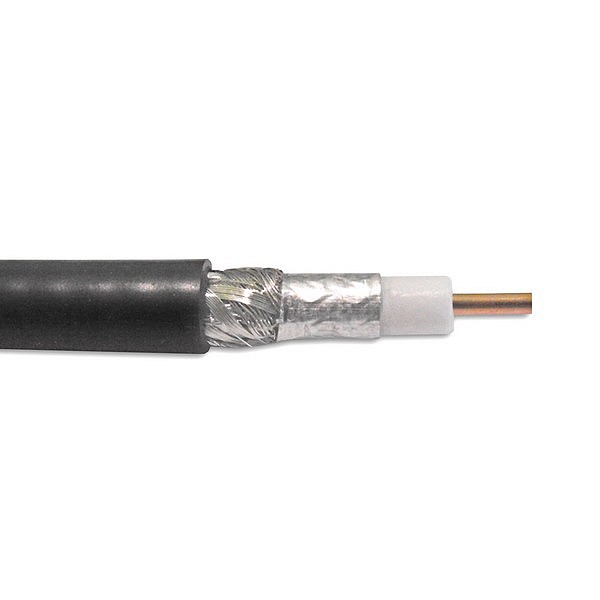

EN-240, coaxial cable by the meter.

EN-240 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.

It is constructed with a UV resistant polyethylene jacket for outdoor use.

This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.

Ehanced for usage from 2GHz up to 6GHz

Electrical  Specifications :
Cutoff Frequency 41 GHz
Velocity of Propagation 84%
Impedance 50 ohms
Capacitance 75pF/m
DC Resistance Inner Conductor 10.50 ohms/km
DC Resistance Outer Conductor 12.76 ohms/km
Peak Power 2.5 kW
Jack Spark 3000 Volts RMS
Cable Construction:
Inner Conductor Solid Bare Copper 1.40 mm
Dielectric Foam Polyethylene 3.60 mm
Outer Conductor Aluminum Tape 3.90 mm
Braid Tinned Copper. 4.60 mm
Jacket Black PVC/PE. 6.10 mm
Mechanical and Environmental Specifications:
Minimum Bend Radius 30 mm
Tensile Strength 18.2 kg
Cable Weight 0.077kg/m
Operating Temperature Range -40°C to +85°C


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
