Coaxial Cable » EN-100-500

Price: 209,09€

Prices exclude VAT

Order or Qty		Price
> 500€	5+	204,91€
> 1000€	10+	200,73€
> 2000€	20+	196,54€
> 5000€	40+	192,36€
> 10000€	100+	188,18€

In Stock: 2 pcs

Order Qty:

Product Details
PID:	935
SKU:	EN-100-500
UPC:	728615667974
Single unit:	29×25×23cm, 8.25 Kgs
Return Policy
Refund:	20 days
Store Credit:	40 days
Warranty:	12 months
Package Contents:
1 x 500m EN-100 spool

EN-100-500, EN-100 Low Loss Cable - 500m Spool

Name: EN-100-500, EN-100 Low Loss Cable - 500m Spool
Brand: e-zy.net
SKU: EN-100-500
Price: 250.91 EUR
Availability: InStock

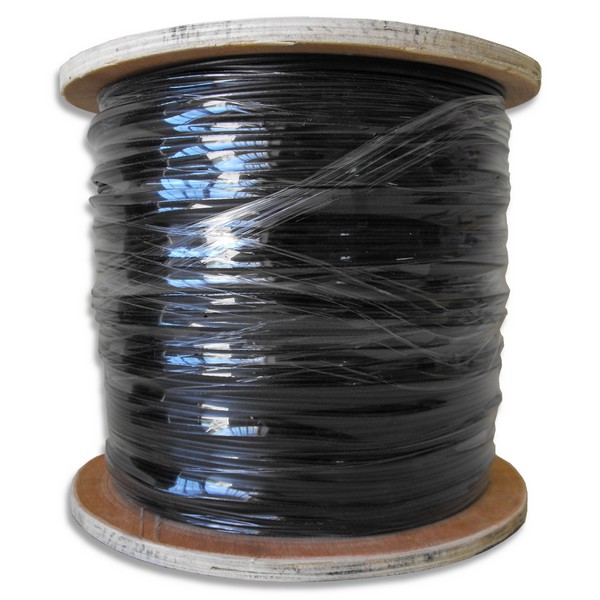

EN-100, 500 meter Spool.

EN-100 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.

It is constructed with a UV resistant polyethylene jacket for outdoor use.

This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.

Ehanced for usage from 2GHz up to 6GHz

Product Links:
Product Page	Datasheet

Electrical Specifications:
Cutoff Frequency	63 GHz
Velocity of Propagation	80%
Impedance	50 ohms
Capacitance	25.4 pF/ft (83.3 pF/m)
DC Resistance Inner Conductor	21.4 ohms/1000ft (70.2 ohms/km)
DC Resistance Outer Conductor	14.5 ohms/1000ft (47.5 ohms/km)
Peak Power	0.6 kW
Jack Spark	2000 Volts RMS

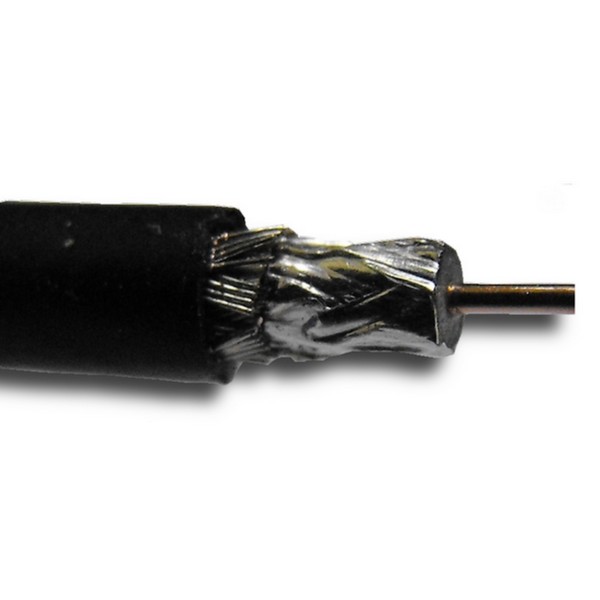

Cable Construction:
Inner Conductor	Solid Bare Copper 0.46 mm
Dielectric	Foam Polyethylene 1.52 mm
Outer Conductor	Aluminum Tape 1.65 mm
Capacitance	25.4 pF/ft (83.3 pF/m)
Braid	Tinned Copper. 2.11mm
Jacket	Black PVC/PE. 2.79mm
Mechanical and Environmental Specifications:
Minimum Bend Radius	6.25mm
Tensile Strength	15 lb (6.8 kg)
Cable Weight	0.18kg/m
Operating Temperature Range	-40°C to +85°C
