Outdoor 2.4GHz » PBE-M2-400

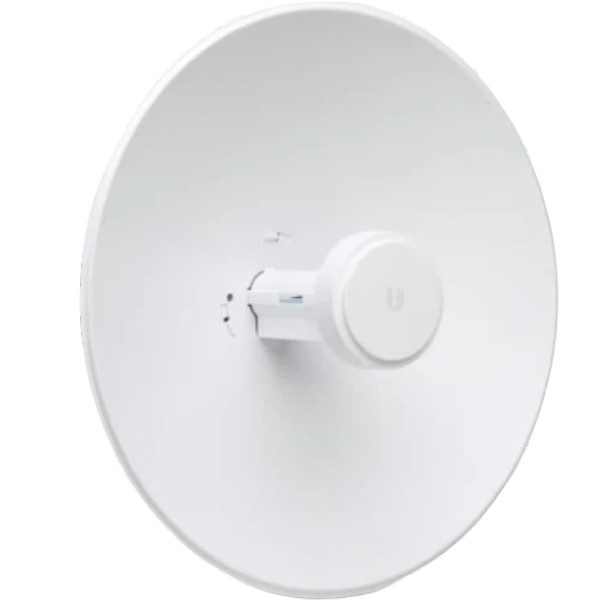

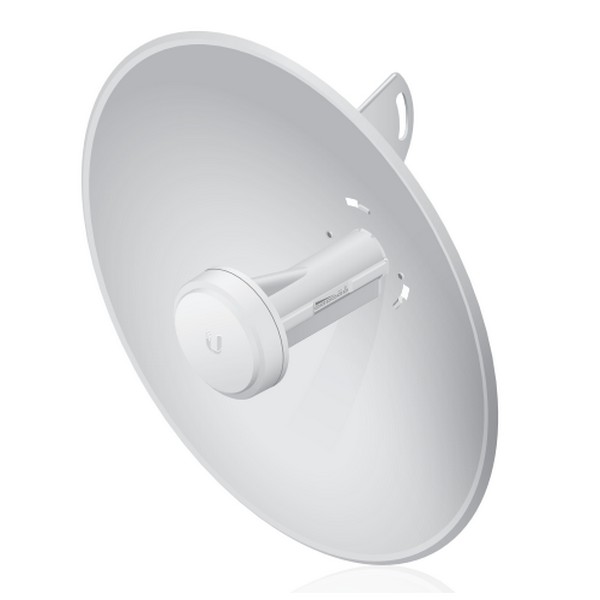

Ubiquiti PBE-M2-400, UISP airMAX PowerBeam M2 400mm
[1500][PBE-M2-400]
Price: 70,65€
 Order or Qty  Price
 > 500€  5+   69,94€
 > 1000€  10+   69,24€
 > 2000€  20+   68,53€
 > 5000€  40+   67,82€
 > 10000€  100+   67,12€
Prices exclude VAT

Ubiquiti PBE-M2-400, UISP airMAX PowerBeam M2 400mm

Ships in:
3-5 working days
Quantity: 32
Order Qty:
UPC:810354022609

PBE-M2-400

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna, this improves performance because it eliminates cable losses.

The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.

The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Specifications:
CPU Atheros MIPS 74KC, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Networking Interface one 10/100 Ethernet Port
Max TX 26 dBm
Polarization Dual Linear
Operating frequency 2405 - 2475
Gain 18 dBi
Dimensions (mm) 420 x 420 x 289 mm
Weight 1.795 kg
Power Supply 24V, 0.5A PoE
Power Method Passive PoE  (Pairs 4,5+; 7,8-)
Max. Power Consumption 6 W
Wind Loading 4.8 lbf @ 125 mph
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
