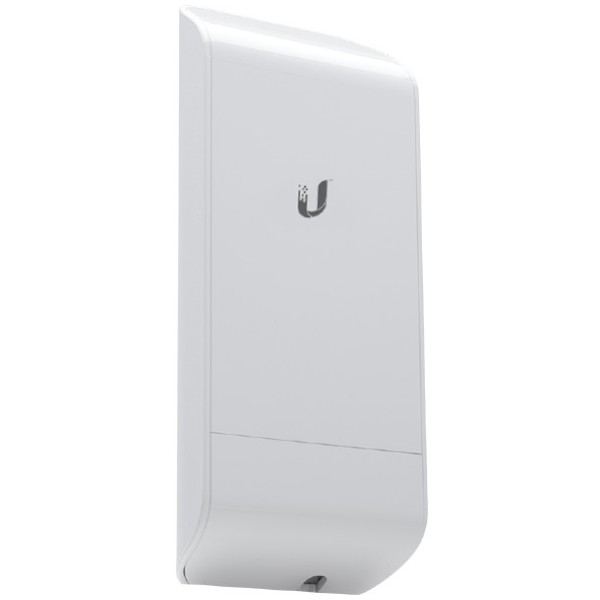

LocoM2
Performance Breakthrough
150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new Nanostation links significantly faster and farther than ever before.
New Leading-Edge Industrial Design
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
|
System Information : |
|
Processor Specs |
Atheros MIPS 24KC, 400MHz |
|
Memory Information |
32MB SDRAM, 8MB Flash |
|
Networking Interface |
10/100 BASE-TX Ethernet Interface |
|
Physical - Electrical - Environmental : |
|
Antenna |
Integrated MIMO 2x2 8dBi Dual Pol Ant |
|
TX Power |
23dBm, +/-2dB |
|
RX Sensitivity |
-96dBm +/-2dB |
|
Outdoor Range |
Over 15Km |
|
TCP/IP Throughput |
150Mbps+ |
|
Enclosure Size |
163 x 80 x 31mm |
|
Weight |
0.18Kgr |
|
Enclosure Characteristics |
Outdoor UV Stabalized Plastic |
|
Mounting Kit |
Pole Mounting Kit included |
|
Max Power Consumption |
5.5 Watts |
|
Power Supply |
24V, 0.5A Surge protection integraded |
|
Power Method |
Passive PoE (pairs 4,5+ 7,8-) |
|
Operating Temperature |
-23C to 80C |
|
Operating Humidity |
5 to 95% Condensing |
|
Wireless Approvals |
FCC Part 15.247, IC RS210, CE |
|
ROHS |
Yes |
