Outdoor 2.4GHz » 5.xGHz » NB-5G25(EU)
NB-5G25 NanoBridgeM5, AirMax AP-CPE
[NB-5G25(EU)]
The product is
no longer available
Prices exclude VAT

NB-5G25 NanoBridgeM5, AirMax AP-CPE

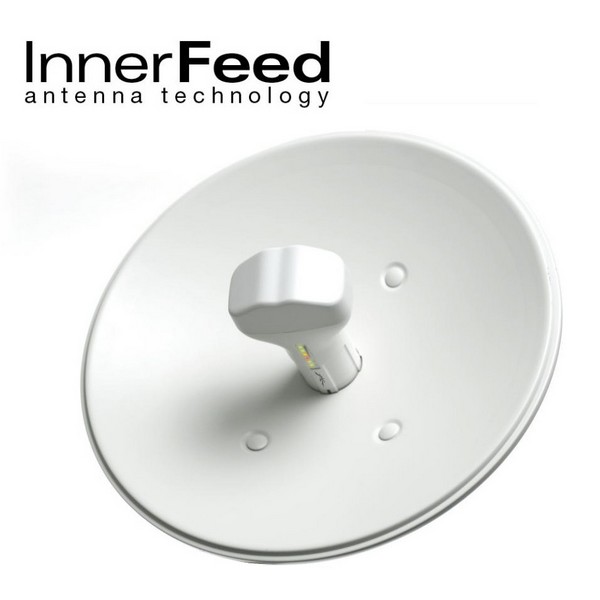

Patent Pending InnerFeed™ Antenna Technology

Provides breakthrough MIMO antenna cost/performance. Higher Antenna Gain and even more cost-effective.

Compact and Robust Product Design

Very small visible footprint. Mechanical design provides complete weatherproof performance. Activity and signal strength LED's provided for installers. Enhanced RF and Ethernet ESD/Surge protection enables prolonged operation in harshest environments.

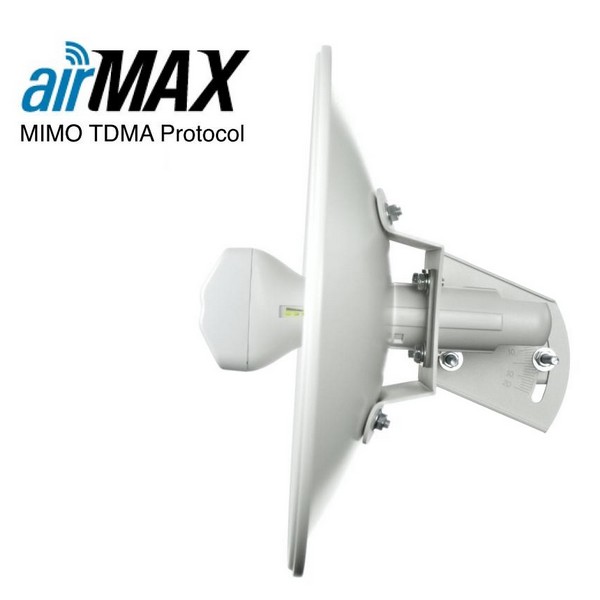

Breakthrough Wireless Performance, AirMax and AirControl Support

150+Mbps of real outdoor throughput and up to 20km+ range. NanoBridge M products utilize Ubiquiti's revolutionary AirMax™ TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, AirControl™ application allows operators to centrally manage 100's of devices.



System Information :
Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Regulatory / Compliance information :
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance YES
Physical - Electrical - Environmental :
Dimensions 420mm diameter (25dBi)
Weight 135g (feed), 680g(bracket),750g(dish)
Enclosure Characteristics Outdoor UV Stabalized Plastic
Mounting Kit Pole Mounting Kit included
Max Power Consumption 5.5 Watts
Power Supply 24V Carrier POE Adapter Included (POE-24)
Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature -30C to +75C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
Antenna Gain 25dBi
