AP7-Pro - WiFi 7 Tri-Band Access Point with 10 Gbps Ethernet

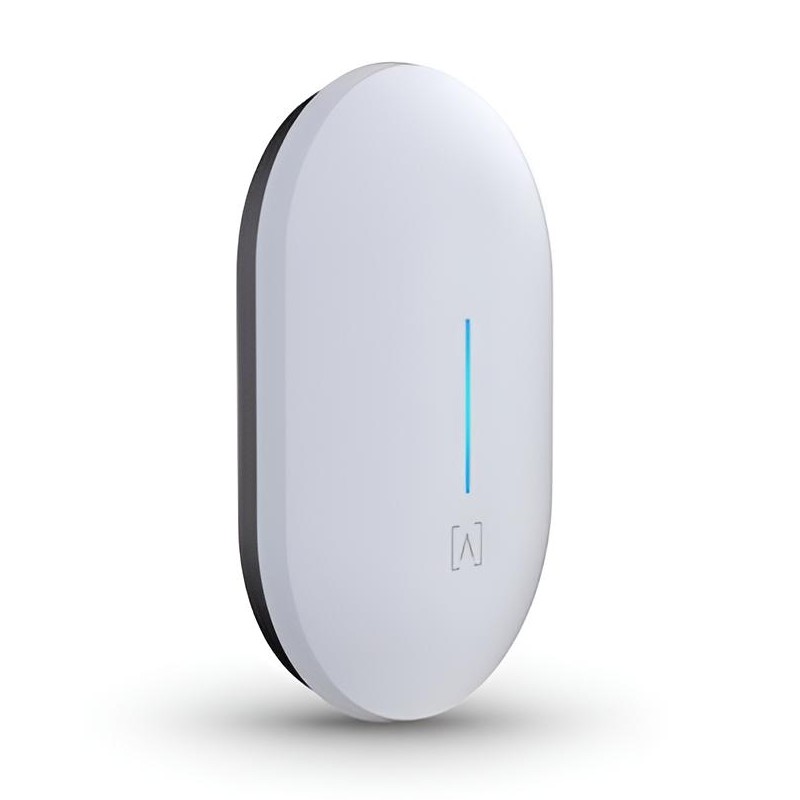

The Alta Labs AP7-Pro features an elegant, unobtrusive design for seamless integration into any environment.
PoE++ powering simplifies installation by eliminating the need for separate power sources.
Its scalable cloud management allows for real-time network expansion and adjustment without interruption, providing a flexible, future-proof solution for growing connectivity demands.
Key features include WiFi 7 with high throughput and low latency, a 10 Gbps Ethernet port, and tri-band operation (2.4 / 5 / 6 GHz) for effective load distribution.
It supports advanced mesh networking, seamless roaming, Passpoint, and carrier offload.
The AP7-Pro offers cloud-based management, a mobile app, an integrated DPI engine for traffic filtering, hotspot functionality, and multi-SSID management.
|
Specifications: |
|
Dimensions |
230 x 151.3 x 36.9 mm |
|
Weight |
1.04 kg |
|
Enclosure |
Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
|
Mount Material |
Ceiling/Wall/Drop-Ceiling: Steel |
|
Weatherproofing |
None |
|
Hardware: |
|
Network Interface |
Ethernet, WiFi, Bluetooth |
|
Management Interface |
(1) 10 Gbps RJ45 Port |
|
Button(s) |
Reset/Factory Reset |
|
LED |
RGB |
|
Power Method |
PoE+ for up to 2.5 Gbps, PoE++ for up to 10 Gbps |
|
Power Supply |
PoE+ or PoE++ Enabled Network Switch, or 48V, 1.25A PoE Adapter (Optional) |
|
Supported Voltage Range |
42.5-57V DC |
|
Power Consumption |
Max: 30 W for POE+, 35 W for POE++, 12 W Typical |
|
MIMO |
6 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA; 5 GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA
2.4 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA; Explicit TX Beam-Forming |
|
Throughput Rate |
2.4 GHz: Up to 649 Mbps, 5 GHz: Up to 8.6 Gbps, 6 GHz: Up to 5.8 Gbps |
|
Antenna Gain |
2.4 GHz: 4 dBi, 5 GHz: 4.75 dBi, 6 GHz: 4.5 dBi |
|
Mounting |
Wall, Ceiling, Drop-Ceiling, Table Top |
|
Operating Temperature |
-30 to 50° C |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, UK, FCC, IC |
|
Max Physical Transmit Power: |
|
Max. Transmit Power |
2.4 / 5 GHz: 30 dBm EIRP, 6 GHz: 27 dBm EIRP |
