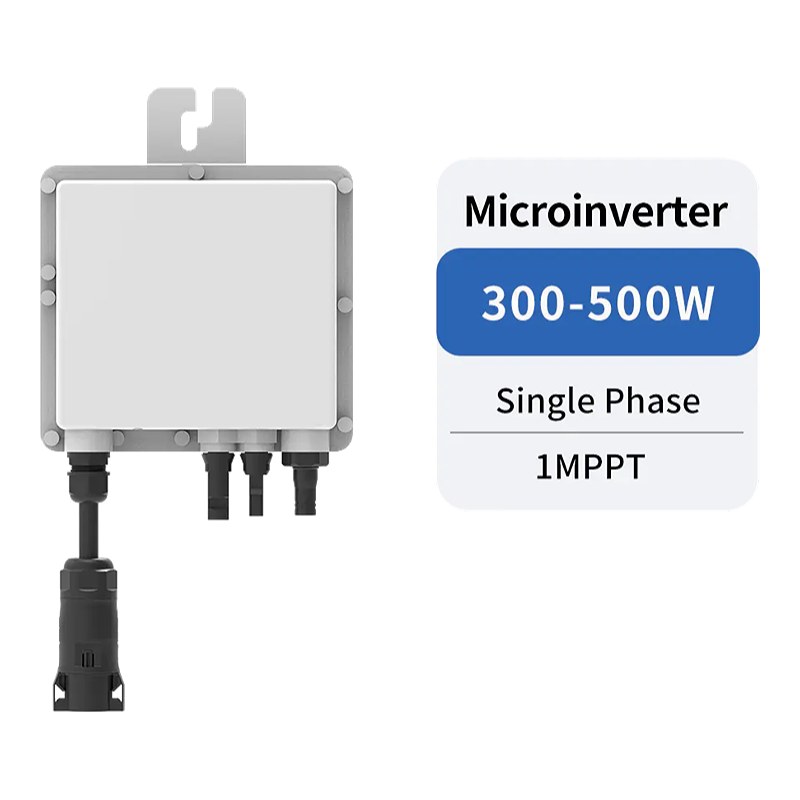

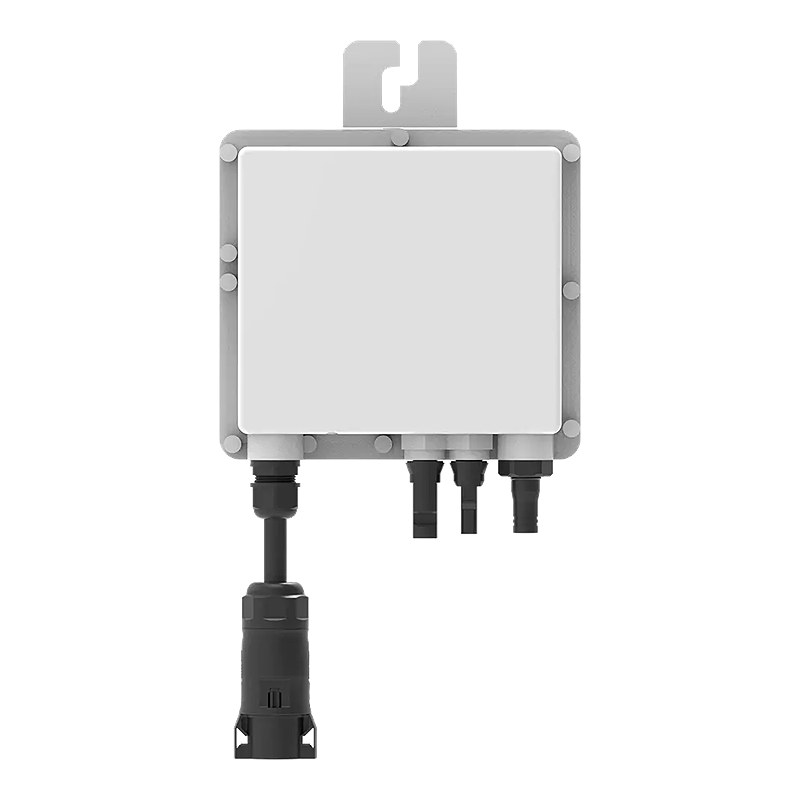

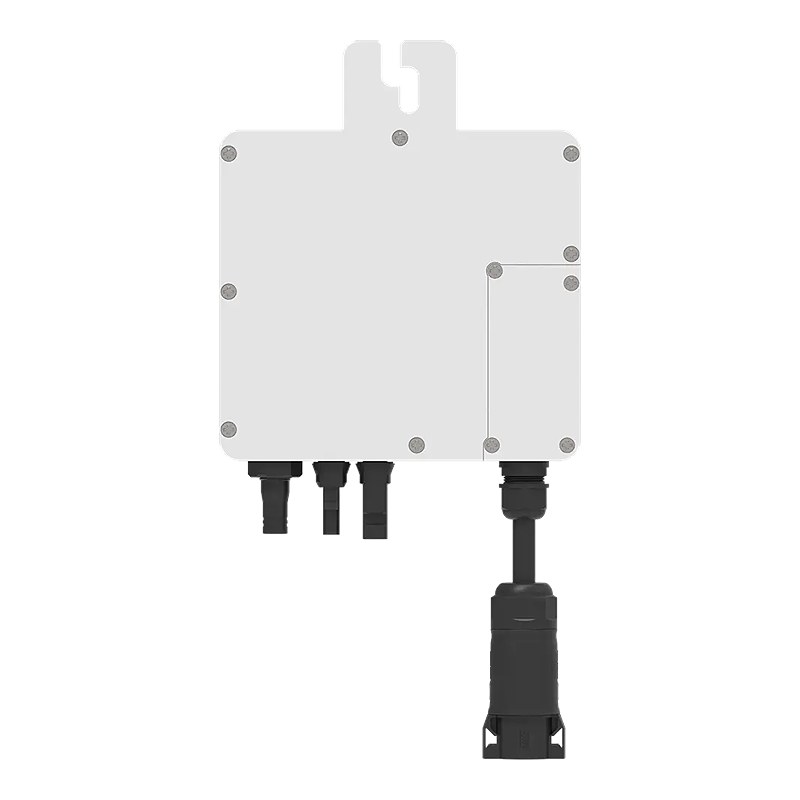

SUN-M50G4-EU-Q0 - 500W Microinverter, 1 MPPT
A DEYE microinverter with 1 MPPT, designed for quick-plug balcony PV systems.
It supports a maximum PV input power of 210-700W and delivers a rated AC output active power of 500W.
Featuring IP67 protection and Wi-Fi communication, it offers module-level monitoring.
|
1 MPP tracker, module level monitoring |
|
IP67 protection degree |
|
WIFI communication |
|
Rapid shutdown function |
|
Easy installation, suitable for quick-plug balcony PV system |
|
<100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety |
|
Complete NS protection with self-check function |
|
25 years design lifetime and 15 years warranty |
|
With integrate WIFI |
|
Specifications |
|
Model |
SUN-M50G4-EU-Q0 |
|
PV String Input Data |
|
Max. PV Input Power(W) |
210-700(1 Piece) |
|
Max. PV Input Voltage(V) |
60 |
|
Start-up Voltage(V) |
20 |
|
MPPT voltage range(V) |
25-55 |
|
Rated PV Input voltage(V) |
42.5 |
|
Max. Input Short-Circuit Current (A) |
19.5 |
|
Max. Operating PV Input Current(A) |
13 |
|
No. of MPP Trackers/No. of String per MPP Tracker |
1/1 |
|
AC Output Side |
|
Rated AC Output Active Power(W) |
500 |
|
Max.AC Output Apparent Power(VA) |
500 |
|
Rated AC output current (A) |
2.3/2.2 |
|
Max.AC Output Current(A) |
2.3/2.2 |
|
Rated output voltage/range (V) |
220/230 0.85Un-1.1Un |
|
Grid Connection Form |
L/N/PE |
|
Rated Output Grid Frequency/range(Hz) |
50/45-55, 60/55-65 |
|
Max. unit per branch |
10 |
|
Power Factor Adjustment Range |
0.9 leading to 0.9 lagging |
|
Total Current Harmonic Distortion THDi |
<3% |
|
DC Injection Current |
<0.5%ln |
|
Efficiency |
|
Max. Efficiency |
96.5% |
|
Euro Efficiency |
96.0% |
|
MPPT Efficiency |
>99% |
|
Equipment Protection |
|
DC Polarity Reverse Connection Protection |
YES |
|
AC Output Overcurrent Protection |
YES |
|
AC Output Overvoltage Protection |
YES |
|
AC Output Short Circuit Protection |
YES |
|
Thermal Protection |
YES |
|
DC Terminal Insulation Impedance Monitoring |
YES |
|
Power Network Monitoring |
YES |
|
Island protection monitoring |
YES |
|
Earth Fault Detection |
YES |
|
Overvoltage Load Drop Protection |
YES |
|
General Data |
|
Operating Temperature Range (°C) |
-40 to +65℃, >45℃ Derating |
|
Permissible Ambient Humidity |
0~100% |
|
Permissible Altitude (m) |
2000m |
|
Noise (dB) |
≤ 25 |
|
Ingress Protection(IP) Rating |
IP 67 |
|
Inverter Topology |
Isolated |
|
Over Voltage Category |
OVC II(DC),OVC III(AC) |
|
Communication |
Wi-Fi |
|
Cabinet Size(W*H*Dmm) |
173×158.5×31.5 (Excluding connectors and brackets) |
|
Weight (kg) |
1.85 |
|
Warranty |
15 Years |
|
Type Of Cooling |
natural cooling |
|
Grid Regulation |
IEC 61727,IEC 62116,CEI 0-21,EN 50549, NRS 097,RD 140,UNE 217002,G98,VDE-AR-N 4105 |
|
Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
