| Product Details |
|---|
| Code: | 3841 |
| SKU: | UA-G3-Pro-B |
| UPC: | 810084697580 |
| Weight: | 480 g |
| Return Policy |
|---|
| Refund: | 20 days |
| Store Credit: | 40 days |
| Warranty: | 24 months |

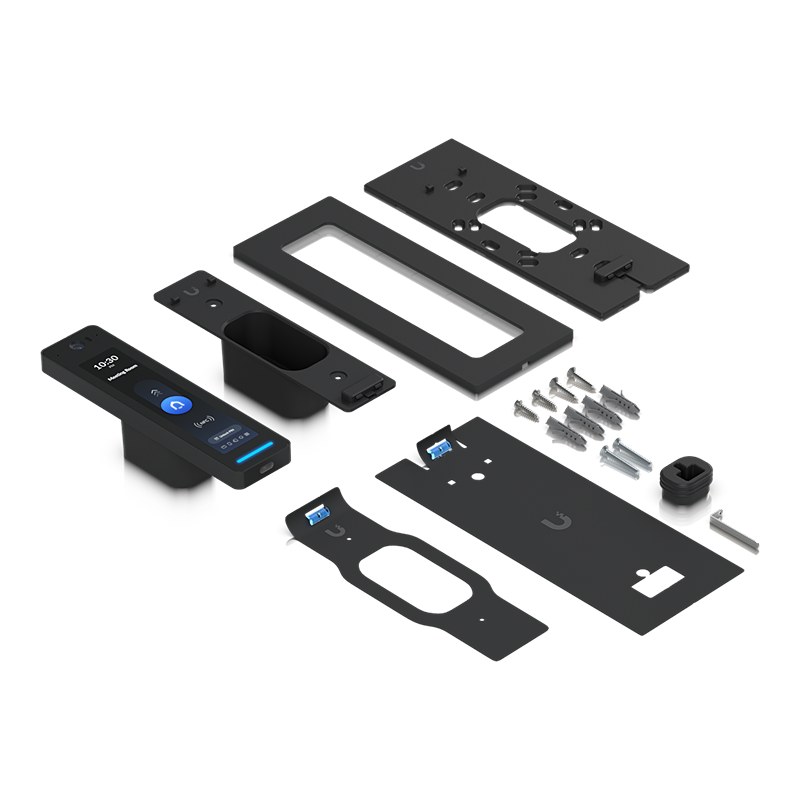

| Package Contents: |
|---|
| 1 x UA-G3-Pro-B |
| 1 x Wall Mounting Kit |
| 1 x Cable Rubber Seal |
| 1 x Release Tool |
|

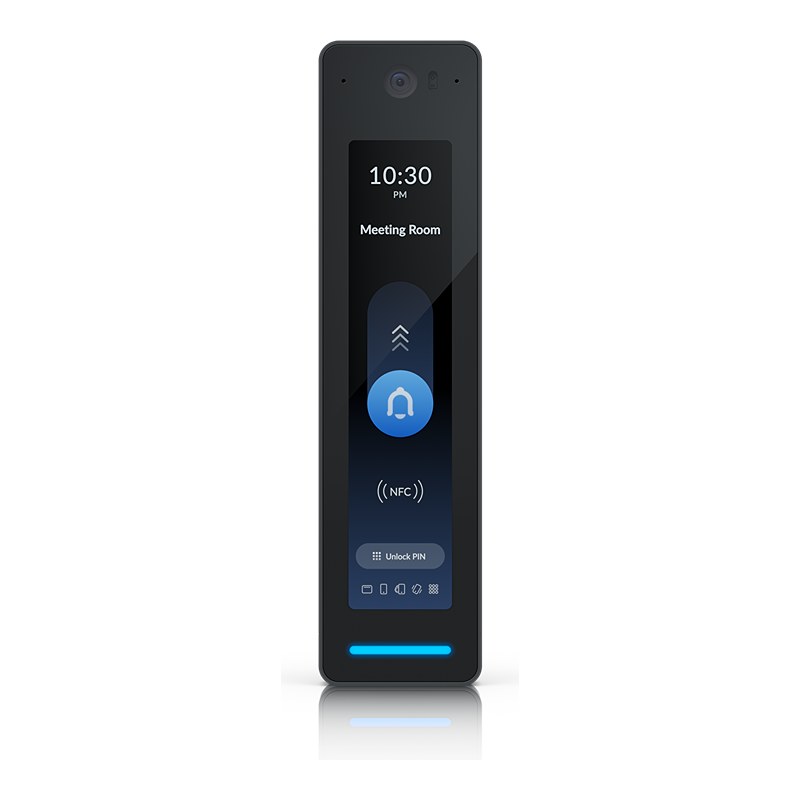

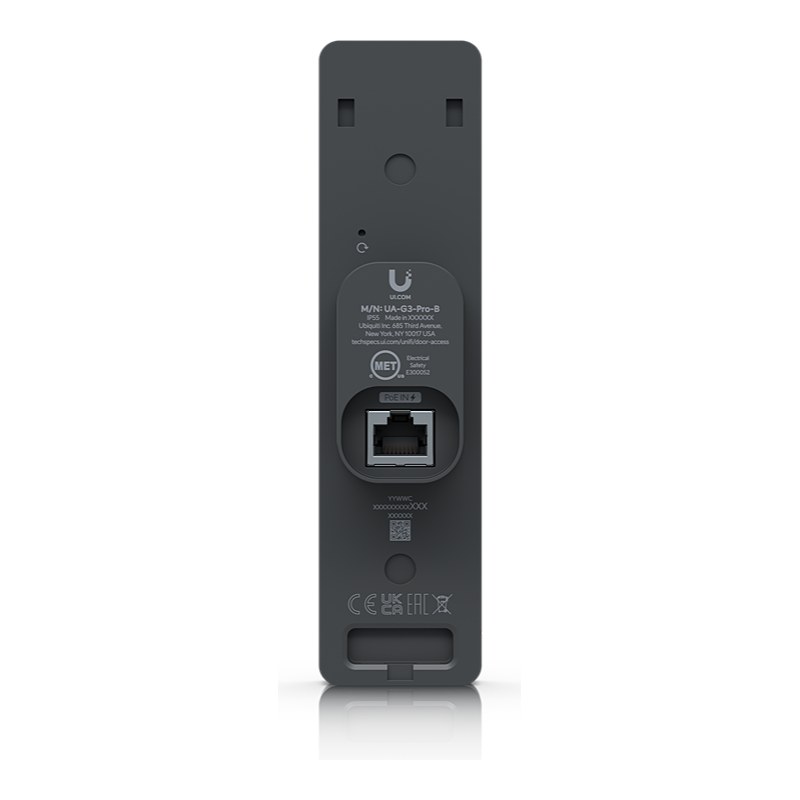

Ubiquiti UA-G3-Pro-B, UniFi Access Reader G3 Pro
UA-G3-Pro-B - UniFi Access Reader G3 Pro

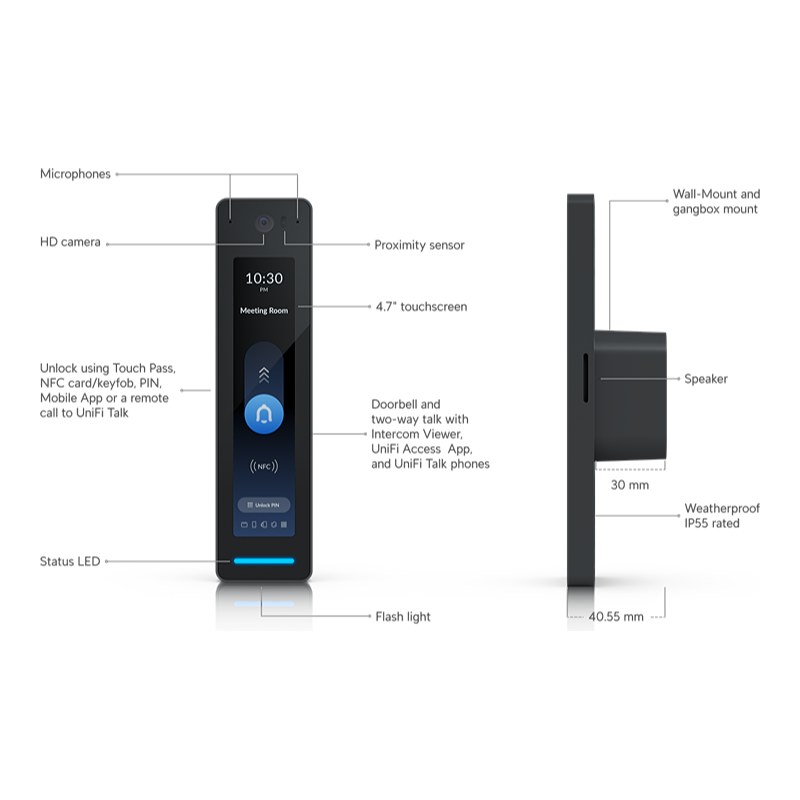

The UniFi Access Reader G3 Pro is a third-generation NFC reader and intercom designed for both indoor and outdoor use.
It supports Touch Pass technology and offers multiple unlocking methods, including NFC cards, PINs, and mobile apps.
The device also features a doorbell with video and two-way intercom functionality, ensuring secure and convenient access control.
|
|
Unlock using the NFC card, PIN, UniFi Endpoint mobile app, face unlock and Touch Pass* |
|
|
Doorbell for unlock with video of visitor and two-way intercom |
|
|
Video works at ADA-compliant mounting height |
|
|
IP55-rated weather resistance (-10 to 45° C) |
|
|
Connects to UniFi Access Hub using PoE |
|
|
*10 free 1-year Touch Passes included. Click to learn more. |
|
Specifications |
|

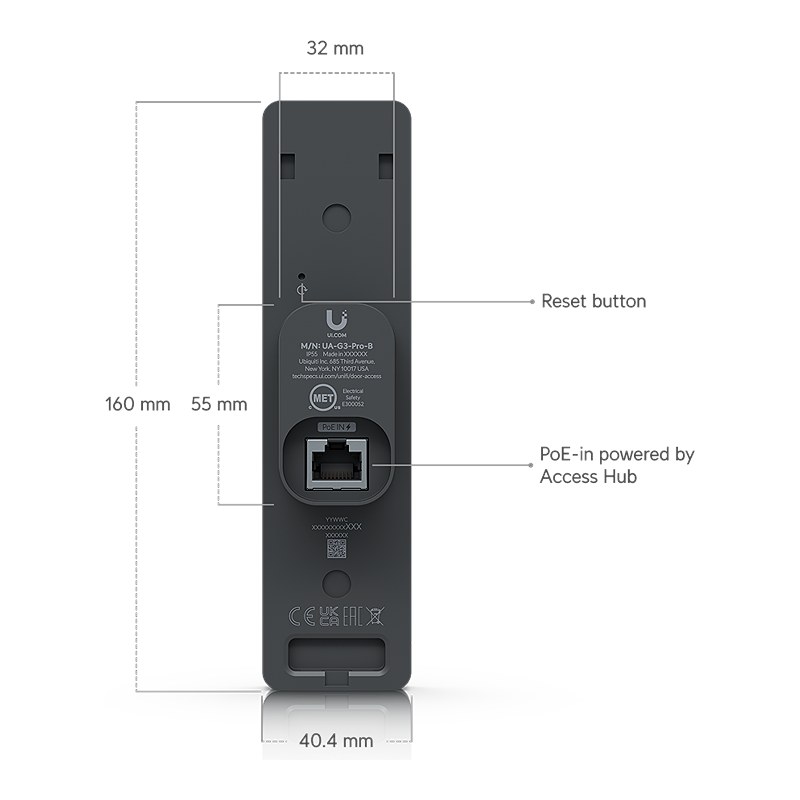

Dimensions |
160 x 40.4 x 40.55 mm |
|
Integrated Camera |
Yes |
|
UniFi Application Suite |
Protect, Access |
|
NFC Card & Keyfob Access |
Yes |
|
PIN Access |
Yes |
|
QR Code Unlock |
Yes |
|
Apple/Google Wallet |
Yes |
|
Mobile Unlock |
Yes |
|
Face Unlock |
Yes |
|
Two-Way Intercom & Doorbell Access |
Yes |
|
Weatherproofing |
IP55 |
|
Audio |
Two-way audio |
|
UL 294 Level |
Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
|
NDAA Compliant |
Yes |
|
Mechanical |
|
Weight |
136 g |
|
Enclosure Material |
Polycarbonate, glass |
|
Mount Material |
Aluminum alloy |
|
Mounting |
Wall, gang-box mount (Included), Angle mount, junction box (Optional) |
|
Hardware |
|
Indoor and Outdoor Use |
Yes |
|
Networking Interface |
(1) GbE RJ45 port |
|
Connectivity |
BLE 4.2, NFC |
|
Power Method |
PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
|
Max. Power Consumption |
6W |
|
Supported Voltage Range |
48V DC |
|
ESD/EMP Protection |
Air: ± 15kV, contact: ± 8kV |
|
Video – Max. Frame Rate |
30 FPS |
|
Video – Resolution |
2MP 1200 x 1600 (3:4) |
|
Optics – Resolution |
12 MP (3072 × 4096) |
|
Optics – Field of View |
H: 98.6°, V: 125.7°, D: 157.8° |
|
Sensors |
Proximity sensor |
|
Display – Size |
120 mm diagonal |
|
Display – Screen Technology |
Capacitive touch |
|
Display – Luminance |
480 nits (Typical) |
|
Display – Screen Orientation |
Portrait |
|
Display – Resolution |
1280 x 286 px |
|
Microphone |
Yes |
|
Speaker |
Yes |
|
LEDs |
R/G/B/W/Amber |
|
Button |
(1) Factory reset |
|
NFC Frequency |
13.56 MHz |
|
NFC Read Range |
< 30 mm |
|
NFC Technology |
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0 |
|
CAN/ULC-60839-11-1 Grade |
Grade assignment: I |
|
Certifications |
CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
|
Document number, and issue date and/or revision level |
UA-G3-Pro-W/UA-G3-Pro-B, V01 |
|
Ambient Operating Temperature |
Device: -30 to 45° C, Display: -10 to 45° C |
|
Ambient Operating Humidity |
5 to 90% noncondensing |
|
Software |
|
Management Application |
Access |
|
