Description :

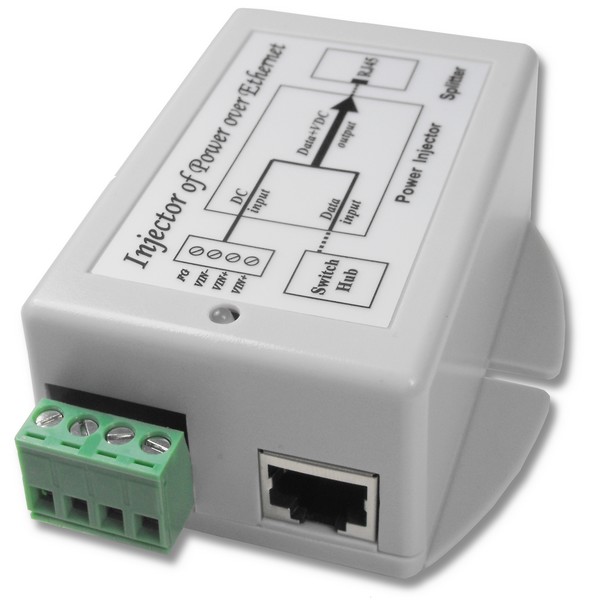

The TP-DCDC Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 18V to 48VDC Power Over Ethernet voltage from a 12 or 24V battery system.
They have an integrated POE injector to apply the 48VDC to the CAT5 Ethernet cable. The output is 48VDC from an input voltage between 9VDC and 36VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output up to 30W.
| Specifications |
| DC Input Voltage |
9VDC – 36VDC |

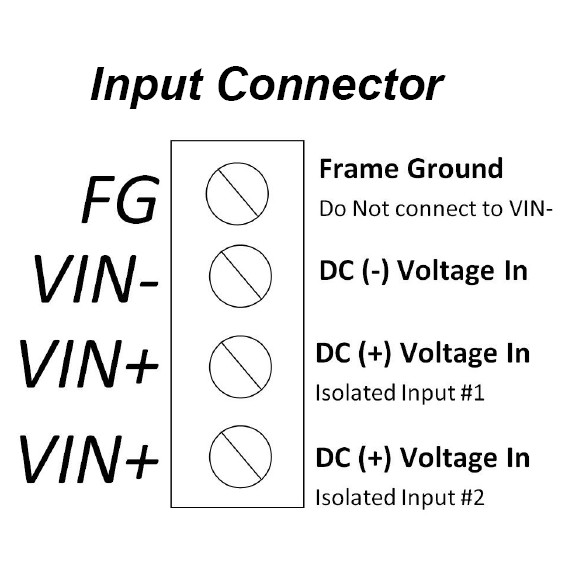

| Input Connector |
Removeable Screw Type Compression Wire Terminal (12 AWG Max) |
| DC Output Voltage (+/-2.5%) |
48V |
| Output Connector |
RJ45 (Shielded) |
| Output Current (max) |
0.5A |
| Output Power (max) |
24W |
| Efficiency (min) |
75% |
| Line Regulation |
1% |
| Load Regulation |
5% |
| Ripple |
1% |
| Noise |
1% |
| EMC Standards |
FCC Class B NE55022 Class B |
| Safety Standards |
UL1950, CSA 22.2 &TUV EN60950 |
| Operating Temperature |
-30 to +60°C (-22 to +140°F) |
| Operating Humidity |
5% - 90% |
| Storage Temperature |
-40 to +80°C (-40 to +176°F) |
| Dimensions (LxWxH) |
85 x 76 x 36mm (3.4 x 3 x 1.4”) |
| Weight |
134g (4.7oz) |
