e-zy.net » EZ-RPTNCP195

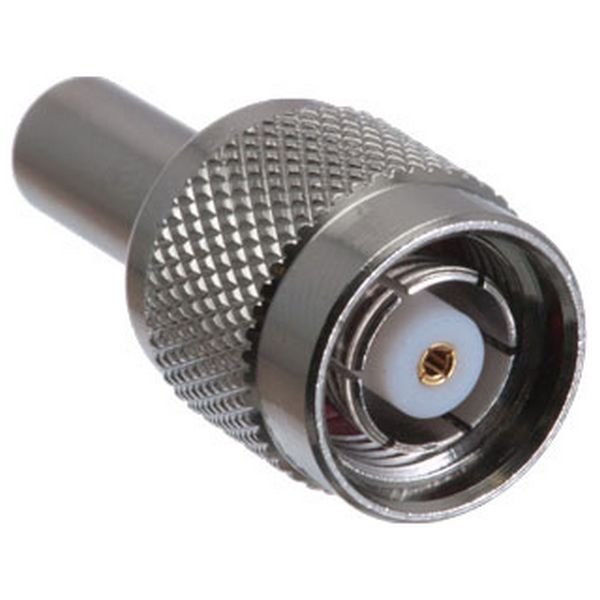

RP-TNC Plug Crimp connector for 195, RG-58 series cable
[0146][EZ-RPTNCP195]
Price: 1,33€
 Order or Qty  Price
 > 500€  5+   1,30€
 > 1000€  10+   1,28€
 > 2000€  20+   1,25€
 > 5000€  50+   1,22€
 > 10000€  100+   1,20€
Prices exclude VAT

RP-TNC Plug Crimp connector for 195, RG-58 series cable

In Stock: 234
Order Qty:

EZ-RPTNCP195

RP-TNC Plug Crimp connector for LMR-195, RG-58 cable.

Part Material Finish
Body Brass Nickel
Center Pin Bronze Gold
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a
Specifications :
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Connector
RP-TNC Plug
Female thread
Female center pin


Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
