EZ-NF2NFB, N-Type Female Bulkhead to N-Type Female Adapter
[0204][EZ-NF2NFB]

Price: 3,35€

Prices exclude VAT

In Stock: 20

Order Qty:

UPC:	728615665642

EZ-NF2NFB - N-Type Female Bulkhead to N-Type Female adapter.

Product Links:
Product Page	Datasheet

Specifications:
Connector Body	Nickel Plated
Center Pin	Gold Plated
Dielectric	Teflon
O-Ring	Silicone
Impedance	50 Ohm
Frequency Max Rate	6 GHz
Insertion Loss:	<2.5dB
Impedance	50 ohm
Frequency Range	0 to 11.0 GHz
V.S.W.R.	1.3 max
Working Voltage	1,000 volts rms
Dielectric Withstanding Voltage	2,500 volts rms
Contact Resistance (Center contact)	1.0 Milliohms max
Contact Resistance (Outer contact)	1.0 Milliohms max
Insertion Loss	< 2.5 dB
Insulation Resistance	5,000 Megohms min

Connectors:
N-Type Female Bulkhead	N-Type Female

Male thread Female center pin	Male thread Female center pin

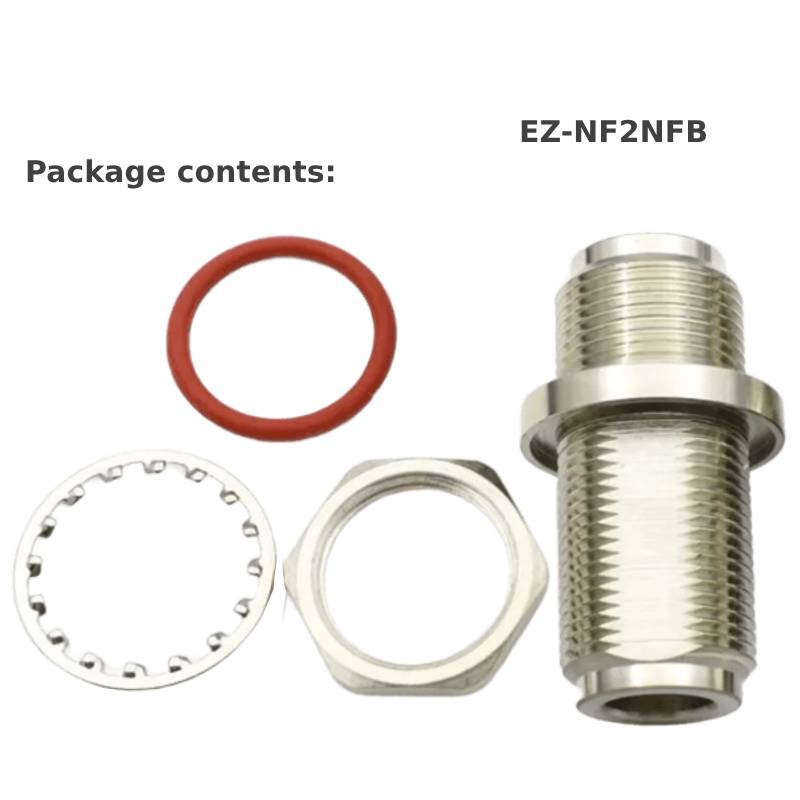

Package Contents:
1 x EZ-NF2NFB

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
