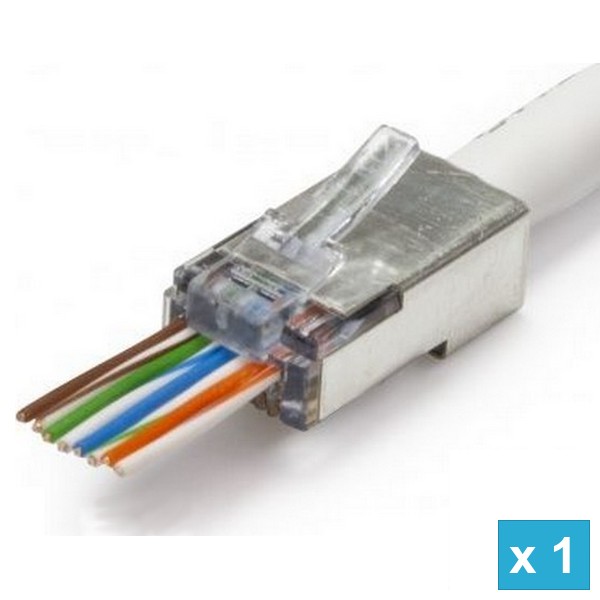

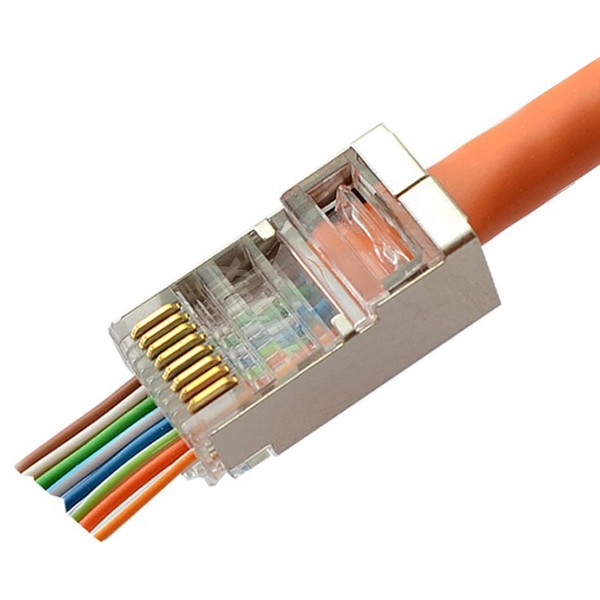

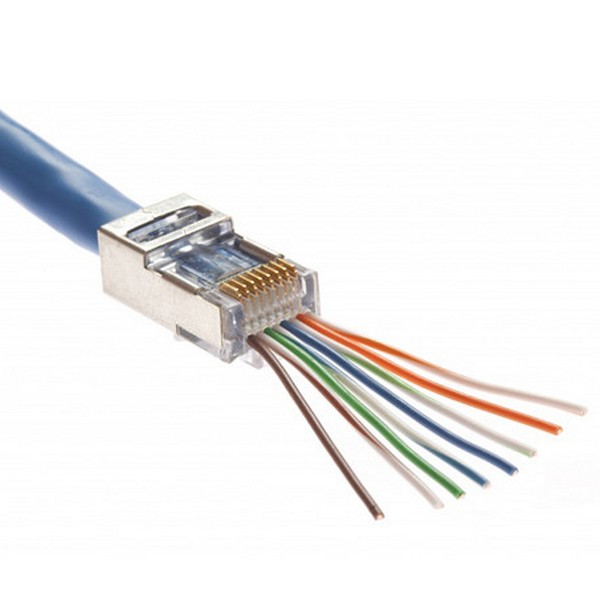

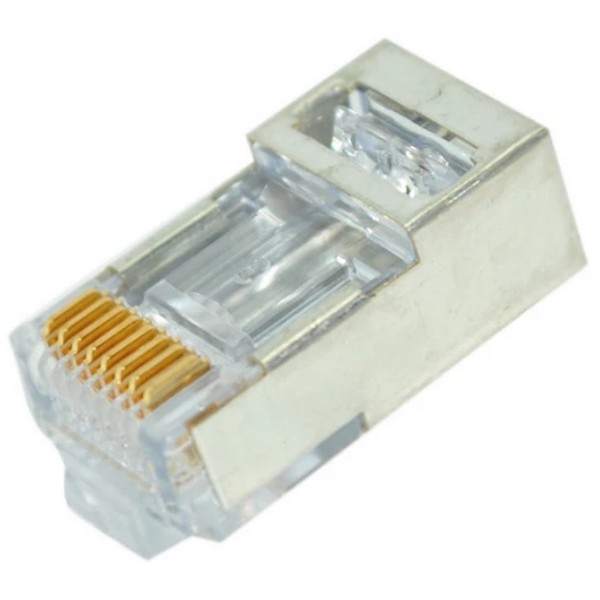

Shielded EZ-RJ456AS-PT Connectors to create cables that meet Category 5e and 6A standards.
These connectors feature a fully shielded design with an internal ground that improves noise immunity at all frequencies, especially at above 30 MHz.

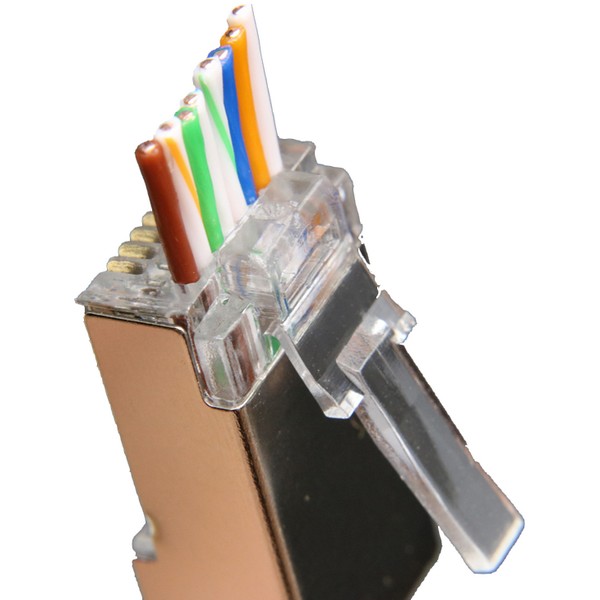

This shielded design reduces crosstalk and increases performance. To verify your termination, each connector comes outfitted with thru holes that let you pass colored networking wires through and out in the front.
In addition, these connectors are compatible with solid or stranded wires.
|
Specifications: |
|
Device: |
|
Type: |
RJ45 Cat6A Plug |
|
Style: |
Solid UTP Plug |
|
Materials: |
|
Contactl: |
Phosphor Bronze |
|
Contacts: |
Gold plated |
|
Housing: |
Polycarbonate |
|
Electrical: |
|
Contact Current Rating: |
1.5 Amps |
|
Dielectric Voltage: |
1000V AC |
|
Insulation Resistance: |
500MOhms Min |
