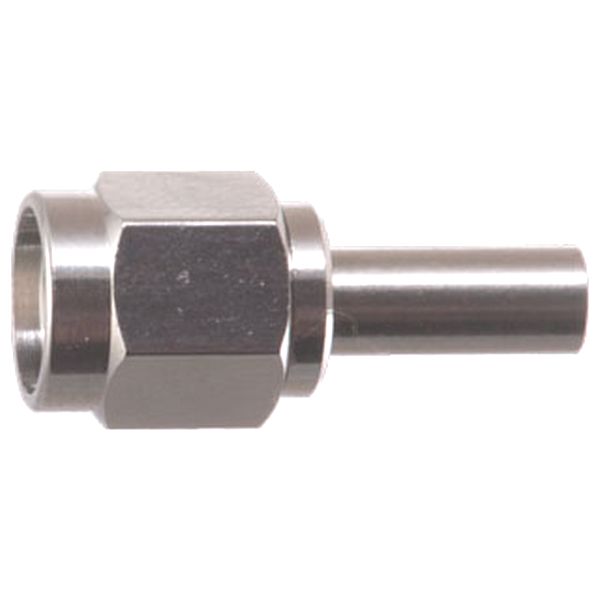

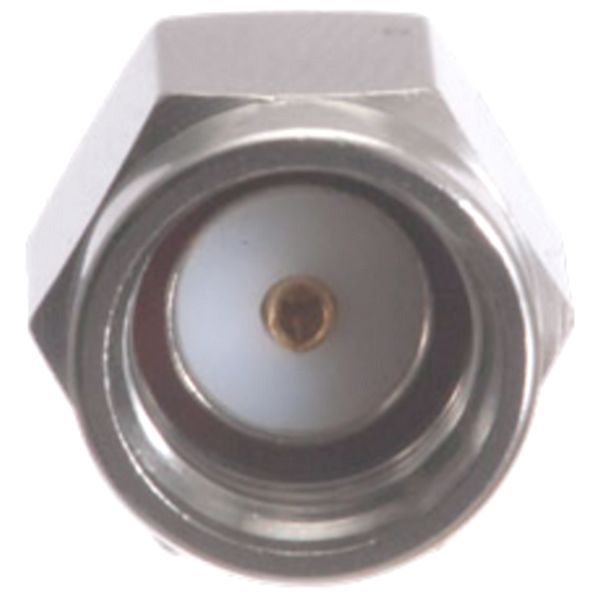

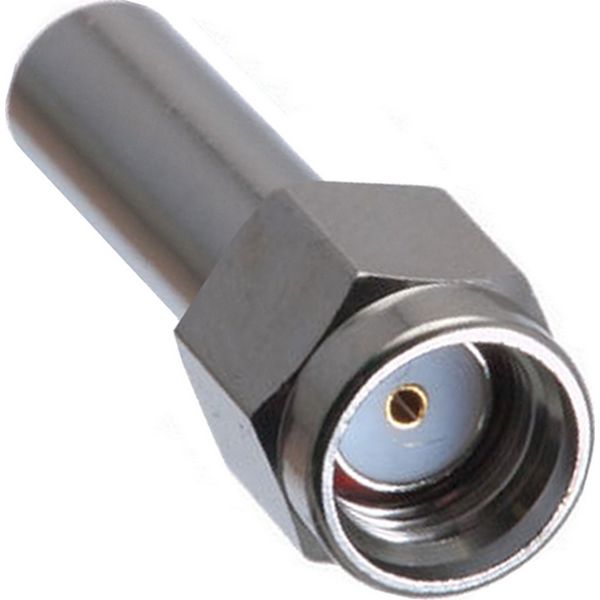

EZ-RPSMAP100 - RP-SMA Plug Crimp connector for 100, RG-174 series cable.
|

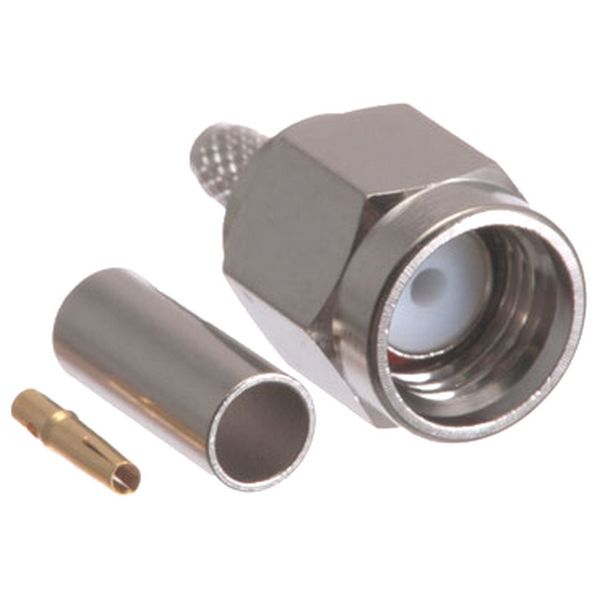

Part |
Material |
Finish |
|
Body |
Brass |
Nickel |
|
Center Pin |
Bronze |
Nickel |
|
Crimp Tube |
Annealed Copper |
Gold |
|
Dielectric |
Teflon |
n/a |
|
Specifications : |
|
Impedance |
50 ohm |
|
Frequency Range |
0 to 11.0 GHz |
|
VSWR |
1.3 max |
|
Working Voltage |
1,000 volts rms max at sea level |
|
Dielectric Withstanding Voltage |
2,500 volts rms max at sea level |
|
Contact Resistance |
center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max |
|
Insertion Loss |
0.3 dB max at 10 GHz |
|
Insulation Resistance |
5,000 Megohms min |
|
Connector |
|
RP-SMA Plug |
 |
Female thread
Female center pin |
