EZ-RJ452P-D - Cat.6, Shielded 2-Piece Connector wtih DoveTail
Shielded EZ-RJ452P-D Connectors to create cables that meet Category 5e and 6 standards.

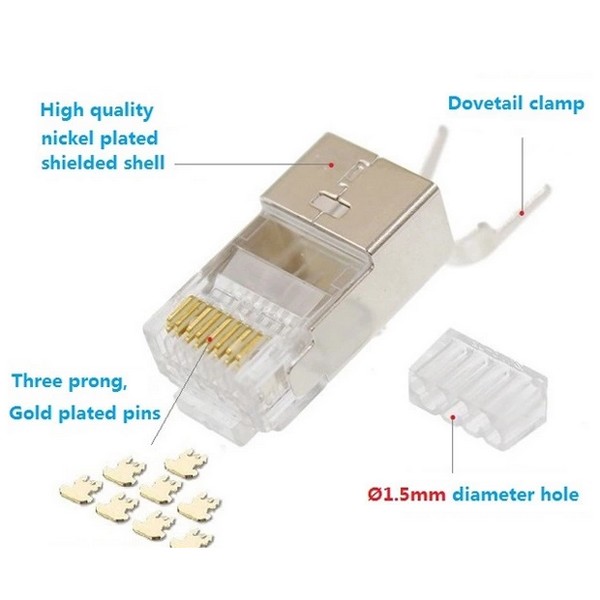

These connectors feature a fully shielded design with an internal ground that improves noise immunity at all frequencies, especially at above 250 MHz.
|
Specifications: |
|
Device: |
|
Type: |
RJ45 Cat.6 Plug |
|
Style: |
STP Plug |
|
Materials: |
|
Contactl: |
Phosphor Bronze |
|
Contacts: |
Gold plated |
|
Housing: |
Polycarbonate |
|
Electrical: |
|
Contact Current Rating: |
1.5 Amps |
|
Dielectric Voltage: |
1000V AC |
|
Insulation Resistance: |
500MOhms Min |
