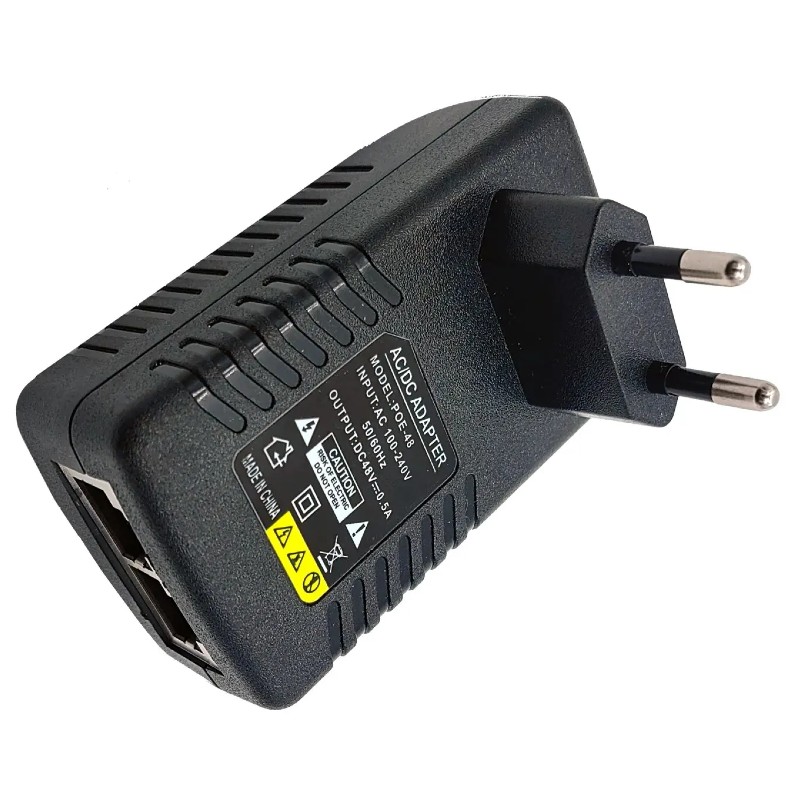

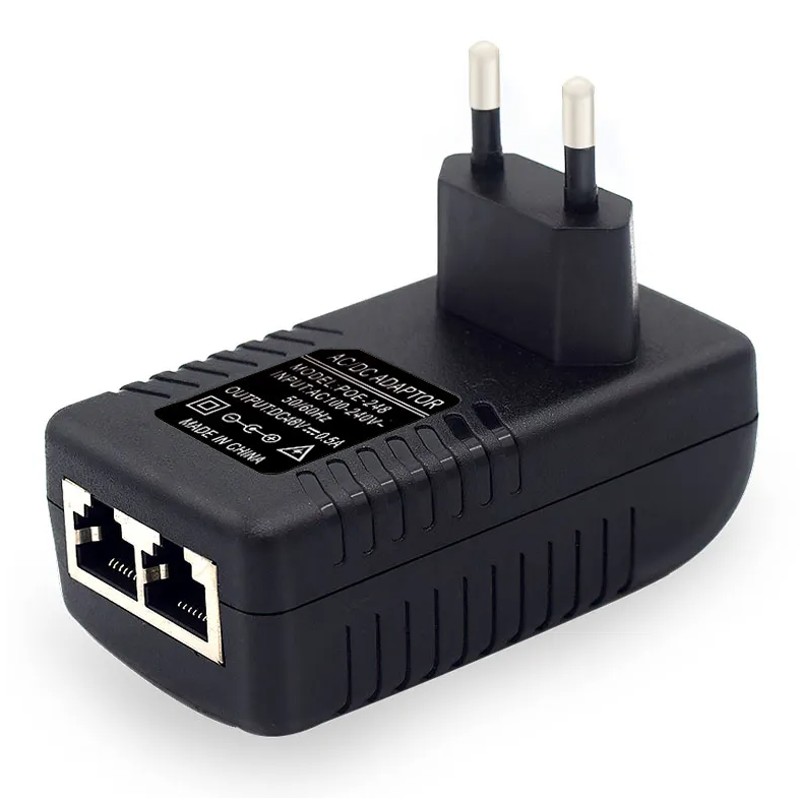

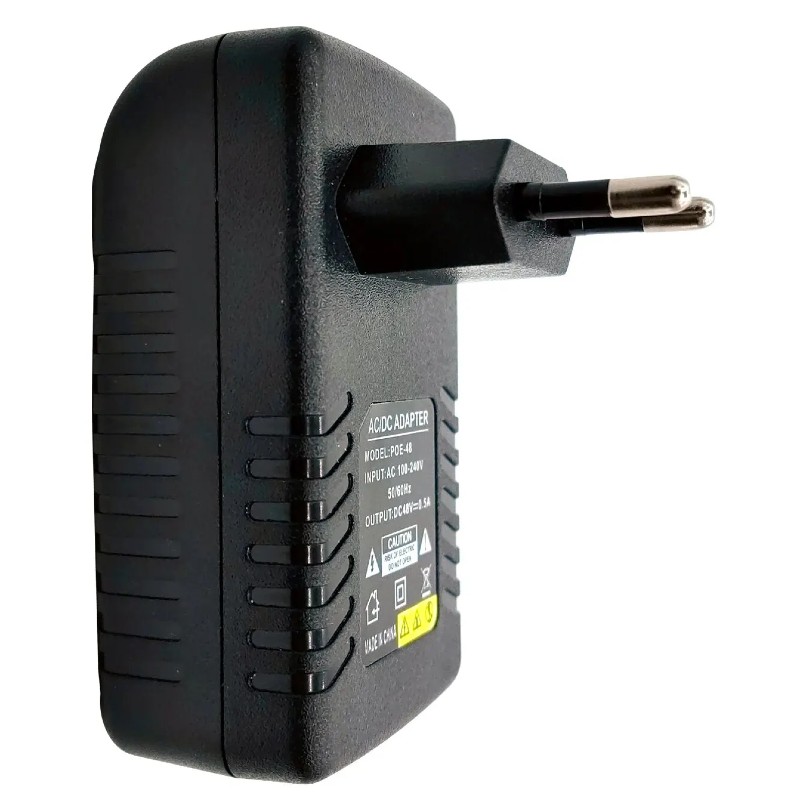

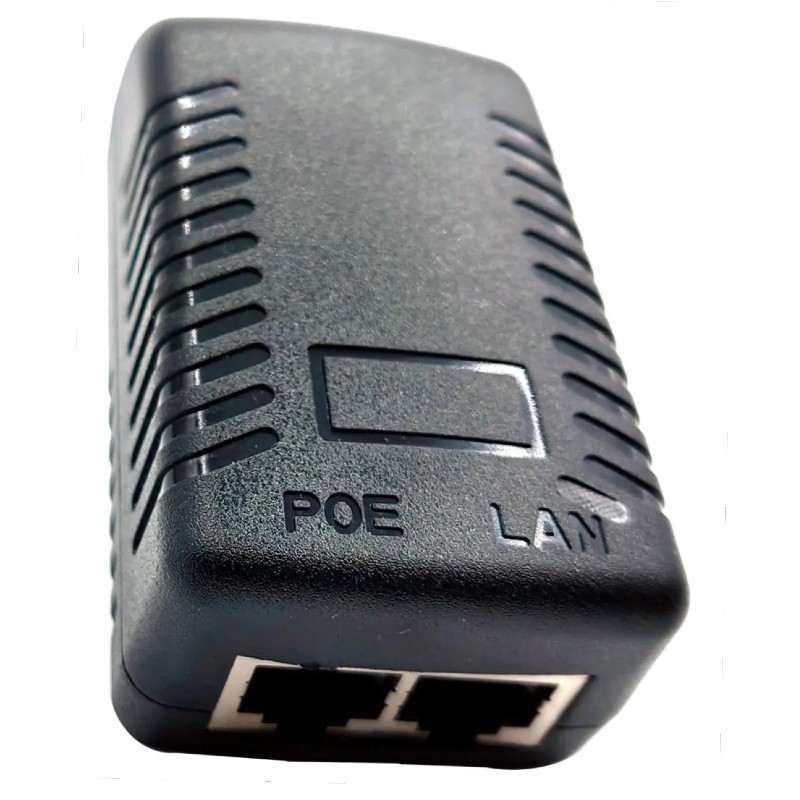

POE-48-EU - 48V 0.5A / 24W 10/100M Power Supply and PoE Injector - WALLPLUG
Output: 48V DC / 500mA
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Origin: China
|
Specifications: |
|
Input Condition |
AC100~240V 50/60Hz 0.6A max |
|
Input Rated Voltage |
100Vac~200Vac |
|
Input Voltage Rate |
90Vac~264Vac |
|
Input Rated Frequency |
50/60Hz |
|
Input Frequency Range |
47Hz~63Hz |
|
Input Current |
0.6A Max |
|
Input Inrush Current |
30A Max |
|
Input No Load Power Consumption |
0.5 Watt Max @ 115Vac/230Vac |
|
Efficiency |
80% Min |
|
Rated Output Voltage & Current |
48v/0.5A |
|
Output Line Regulation |
+-1% |
|
Output Load Regulation |
+-5% |
|
Output Over Shoot |
10% Max |
|
Output Ripple and Noise |
1% Max |
|
Output Rising Time |
20ms Max @ 115Vac |
|
Output Hold-Up Time |
8ms Min @ 230Vac |
|
Protection |
OCP OVP SCP OPP |
|
Dielectric Withstand Voltage |
3KV 5mA 60s |
|
Leakage Current |
0.25mA @ 230Vac |
|
Dimension |
35x73x53mm |
|
Operating Temperature Range |
0oC ~ +40oC |
|
Storage Temperature Range |
-20oC ~ +85oC |
