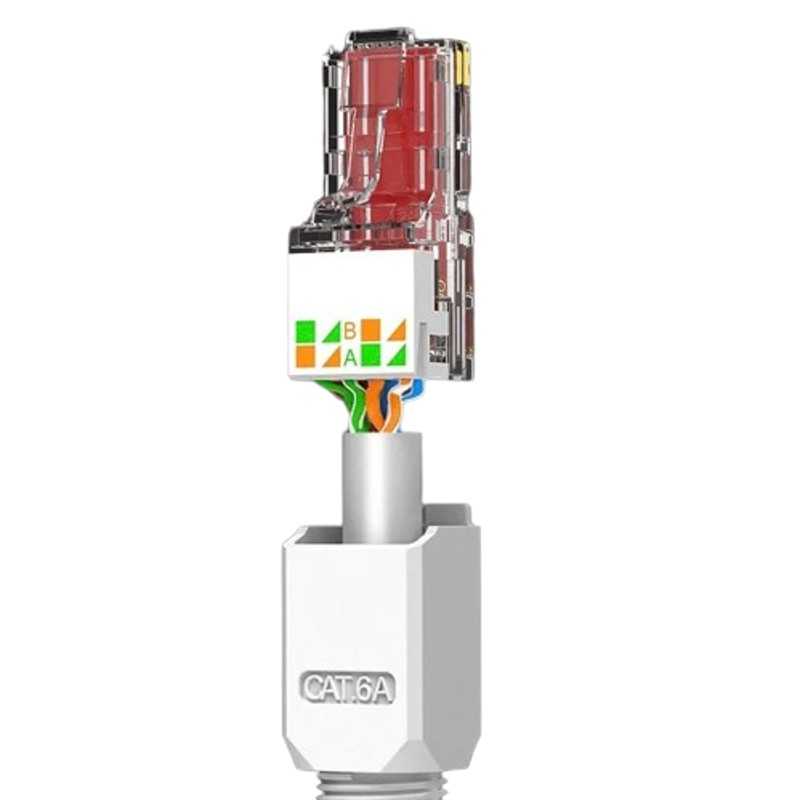

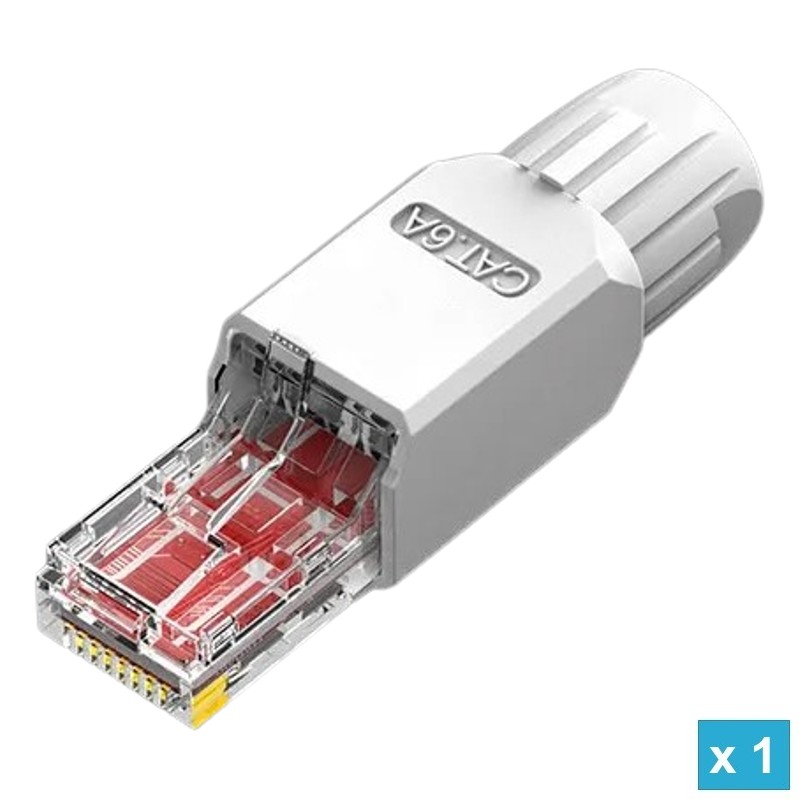

EZ-RJ456AUTW - Cat.6A, RJ45 unshielded Connector, Tool Free

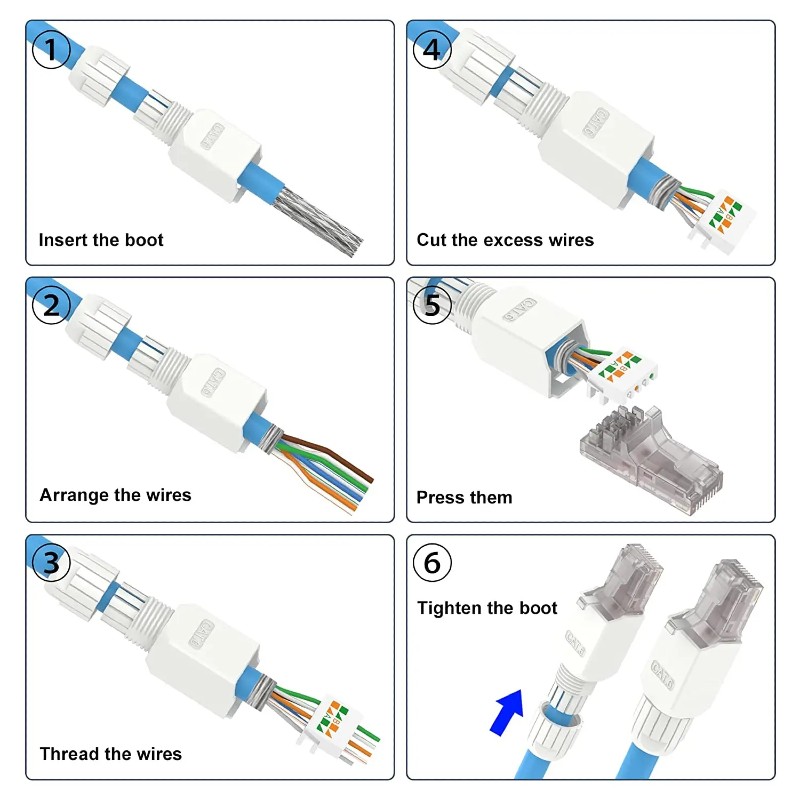

Easy Assembly - terminate in field in minutes without special tools

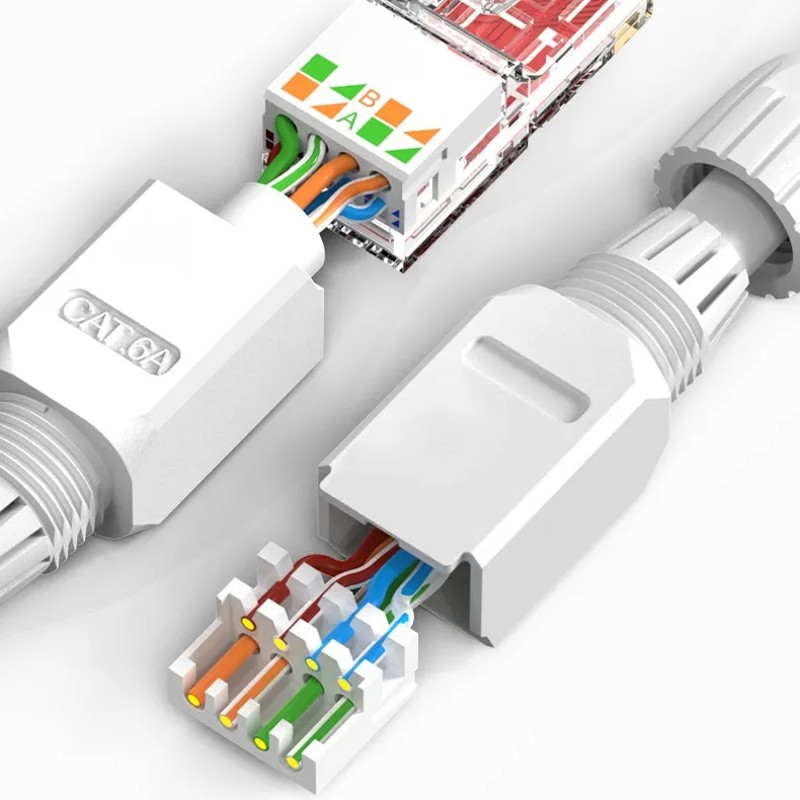

Load Bar for Faster and Easier Wire Pattern Termination
|
Specifications : |
|
Wire Diameter |
1.035 έως 1.35 mm |
|
Transmission |
Cat.6 ISO/IEC11801, TIA568.2-D, EC verified |
|
Complies with |
DIN EN 50173-1:2011-09 10 Gbit |
|
Wiring code |
T568A or T568B |
|
Color |
White |
|
Shielded |
No |
|
Power Over Ethernet |
PoE, PoE plus, and UPoE |
|
Cable Jacket Diameter |
7 to 9.5 mm |
|

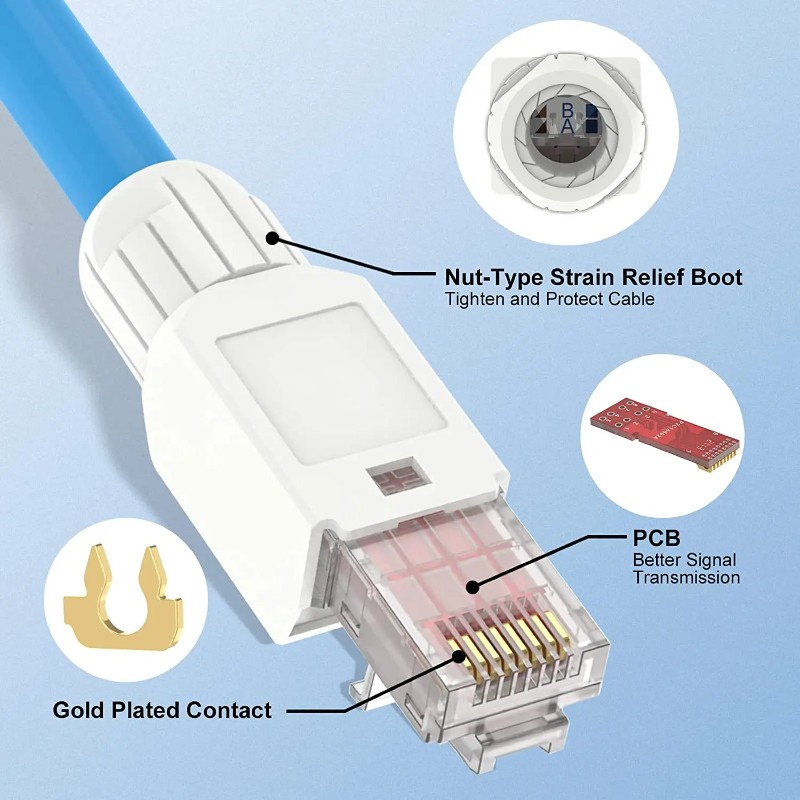

Adjustable Strain Relief |
7mm to 9.5mm Cable outside diameter |
|
Operating temperature |
-40 ~ +60°C |
|
Relative humidity |
85% (+30°C), Air pressure: 70-106Kpa |
|
Contact Blades |
Phosphor bronze alloy, 50µ gold plated |
|
Intermediate resistance |
No more than 20 megohm |
|
Insulated resistance |
No less than 1,000 megohm |
|
Retention strength |
7.7kg between jack and plug |
