EZ-RJ45CPL-W2, Waterproof Ethernet Coupler System, IP67, Cat.5e Black
[3242][EZ-RJ45CPL-W2]

Price: 2,18€

Order or Qty		Price
> 500€	5+	2,14€
> 1000€	10+	2,09€
> 2000€	20+	2,05€
> 5000€	40+	2,01€
> 10000€	100+	1,96€

Prices exclude VAT

In Stock: 5

Order Qty:

UPC:	728615667691

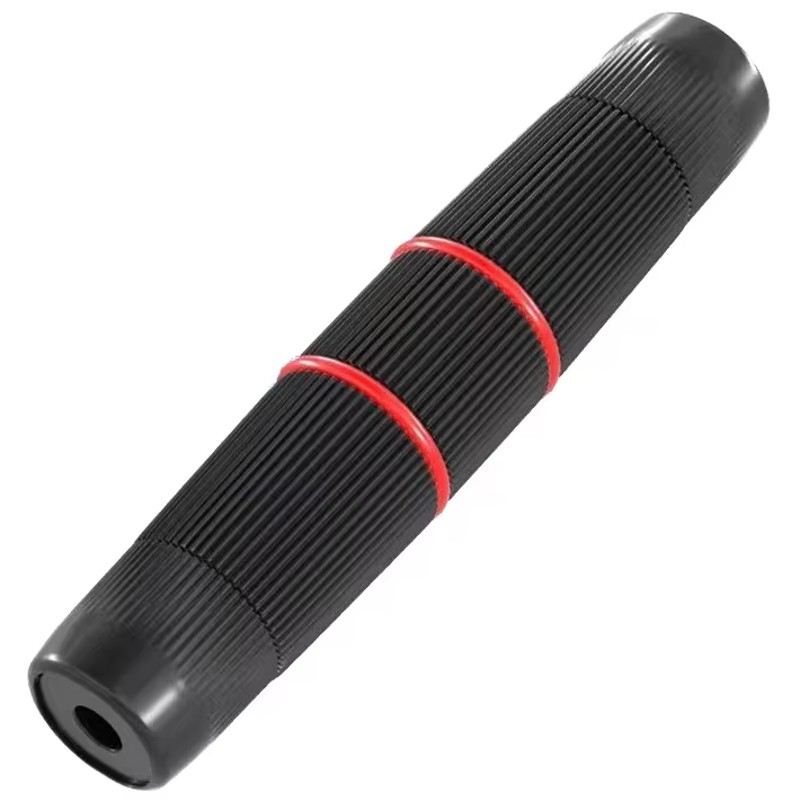

The Patent Pending EZ-RJ45CPL-W2 coupler connector system exclusively from e-zy.net is a field replaceable outdoor rated and shielded Ethernet connection system for high speed networks up to Cat.5e specs.

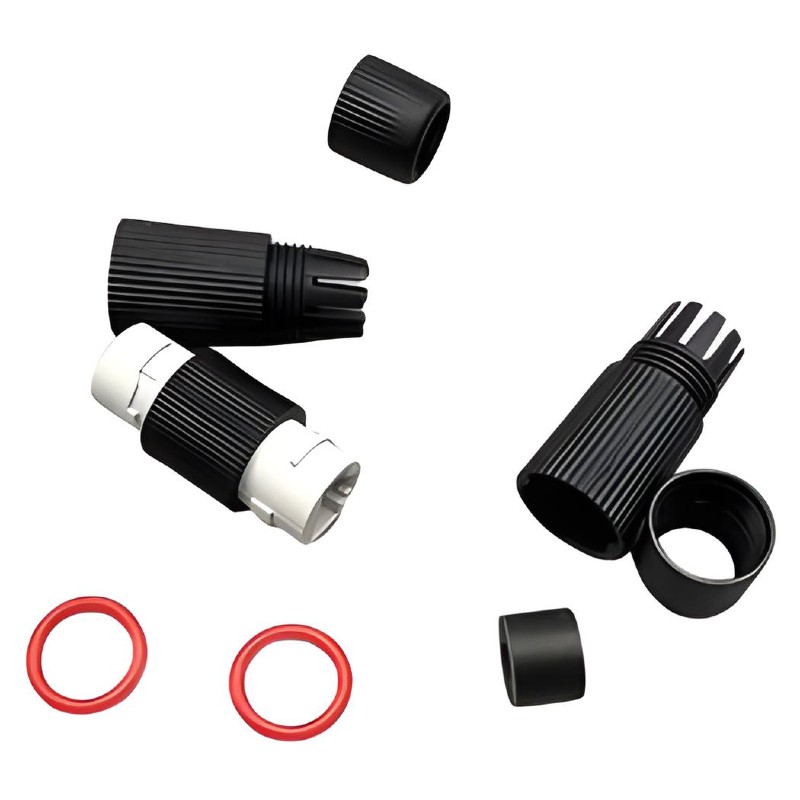

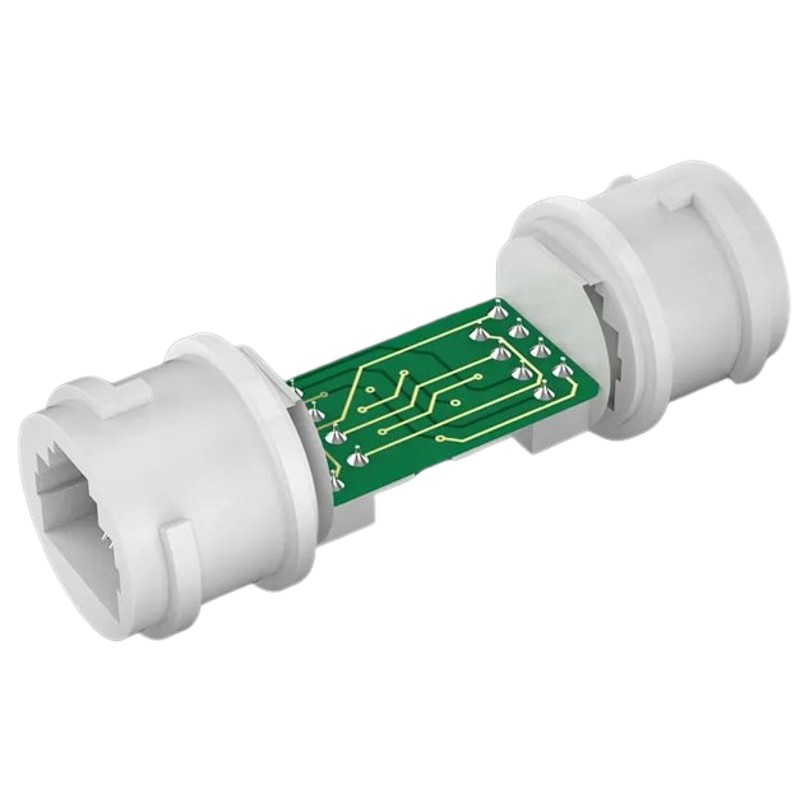

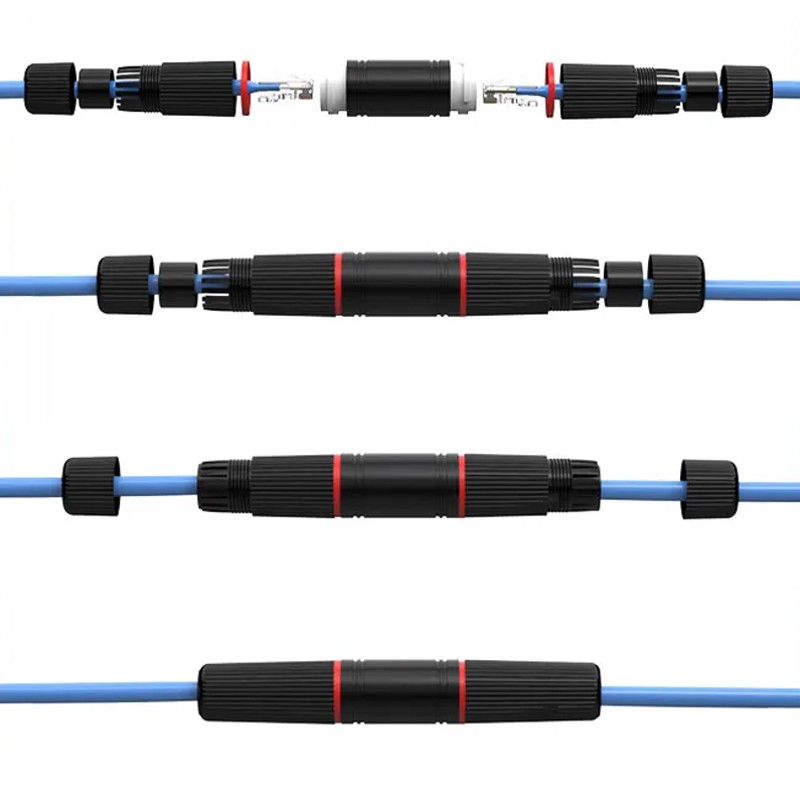

The system features a shielded RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP67 requirements.

The system provides for quick and easy disconnect and reconnect of equipment.

Because of its many unique design features and low cost, the EZ-RJ45CPL-W2 is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required.

These include outdoor applications such as wireless equipment or video surveillance equipment and indoor applications such as equipment used in factory automation or harsh industrial processes.

Specifications:
Part #	EZ-RJ45CPL-W2
Ports	2 x RJ45 Cat.5e
Material	UV PA66 nylon
Protection	IP67
Operating Temperature	-40°C - 105°C
Color	Black

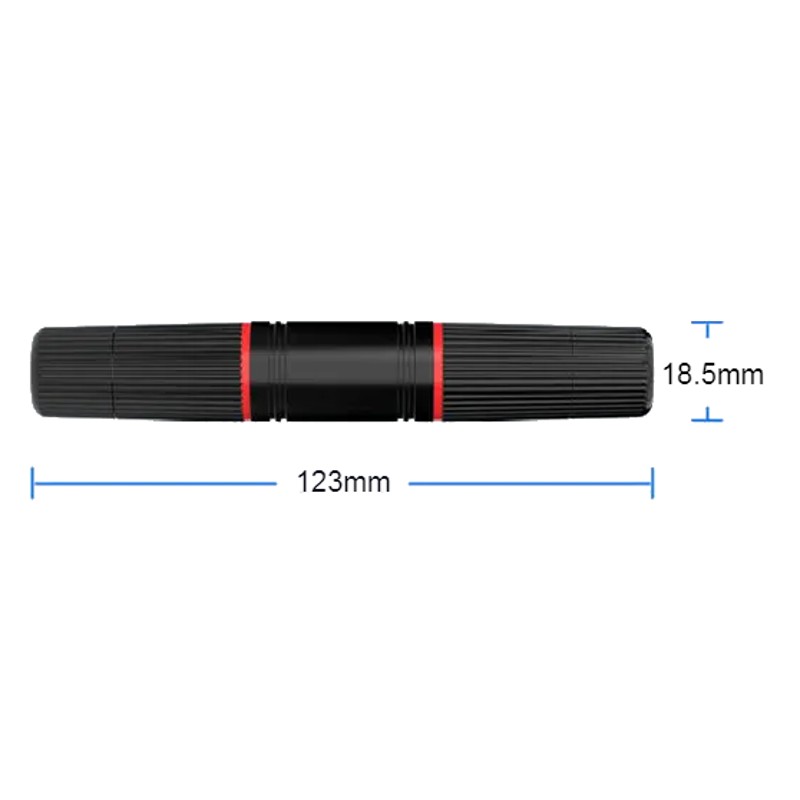

Dimensionts	123x18.5x18.5mm
Weight	26g

Package Contents:
1 x EZ-RJ45CPL-W2

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
