EZ-RDDBR07IRS - 7dBi 2.4/5Ghz Dual Band Swivel OMNI Antenna - RP-SMA Male / Plug Connector - Black/Red
The new OMNI Directional Dual Band Antenna is made of TPEE Material with steel base, provides broad coverage and 8 dBi @ 5Ghz / 6dBi @ 2.4Ghz gain, and is available with an integrated RP-SMA plug Connector.
The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.
It is only 19cm in length and is available with RP-SMA Male / Plug Connector (Female thread / Female center pin.)
|
Specifications: |
|
Frequency Range |
2400Μhz - 2483Mhz
4900Mhz - 6100Mhz
|
|
Gain |
8dBi @ 5Ghz
6dBi @ 2.4Ghz
|
|
Ver Beamwidth |
50° |
|
Hor Beamwidth |
360° |
|
VSWR |
1.5:1 |
|
Impedance |
50 |
|
Input power |
10 Watt |
|
Operating Temperature |
-10°C - +70°C |
|
Connector |
RP-SMA Male / Plug |
|
Weight |
27gr |
|

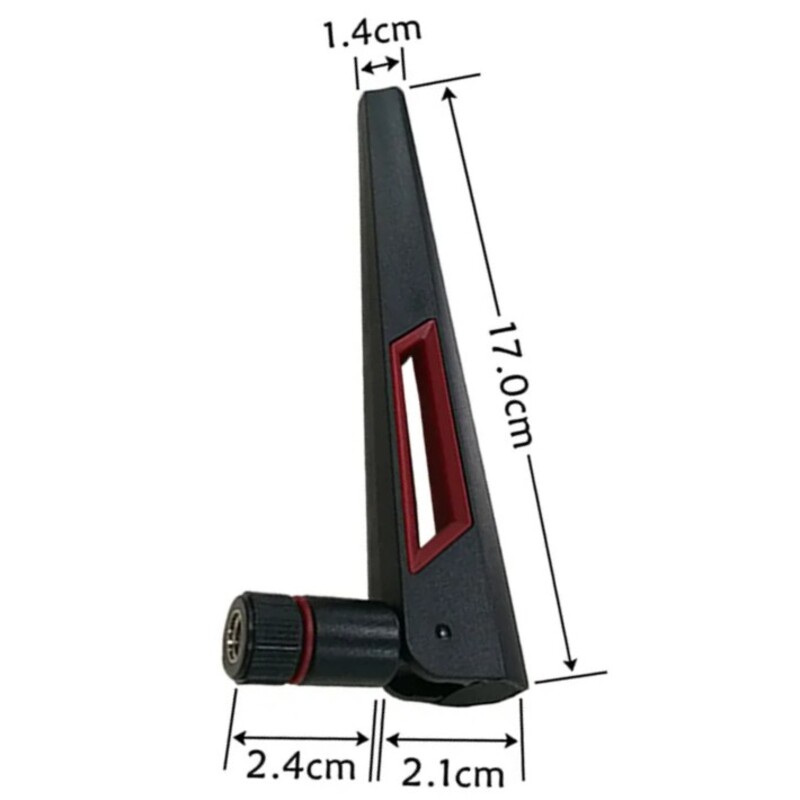

Dimensions |
195 x 25 x 15mm |
|
Connector |
RP-SMA
Male / Plug |
 |
Female thread
Female center pin |
