Aerial.net :: EZ-P4805, 48v 24W 10/100M Power Supply + PoE Injector 50cm cable

e-zy.net » EZ-P4805

EZ-P4805, 48v 24W 10/100M Power Supply + PoE Injector 50cm cable
[3573][EZ-P4805]

Price: 4,96€

Prices exclude VAT

No Stock

Order Qty:

UPC:	728615668995

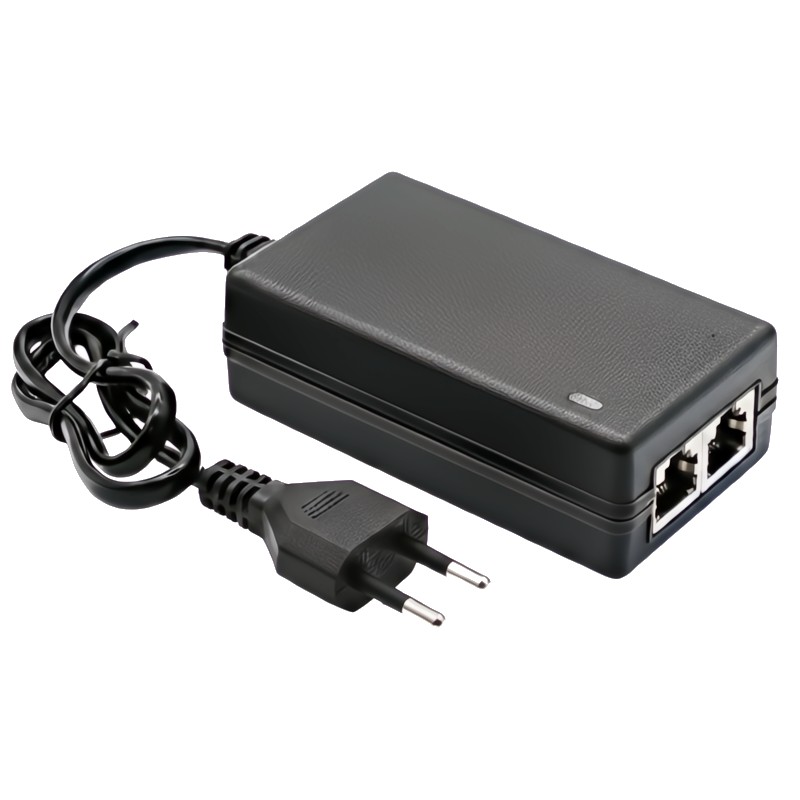

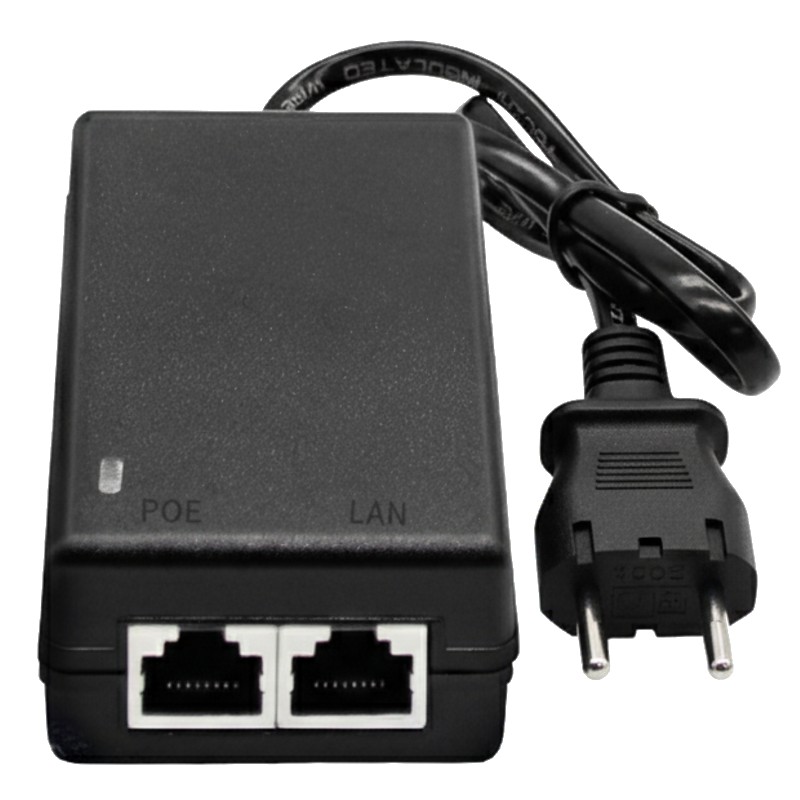

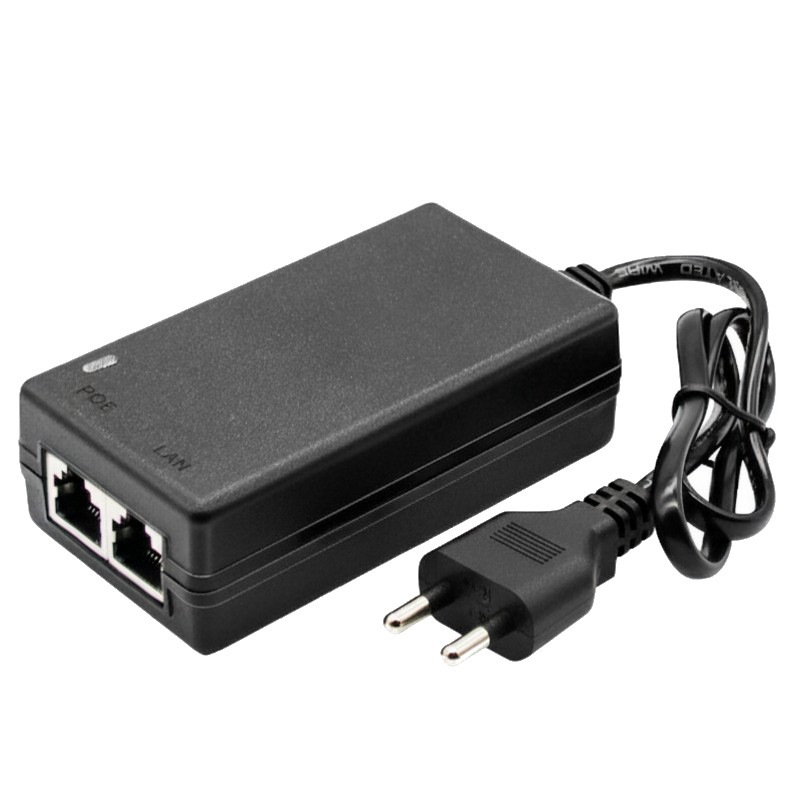

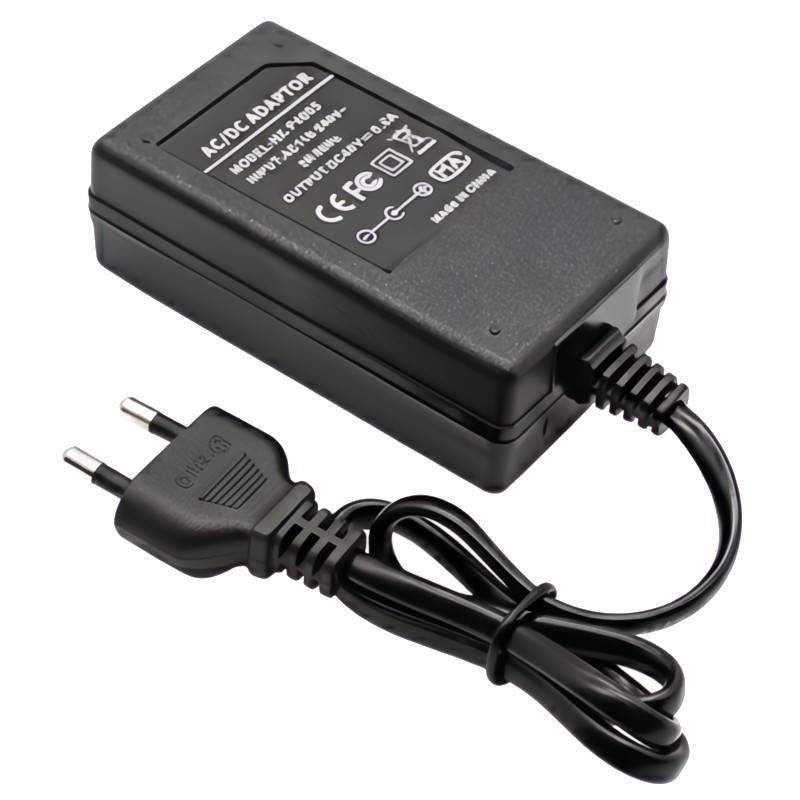

EZ-P4805 - 48V/0.5A 24W 10/100M Power Supply and PoE Injector - 50cm cable

Output: 48V DC / 500mA
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Origin: China

Powering	Mode	(+)Pins	(-)Pins
2-Pair	B	4,5	7,8

Specifications:
Input Condition	AC100~240V 50/60Hz 0.6A max
Input Rated Voltage	100Vac~200Vac
Input Voltage Rate	90Vac~264Vac
Input Rated Frequency	50/60Hz
Input Frequency Range	47Hz~63Hz
Input Current	0.6A Max
Input No Load Power Consumption	0.5 Watt Max @ 115Vac/230Vac
Efficiency	80% Min
Rated Output Voltage & Current	48v/0.5A
Output Line Regulation	+-1%
Output Load Regulation	+-5%
Output Over Shoot	10% Max
Output Ripple and Noise	1% Max
Output Rising Time	20ms Max @ 115Vac
Output Hold-Up Time	8ms Min @ 230Vac
Protection	OCP OVP SCP OPP
Dielectric Withstand Voltage	3KV 5mA 60s
Leakage Current	0.25mA @ 230Vac

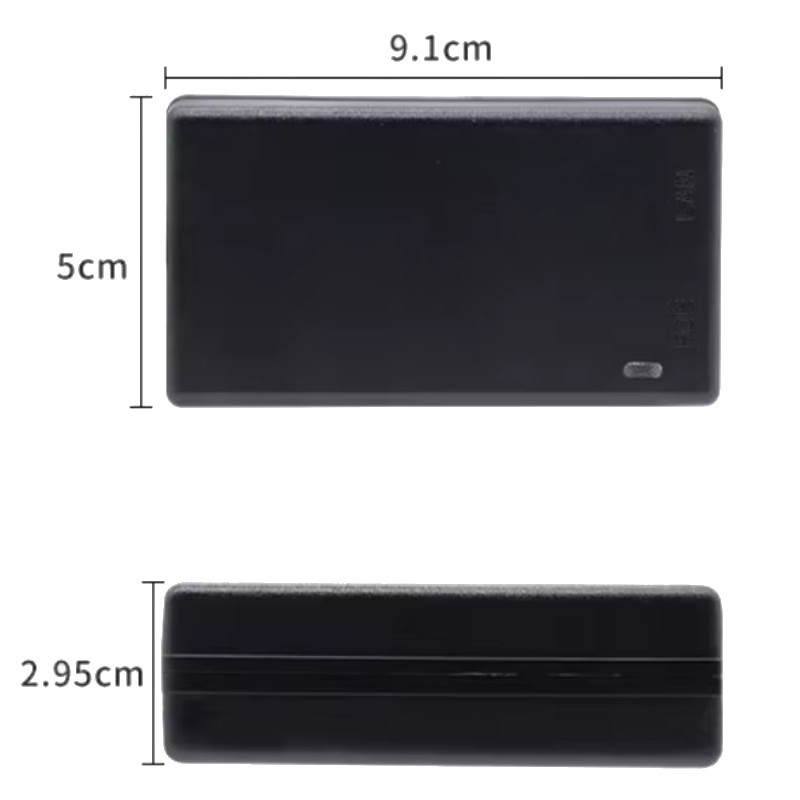

Dimension	91x50x30mm
Operating Temperature Range	0^oC ~ +40^oC
Storage Temperature Range	-20^oC ~ +85^oC
