FSPOE100E, Outdoor Gigabit Ethernet Surge Protector
[3574][FSPOE100E]

Price: 9,60€

Order or Qty		Price
> 500€	5+	9,41€
> 1000€	10+	9,22€
> 2000€	20+	9,02€
> 5000€	40+	8,83€
> 10000€	100+	8,64€

Prices exclude VAT

No Stock

Order Qty:

UPC:	728615669008

FSPOE100E is a low cost 100/1000Mbps Network POE Lightning/Surge 10KA protector to help protect equipment from surges due to lightning and grid power fluctuations.

It protects all 8 pins with 7.5V clamp voltage on the data wires and 70V clamp voltage on the POE power wires.

It has an all metal case for EMI suppression.

16AWG ground wire.

Product Links:
Datasheet

Specifications:
Operating Voltage	Data 5V ; POE up to 5-57V
Clamping Voltage	7.5V Data (Pins 1,2,3,6) - 70V POE (Pins 4,5,7,8)
Max Surge Discharge Current	10KA (8/20us)
Peak Pulse Current	100A (10/1000us)
Protection Mode	Differential & Common Mode L-L, L-G
Insulation Resistance	>1000 MOhm
Shunt Capacitance	< 25 pF
Data Rate	100/1000 Mbps
Response Time	<5 ns
Operating Temperature	-20°C to +60°C
Storage Temperature	-20°C to +80°C
Operating Humidity	0% to 95% non condensing

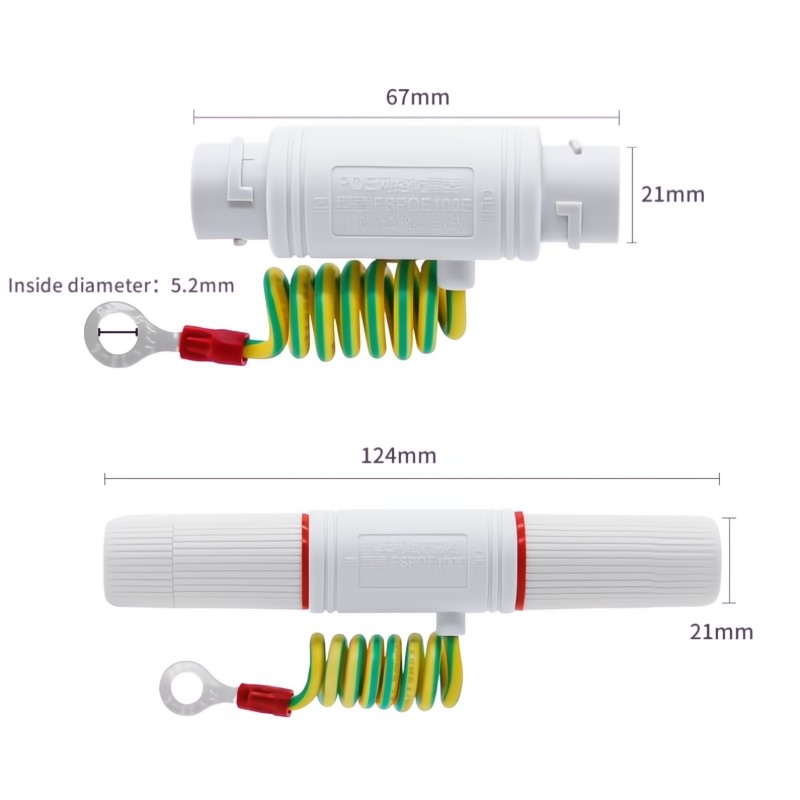

Size (L x W x H)
Weight	68g
Ground Wire	26cm
Connectors	RJ45 Jacks
IEC Standard	61000-4-5, 61643-21
IEEE/ ANSI Standard	C62.45
