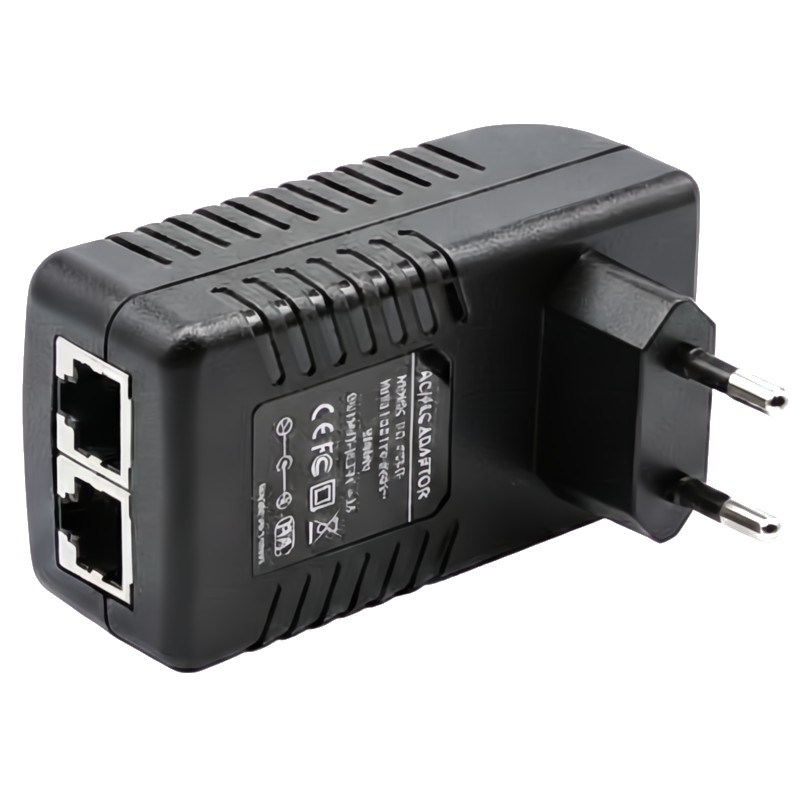

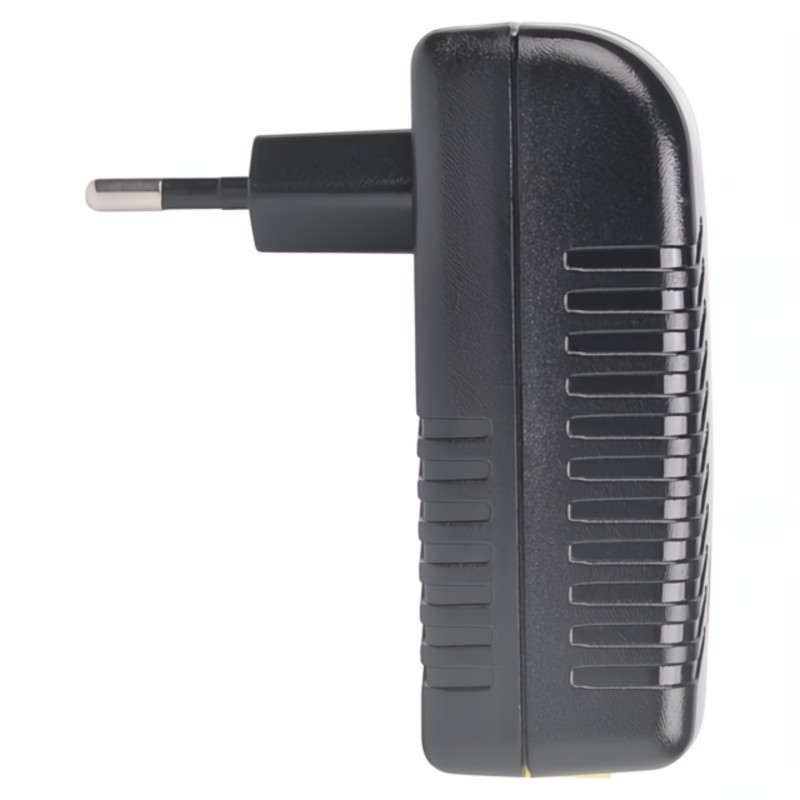

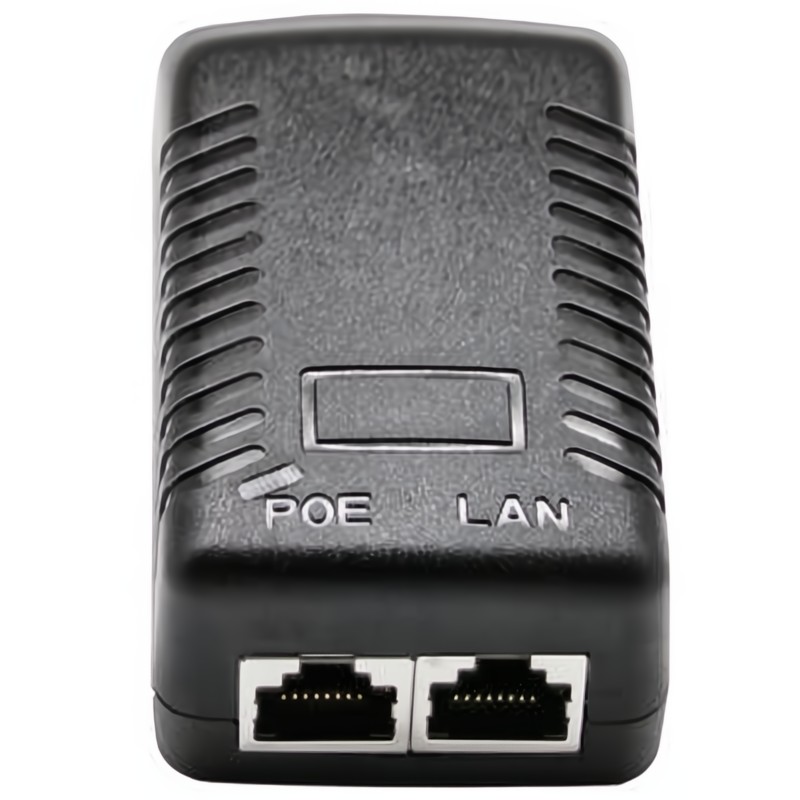

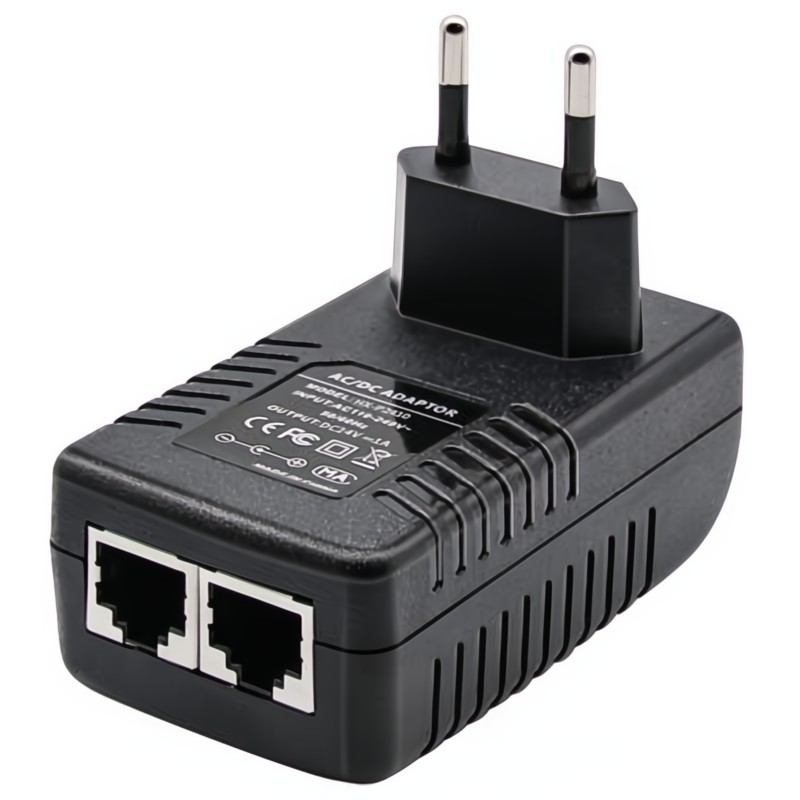

HX-PA4805, 48v 24W 10/100M Power Supply + PoE Injector - Wallplug
[3641][HX-PA4805]
Price: 4,98€
 Order or Qty  Price
 > 500€  5+   4,88€
 > 1000€  10+   4,78€
 > 2000€  20+   4,68€
 > 5000€  40+   4,58€
 > 10000€  100+   4,48€
Prices exclude VAT

HX-PA4805, 48v 24W 10/100M Power Supply + PoE Injector - Wallplug
In Stock: 50
Order Qty:
UPC:728615669244

HX-PA4805 - 48v 24W 10/100M Power Supply + PoE Injector - WallplugOutput: 48V DC / 500mA

Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Origin: China

Product Links:
Datasheet Datasheet

Specifications:
Part # HX-PA4805
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 48v/0.5A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac
Dimension 35x73x53mm
Operating Temperature Range 0oC ~ +40oC
Storage Temperature Range -20oC ~ +85oC

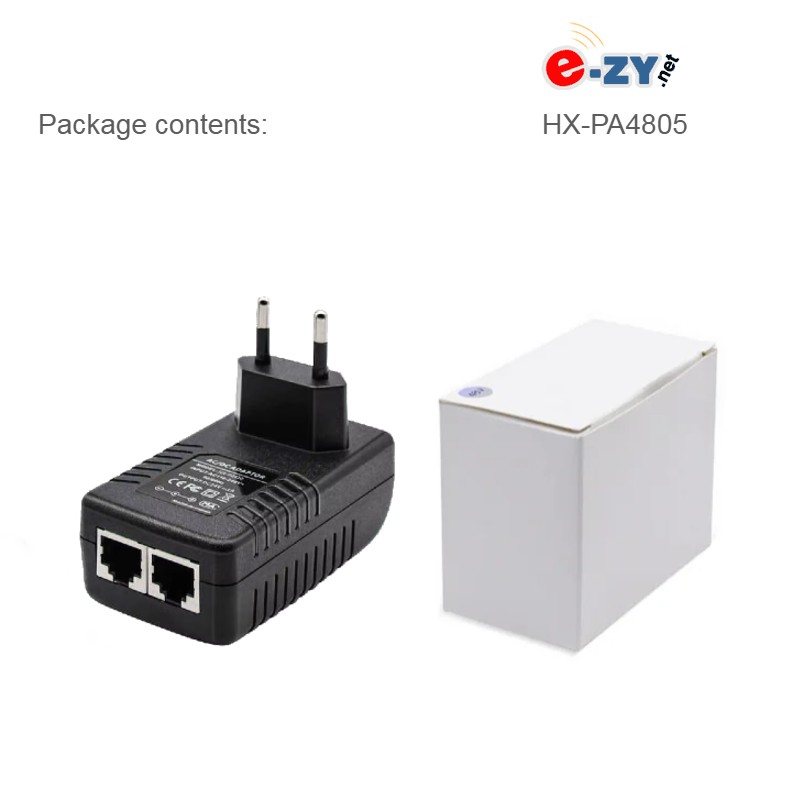

Package Contents:
1 x HX-PA4805
